Electric Luxury Vintage Trains
Home > Products > Luxury Vintage Trains / LX > Electric Luxury Vintage Trains
Home > Products > Luxury Vintage Trains / LX > Electric Luxury Vintage Trains

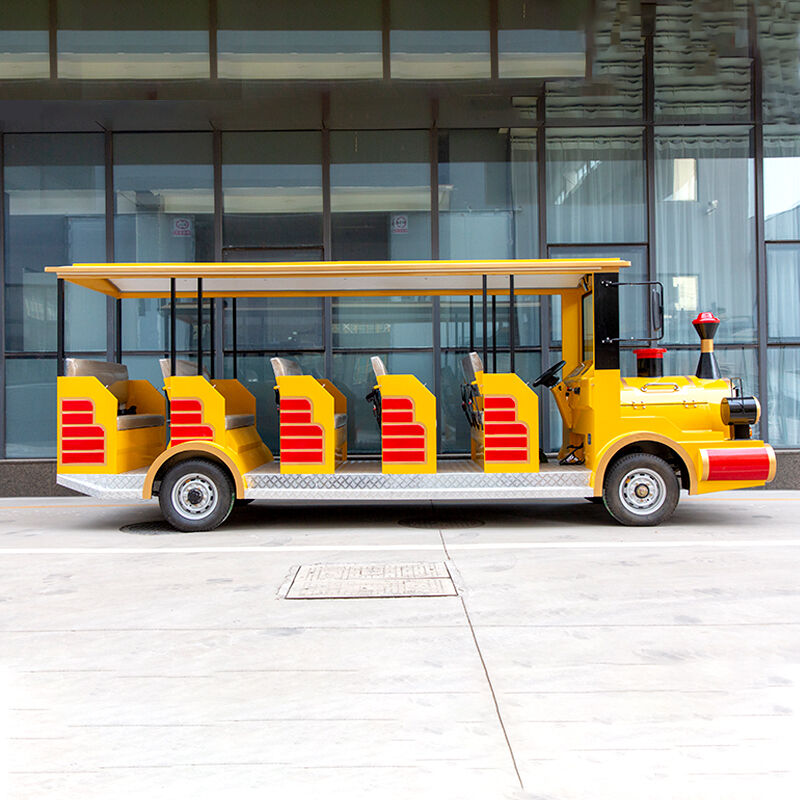

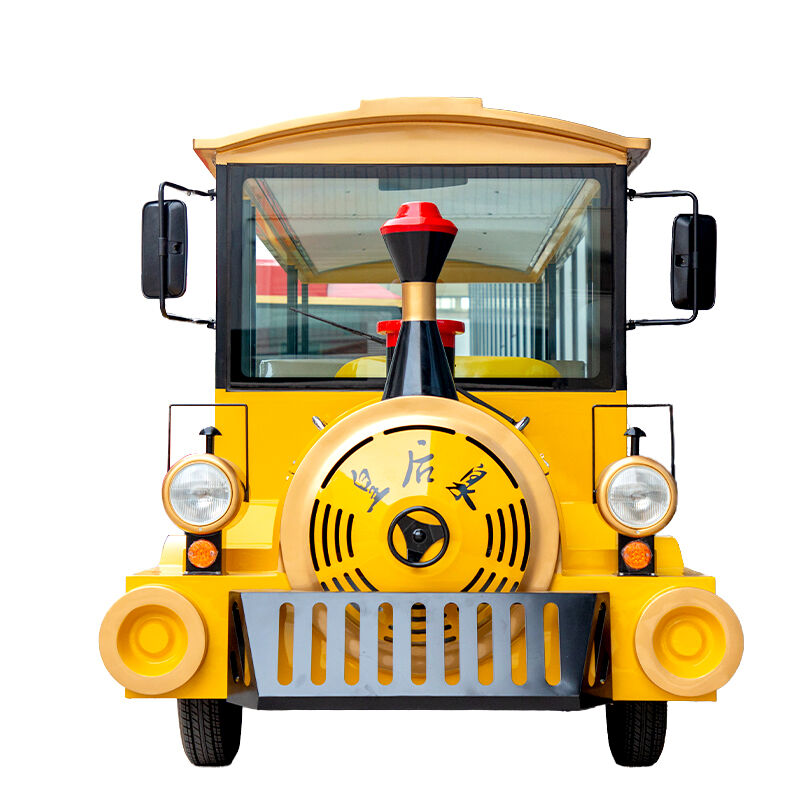

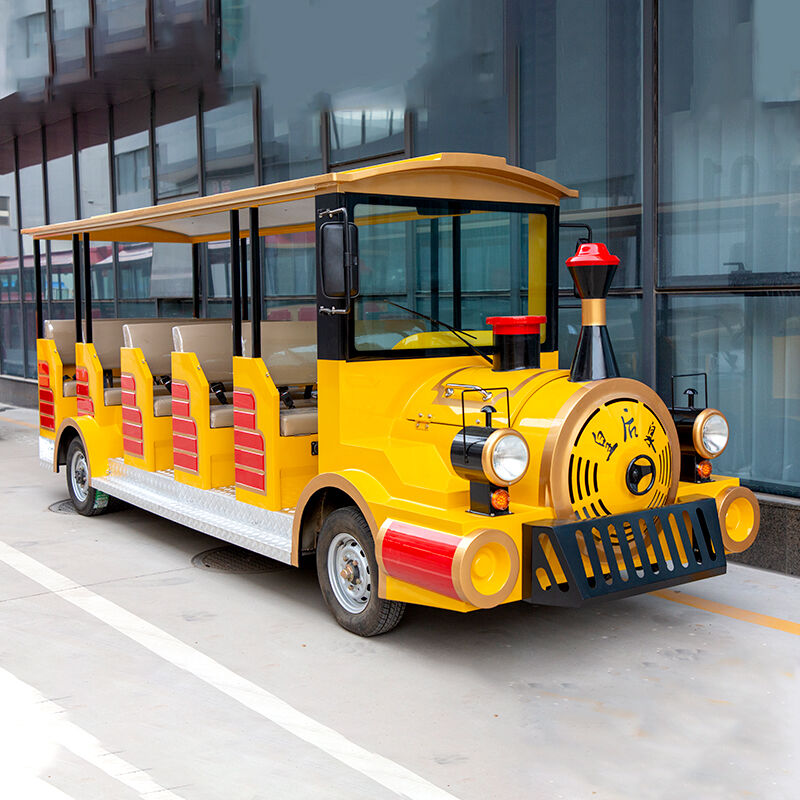

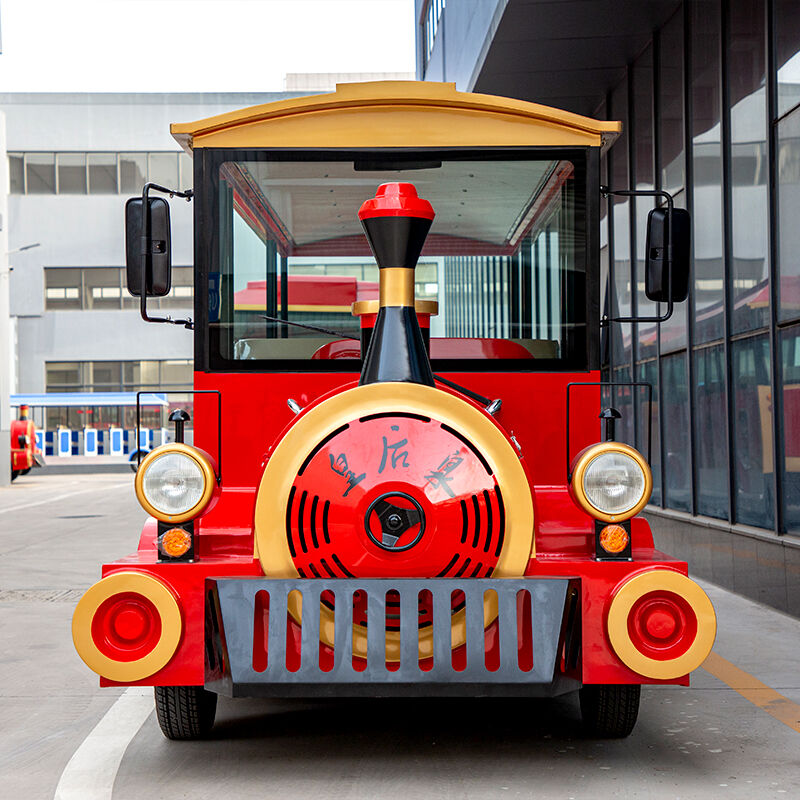

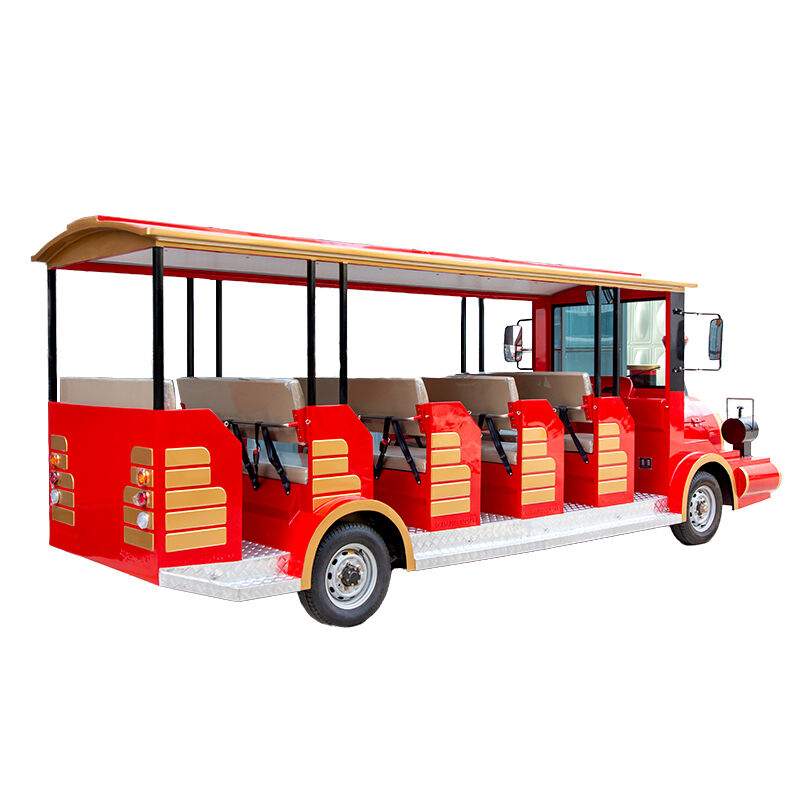

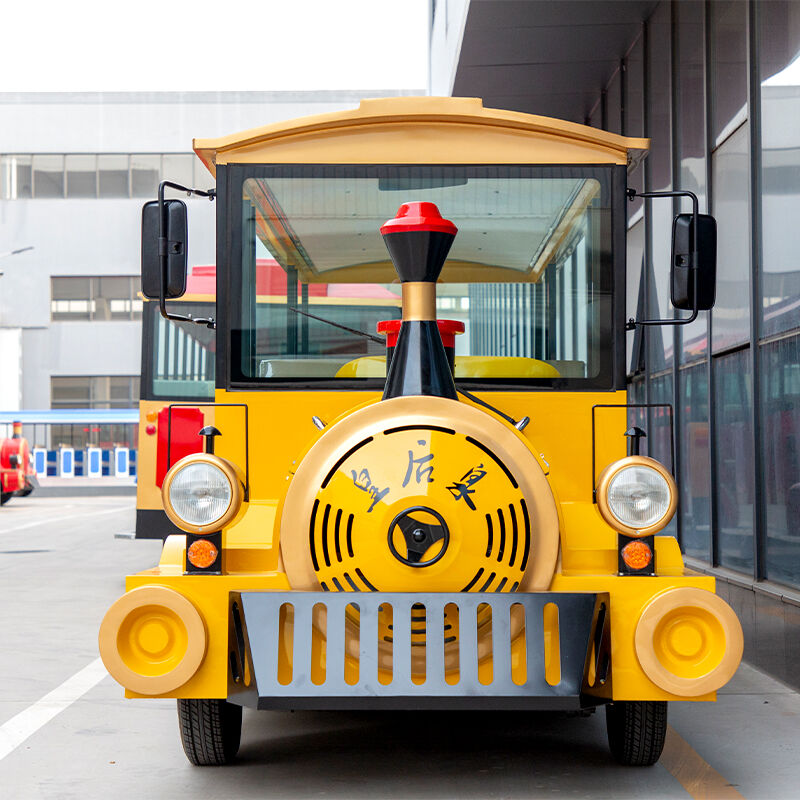

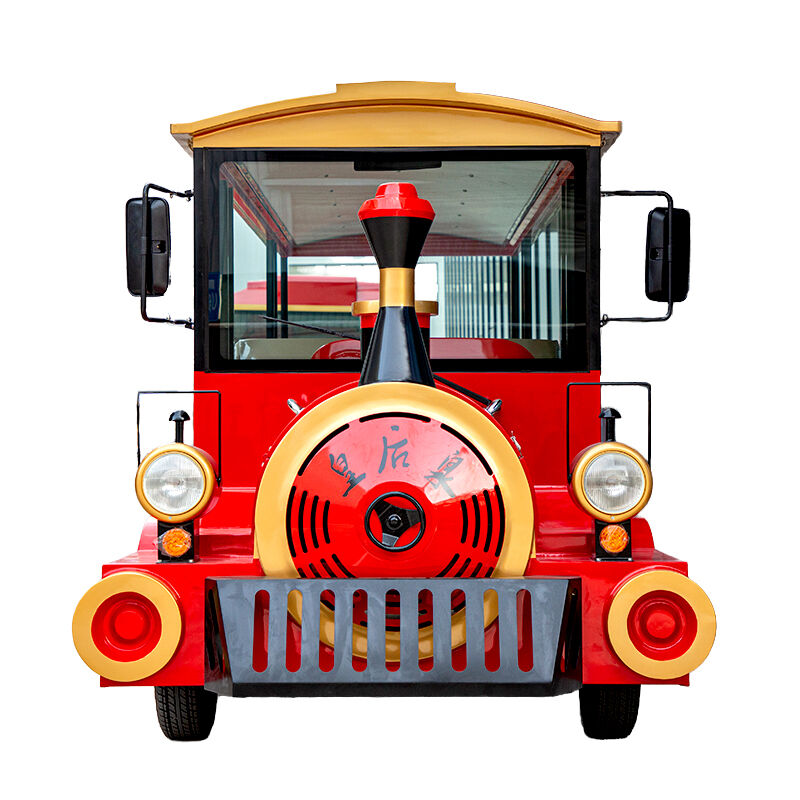

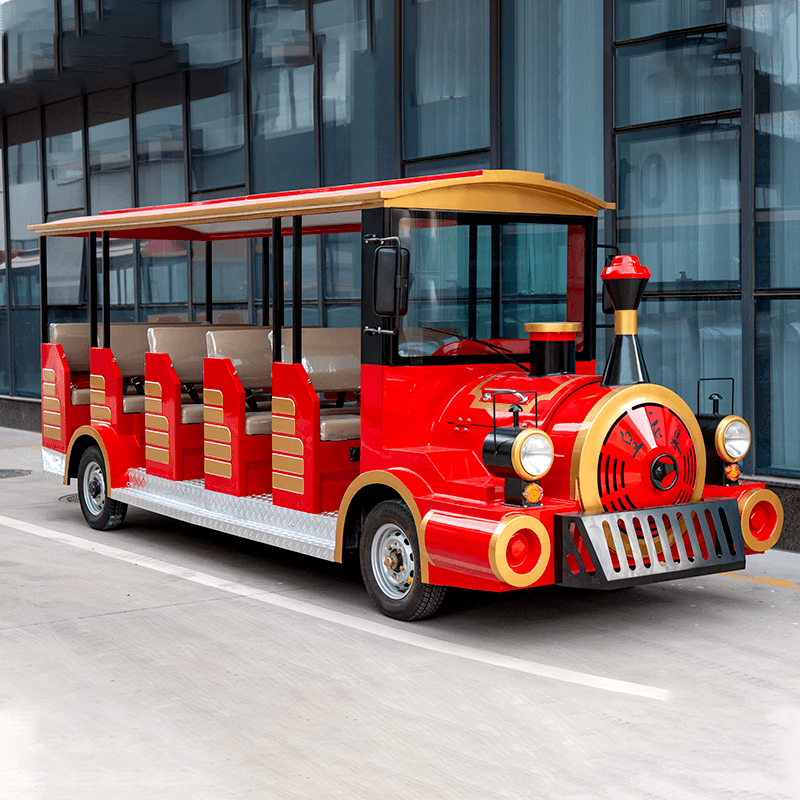

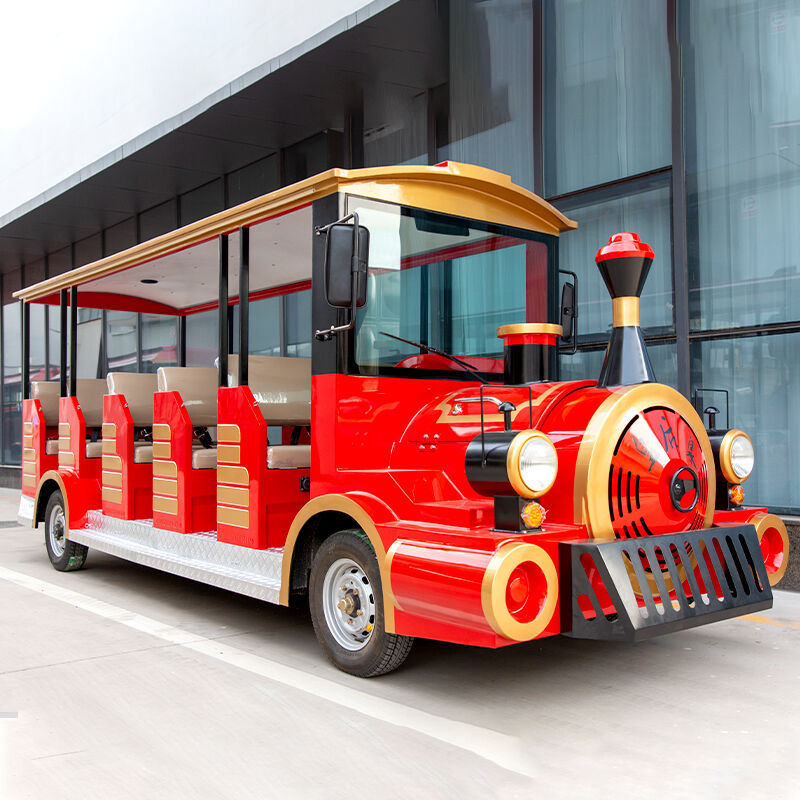

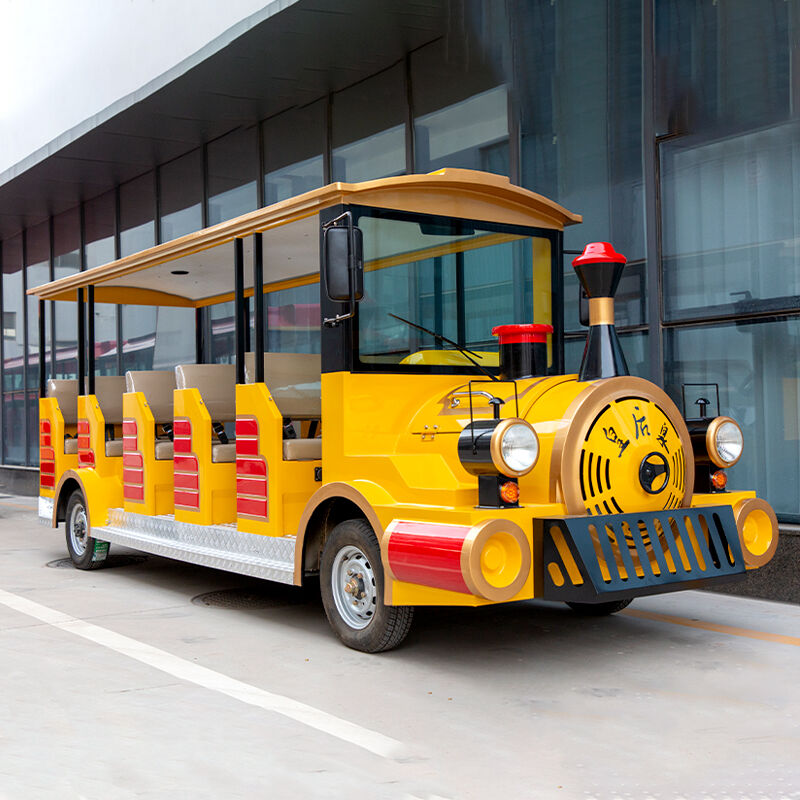

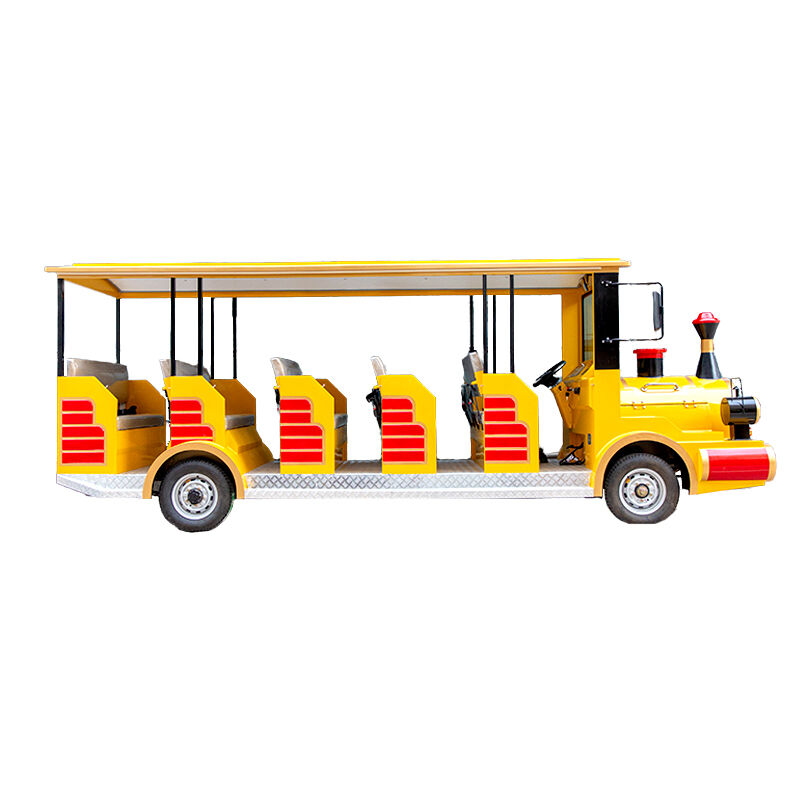

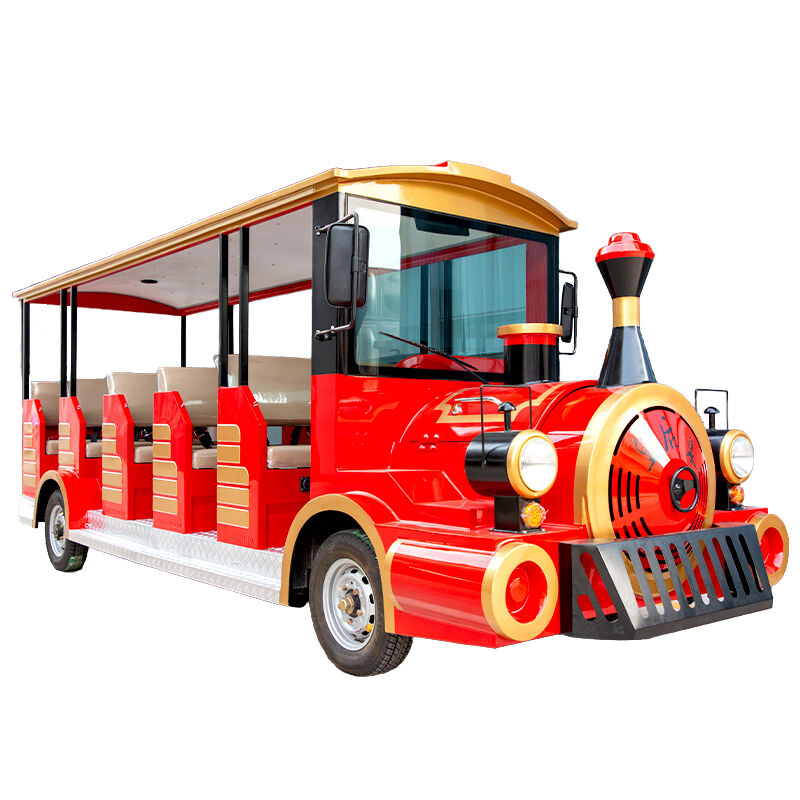

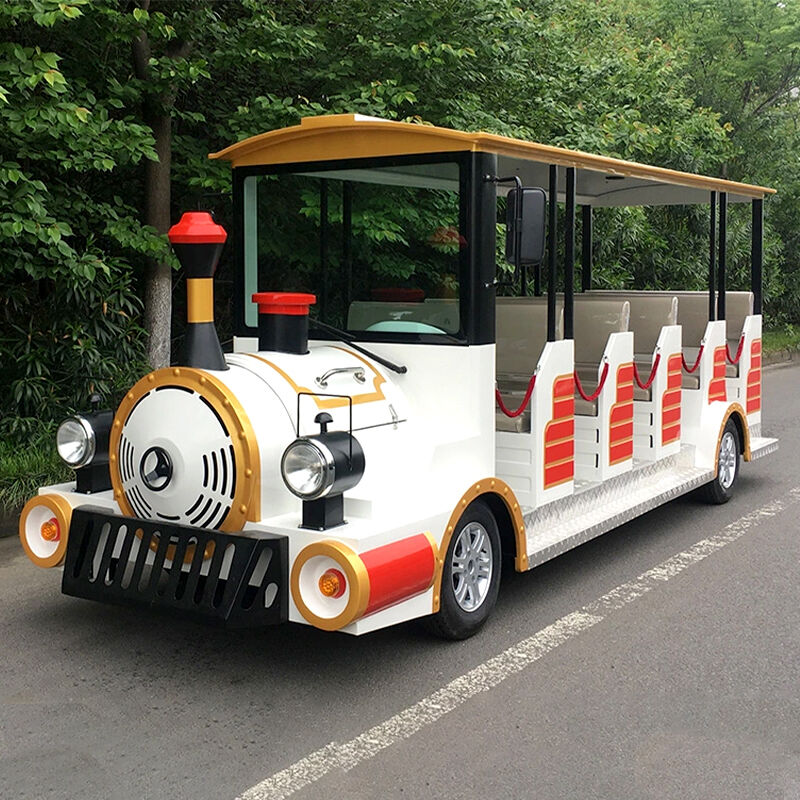

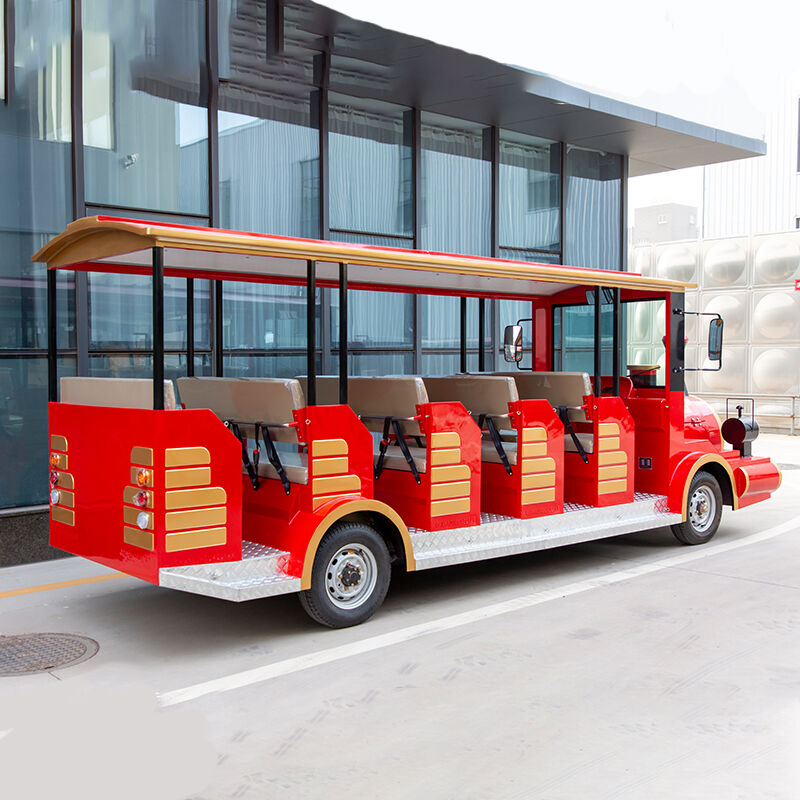

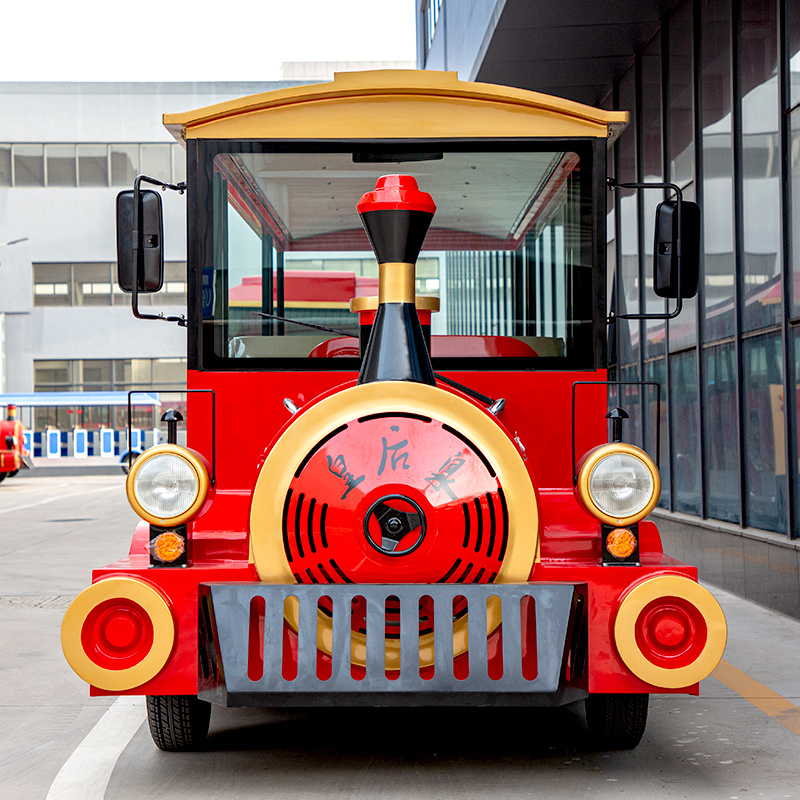

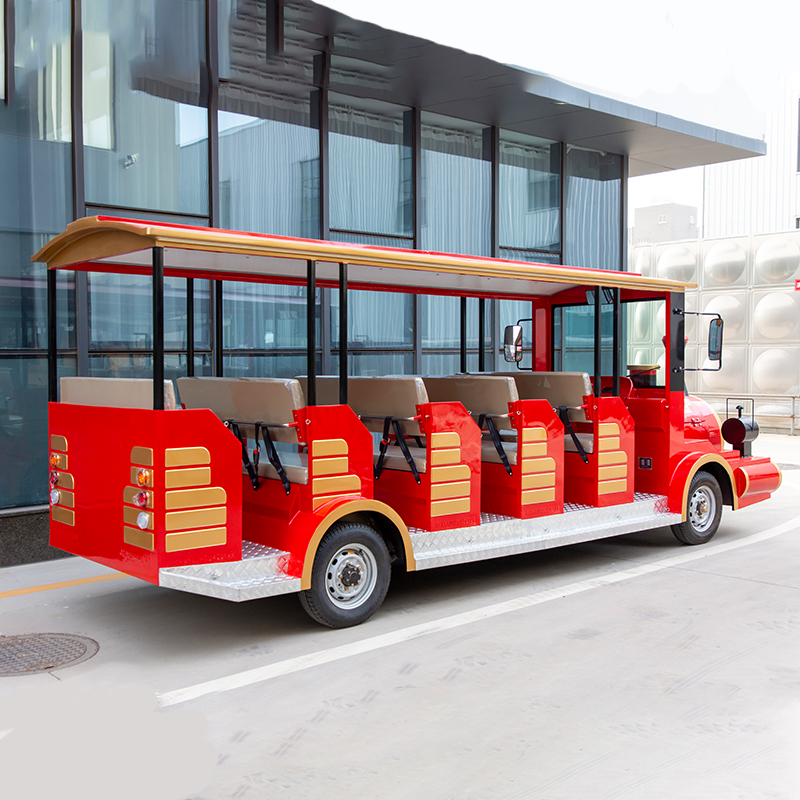

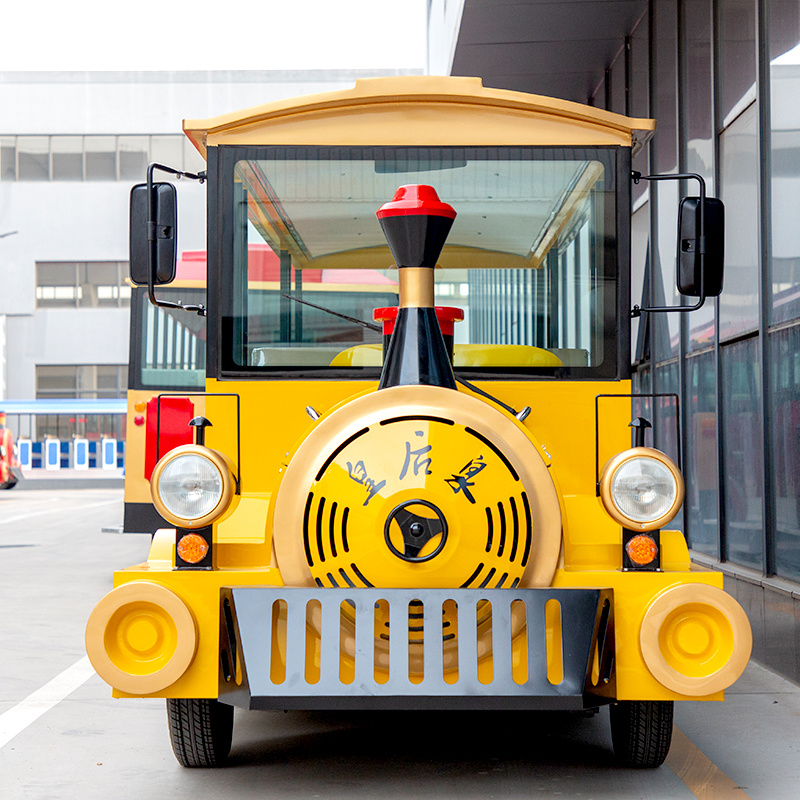

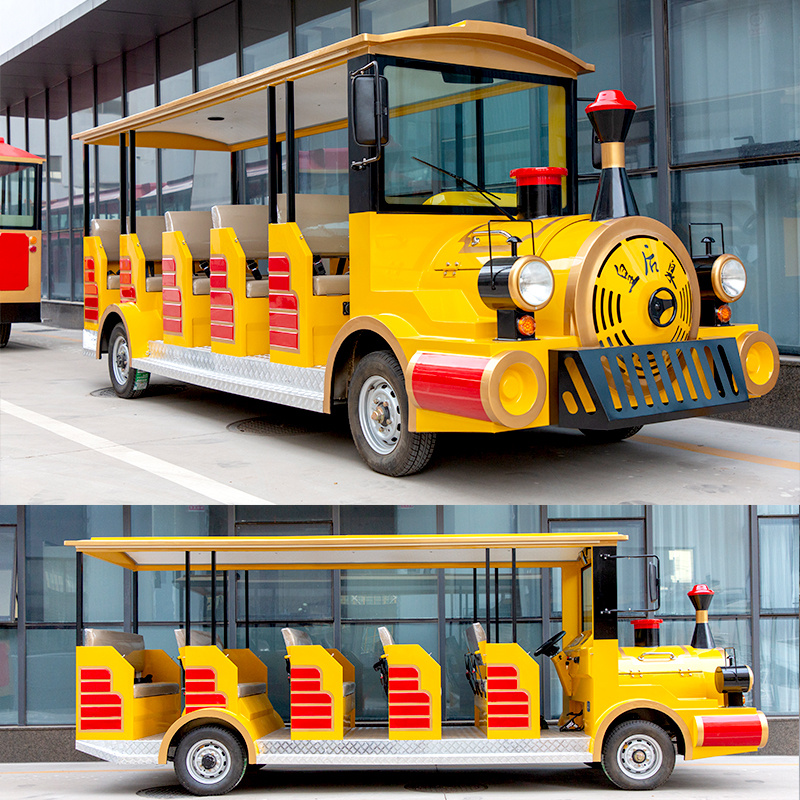

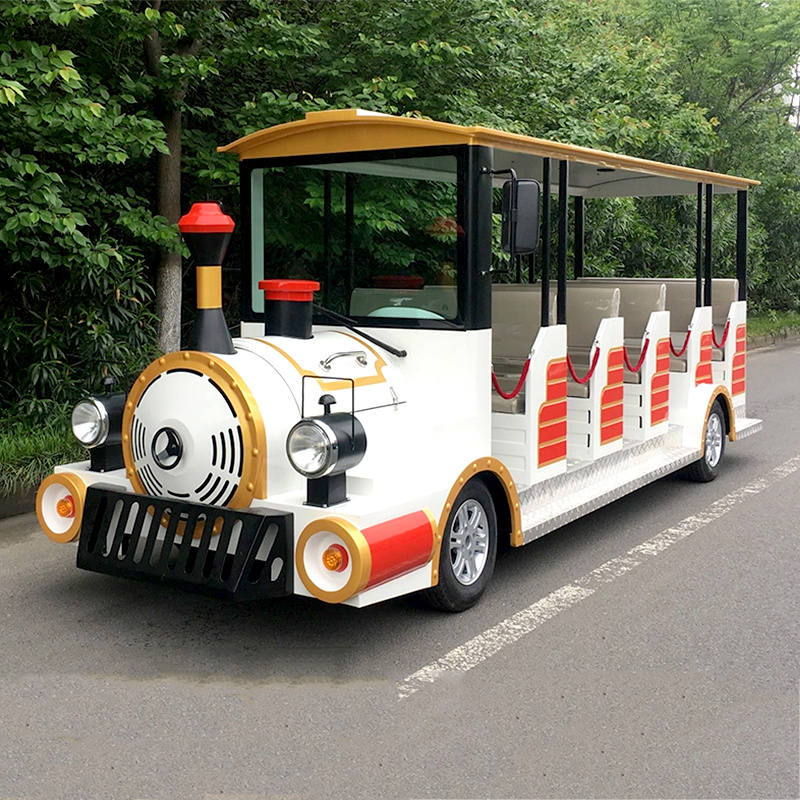

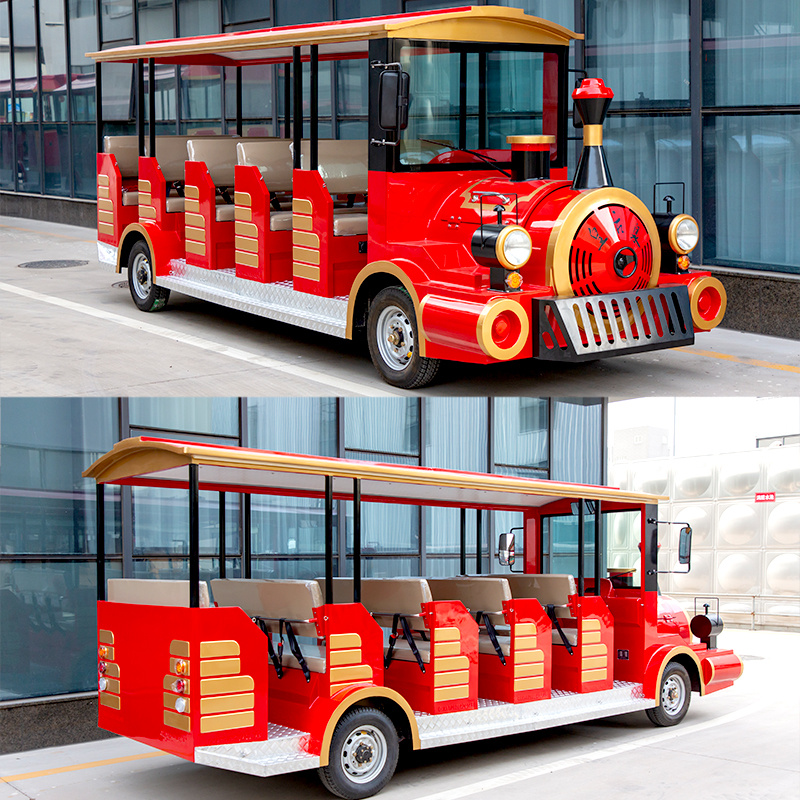

Small-Scale Battery-Powered Shuttle for Intimate Tours, Vintage Style – Ideal for Zoos, Botanical Gardens & Small Scenic Spots, OEM Flexible Layout
| Item | Electric Vehicle (Stepped Speed Regulation) | |
| Technical Parameters | Locomotive Dimensions L*W*H (mm) | 4603*1830*2413 |
| Passenger Carriage Dimensions L*W*H (mm) | 4500×2100×2410 | |
| Rated Passenger Capacity (persons) | 20+20+2 | |
| Max Speed (km/h) | 20 | |
| Min Turning Radius (m) | ≥7.5 | |
| Max Braking Distance (m) | ≤5 | |
| Max Driving Range (km) | ≥80 | |
| Min Ground Clearance (mm) | ≥150 | |
| Wheelbase (mm) | 2600 | |
| Max Driving Gradient (Full Load) ≤4% | ||
| Design Gradient (Full Load) ≤7% | ||
| Track Width (mm) | 1400 | |
| Power System | ★ Lithium Battery | Lithium Iron Phosphate Cell, 460AH, 73.6V |
| Battery Charger | Automatic Charger | |
| ★ Controller | 72V500A Electronic Commutation (Intelligent Controller) | |
| Traction Motor | 72V/12KW AC Motor | |
| Chassis | Power Transmission System | Rear-mounted Drive |
| System | Steering System | Recirculating Ball Steering Gear, Electric Power Steering with Automatic Clearance Compensation |
| Front Axle & Suspension | Leaf Spring Non-independent Suspension | |
| Rear Axle & Suspension | Integral Rear Axle, Leaf Spring Non-independent Suspension | |
| Brake System | UNI Air + Hydraulic Combined Dual-circuit Drum Brake (Front & Rear), Parking Brake Device | |
| Chassis | C-type Manganese Steel Longitudinal Beam, High-strength Chassis System | |
| Transmission Mode | 2*2 Single-wheel Drive | |
| Tires | Locomotive 195R14 Carriage 165R13 | |
| Traction Mode | Self-balancing Traction Rod, Heavy-duty Rotatable Connector | |
| MP6 Vehicle Player | Special for passenger cars (supports music & video playback); SD/TF card/USB compatible; digital radio, fully electronic digital tuning, FM radio with 18 preset stations and auto scan & storage; extra large pure blue LCD display; gold-plated RCA audio output; USB/SD dustproof function; automotive-grade flexible buttons, 4×50W output power. | |
| Monitoring System | Monitoring system installed (each carriage equipped with special 500G HD hard disk probe for large passenger cars, storage up to 15 days) | |
| Display Screen | HD display screen installed in each carriage | |
| Electrical | Voice Announcer | Vehicle equipped with voice stop announcer |
| System | Sound Effect | Whole vehicle equipped with high-imitation train whistle (real train sound) |
| Lights | Locomotive equipped with headlamps, turn signals, brake lights, warning lights, etc. | |
| Meter | Battery indicator, odometer, speedometer, turn signal indicator, combined type | |
| Exterior | Paint | Automotive-grade ordinary paint, computer color matching, professional spraying equipment |
| ★ Body Outer Panel | All-metal body, sheet metal stamping parts, full automotive production process | |
| ★ Whole Vehicle Anti-corrosion Process | Electrophoretic anti-corrosion process for the whole body, 360° all-round anti-oxidation, rust prevention and corrosion protection inside and outside the body. | |
| Lights & Signals | Combined headlamps, turn signals, combined rear taillights, electric horn | |
| Front Windshield | All vehicle glass adopts tempered parts | |
| Interior | Driver's Cab | Fully enclosed around, roof warning light |
| Seats | High-grade artificial leather + high-resilience PU | |
| Switches | Ignition switch, light & wiper combination switch, forward/reverse switch | |
| Instrument Panel | Automotive-grade high-grade blister instrument panel | |
| Floor | All-aluminum corrugated anti-slip new floor | |
| Safety | Safety Chains | 304 stainless steel protective chains installed at passenger exit of each carriage |
| Protection | ||
| Equipment | Seat Belts | Two-point seat belts installed on every seat to ensure the safety of each passenger |
| Safety Armrests | Safety armrests for each row of seats to prevent passengers from leaning forward and getting injured due to emergency braking. | |
| Emergency Exit Alert Buttons | Emergency exit alert buttons for each row in the carriage for convenient passenger alighting or emergency handling. | |
| Safety Signs & Markers | Safety signs and markers in each carriage to remind passengers to pay attention to safety and reduce potential hazards. | |
| Special Equipment | ● Off-white high-grade artificial leather + high-resilience PU ● Safety isolation belt between locomotive and carriages (Note: 1-meter line) ● Safety isolation belt between carriages (Note: 1-meter line) ● Sunshade curtain installed in driver's cab ● 1 fire extinguisher in driver's cab ● Automotive-grade high-grade blister instrument panel (speed, mileage, lights) ● 1 antique copper bell on locomotive. | |
| Note: | ||
| 1. One set of vehicle tools. | ||
| 2. Vehicle color can be customized according to customer requirements. | ||
| 3. One 3-ton horizontal jack for the whole vehicle. | ||
| 4. Our company can make reasonable configuration and customized production according to customers' actual usage requirements. | ||
| 5. One-year warranty for the whole vehicle. | ||
| 6. One set of registration qualification for the whole vehicle. | ||
| 7. 20 safety chains for the whole vehicle. | ||
| 8. One set of safety user manual and certificate for the whole vehicle | ||
