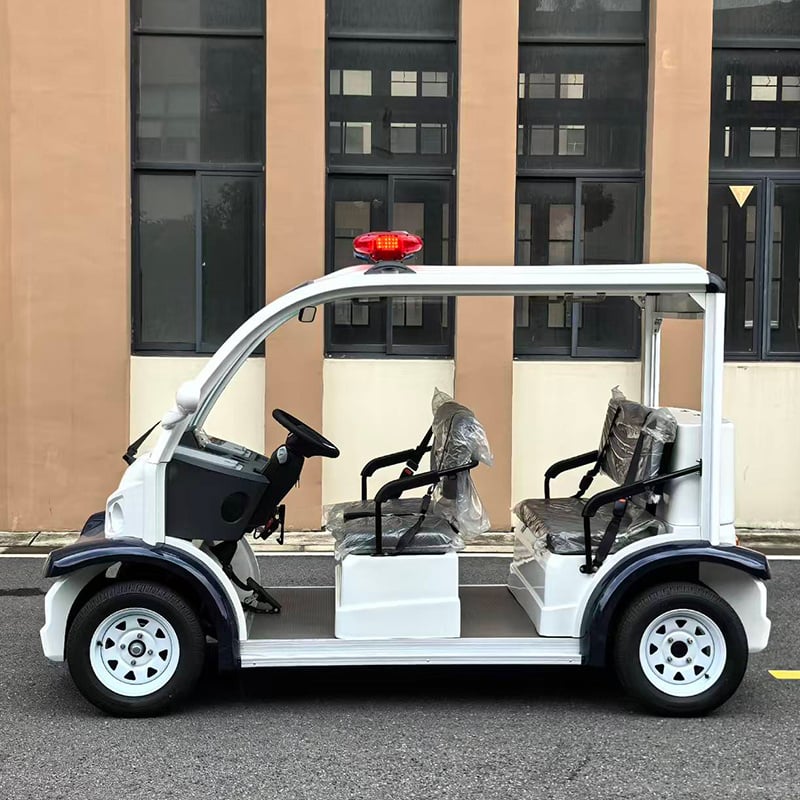

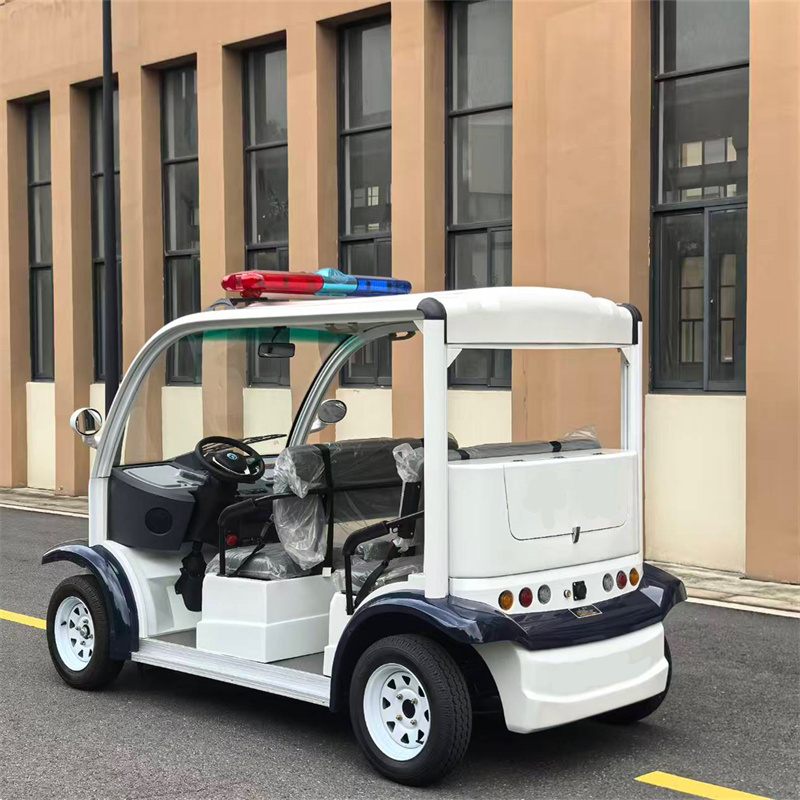

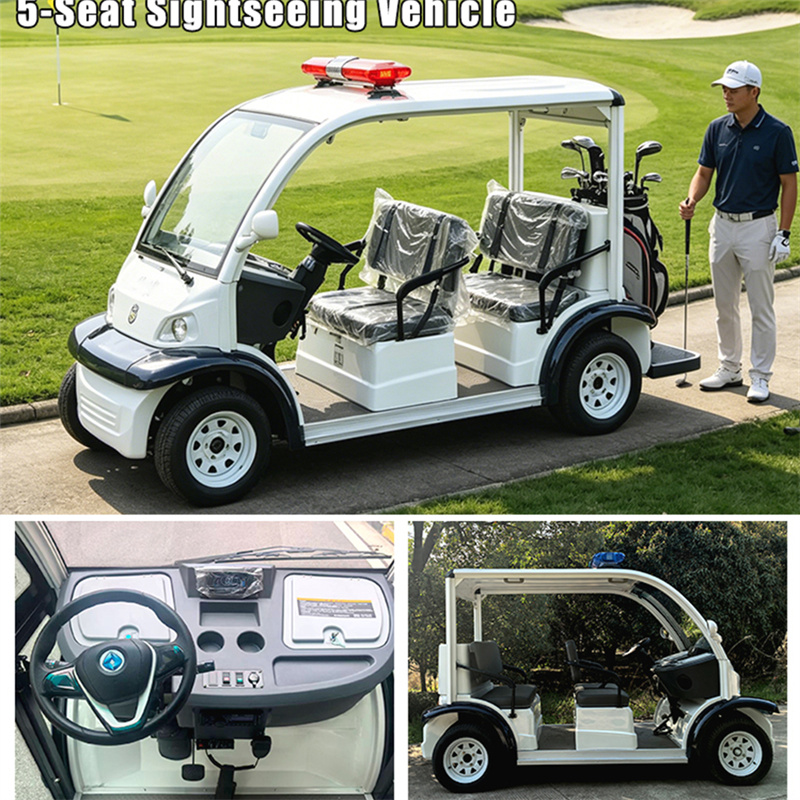

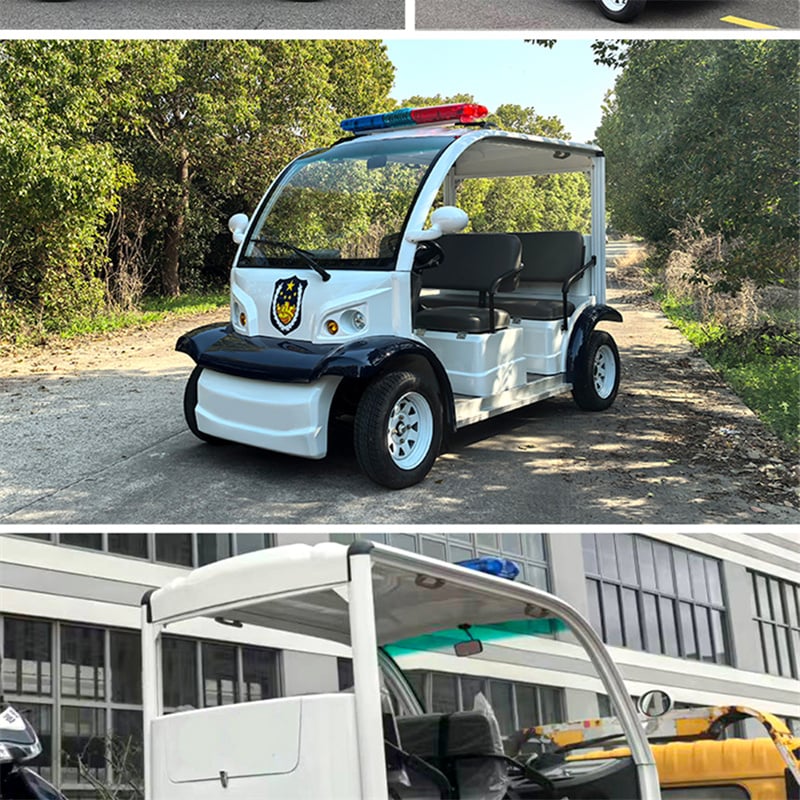

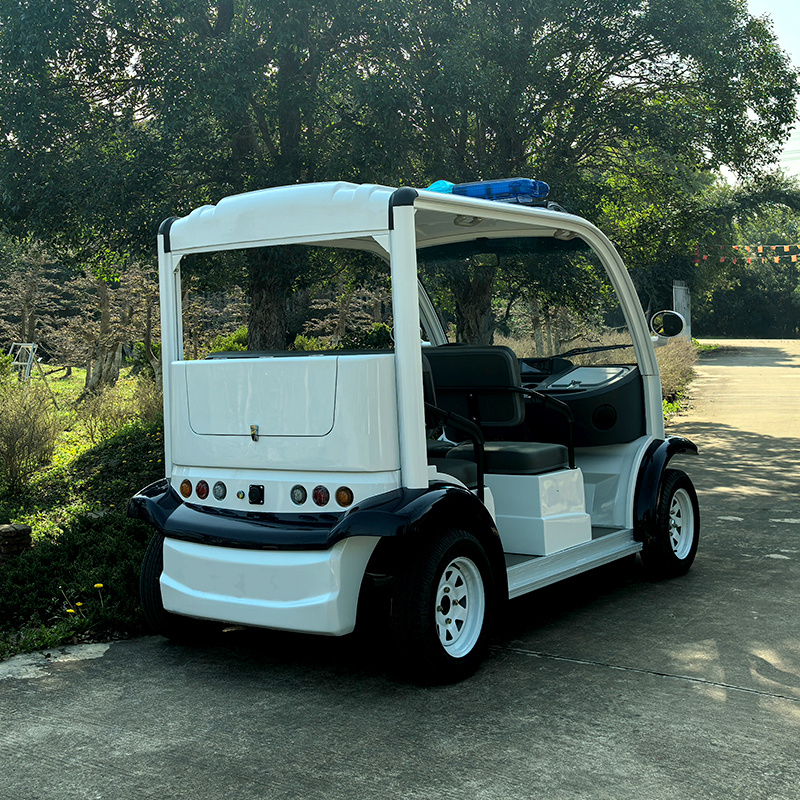

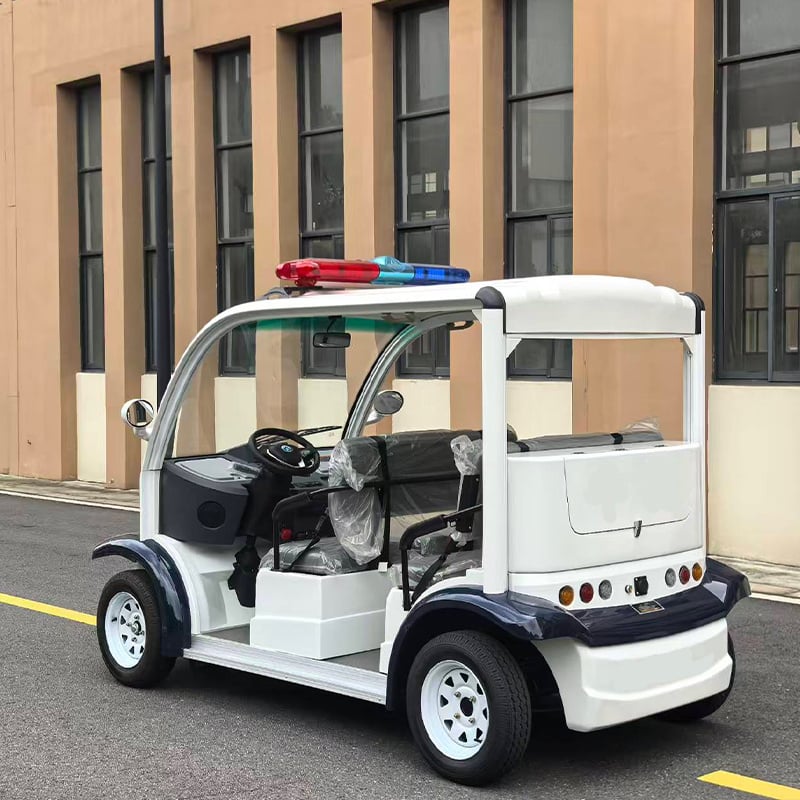

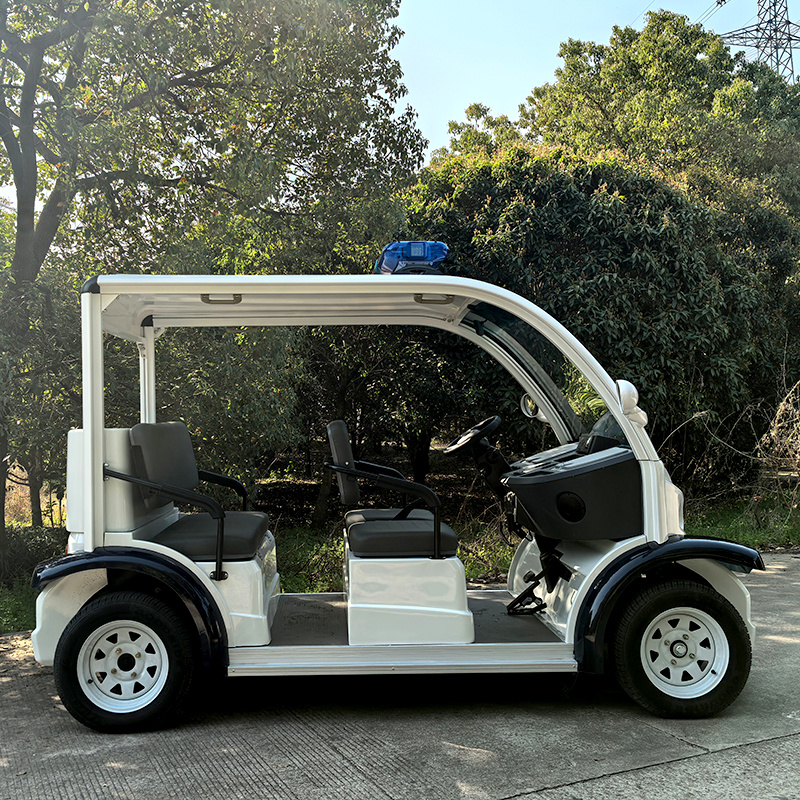

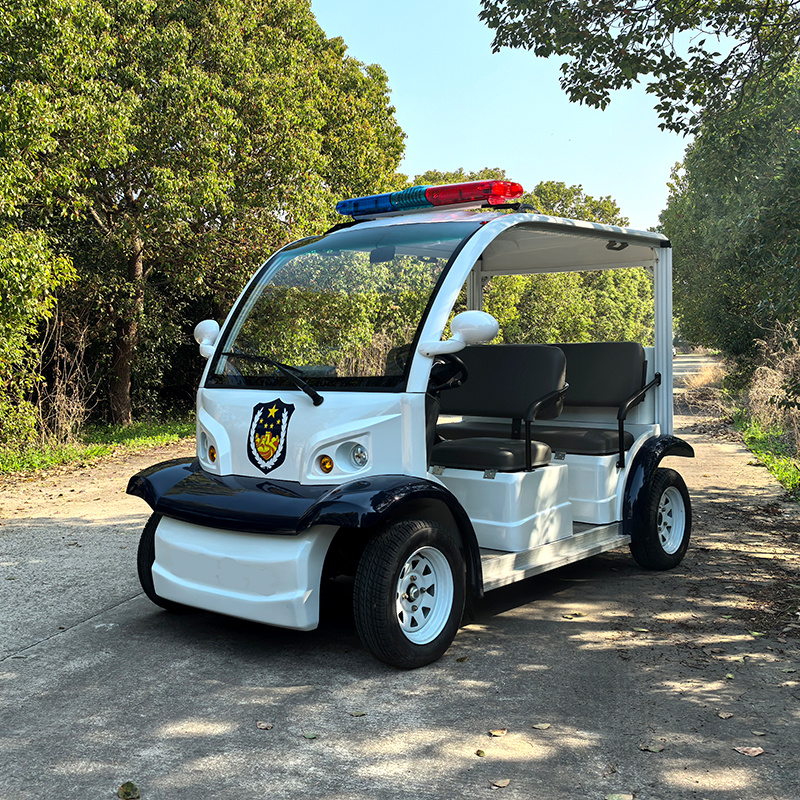

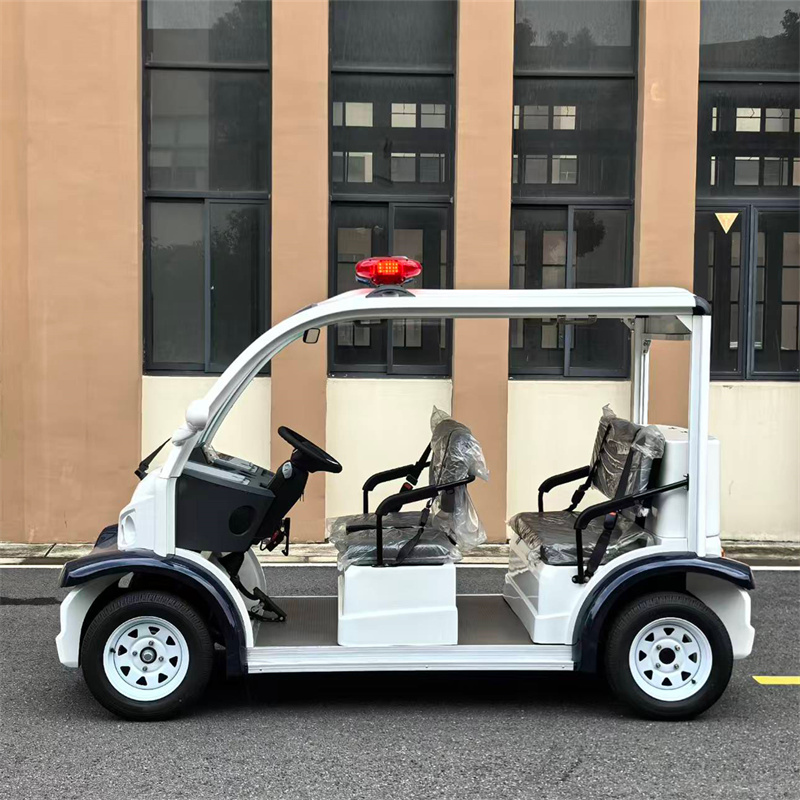

| Model | RSD-T1(electric police car) | |
| System | 48V5KW | |
| FOB Shanghai | ||
| Key Components | ||
| Battery | Sealed lead- gel battery 8pcs*6V/200AH | |
| Motor | 5KW AC motor | |
| Controller | 48V controller | |
| Performance | ||
| Passenger capacity | 5 | |
| Range (loaded) based on flat road at a speed of 30km/h (km)＊ | ≥100 | |
| Max. speed (km/h) | 30,(recommend 10 for indoor use) | |
| Minimum turning radius (m) | 4.5 | |
| Max. climbing ability (loaded) | 20% | |
| Max. movement after brake at speed of 30km/h | ≤ 4.5m | |
| Max. loading weight | 500kgs | |
| Net weight | 700kgs | |
| Dimensions | ||
| Overall dimensions (mm)with roof light | 3100x1440x2070 | |
| Min. ground clearance (mm) | 150 | |
| Wheelbase (mm) | 2245 | |
| Front wheel tread (mm) | 1205 | |
| Rear wheel tread (mm) | 1200 | |
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||
| Body and Frame | ||
| Frame | full alum alloy frame | |
| Chassi | steel chasis | |
| Roof+bumper | ABS engineering plastic covers+yacht fiberglass bumper cabin | |
| Windshield | Laminated glass with wiper | |
| 2point seat belt | 8 pcs | |
| Seats | Bus cold-blow sponge+high-rebound PU leater fabric | |
| 1) backrest and cushion | Sponge + artificial leather | |
| 2) armrest | stainless steel | |
| Stop distance sensor for front and rear | / | |
| Floor | aluminum alloy sheet | |
| Inner rear view mirror | One piece per cart in the middle of the windshield | |
| Side rear view mirror | Two pieces per cart | |
| Electric system | ||
| Lighting system and horn | combined headlight, combined taillight, electric horn and reverse beep, USB+cigarette lighter charging plug | |

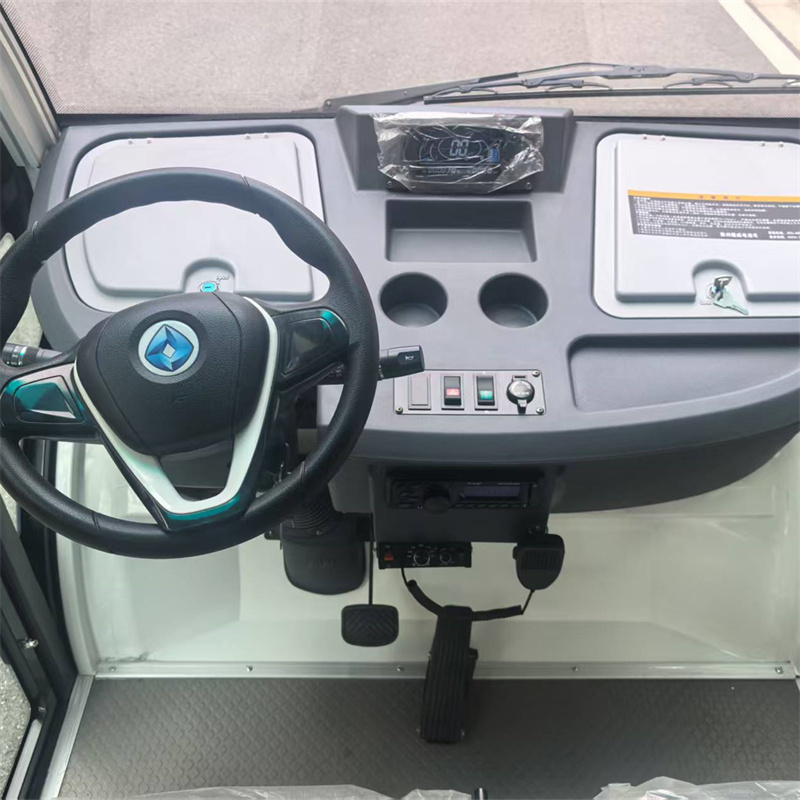

| Dashboard | Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, fog light switch; Headlight switch, turn signal switch, wiper switch, horn button; | |
| Audio System | Radio and MP3 player | |
| Alarming light | LED high-efficience flashing warning light | |
| Speaker | 2pcs | |
| Reversing alarm | yes | |
| Switch assembly | Lights switch, horn switch, wiper switch | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | |
| Steering and Suspension | ||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |
| Brake system | Four wheel hydraulic drum brake+dual circuit hydraulic braking, parking brake system | |
| Transmission system | Stepless transmission | |
| Suspension system | McPherson independent suspension + monocoque rear axle | |
| Wheel & Tyre | Sedan wide steel wheel rims, standard highway tire 165/70R13C | |
| Body color available | green, white, red,yellow | |
| Standard Seat Color | tan | |
| Accessory | two ladders, one fire shovel, one fire chopper, one water pipe , one set of general tool per bus | |
| Container loading qty | Assembled | |
| Qty/20'GP | 1unit | |
| Qty/40'GP | 3units | |
