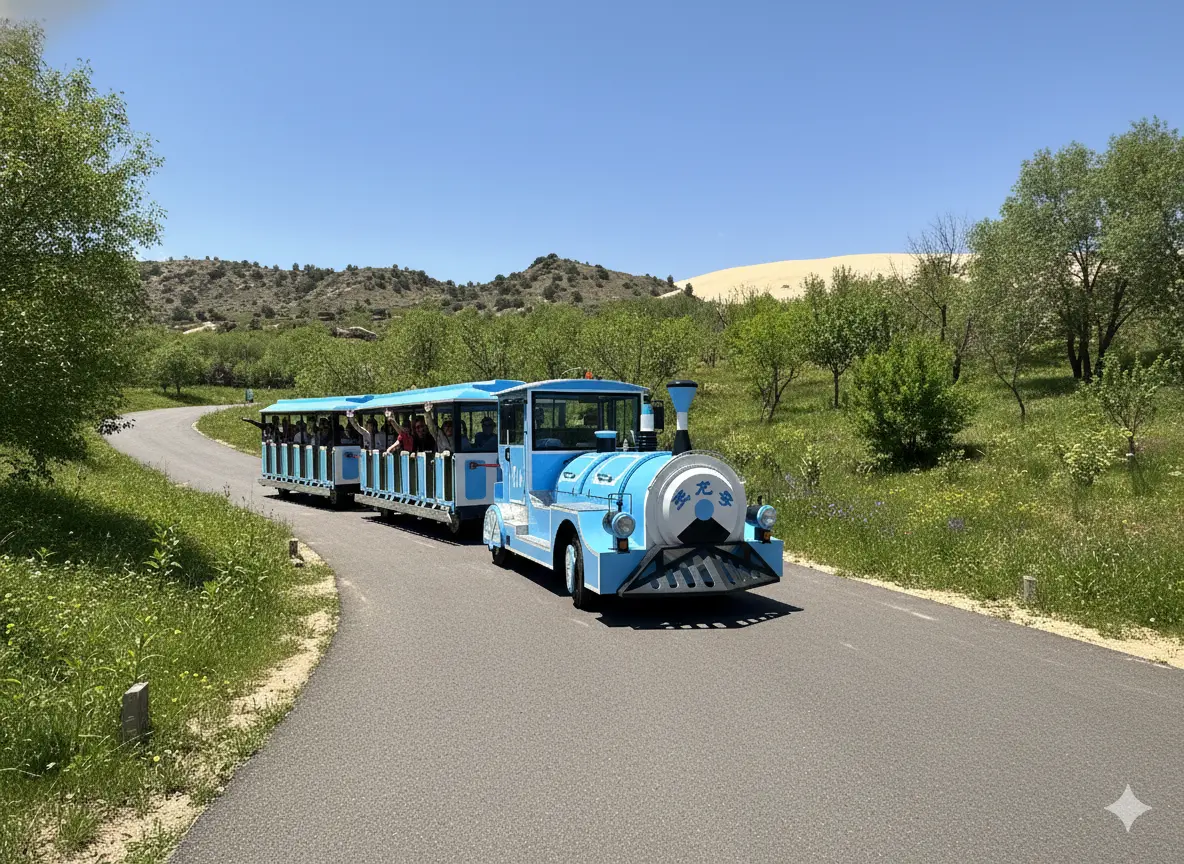

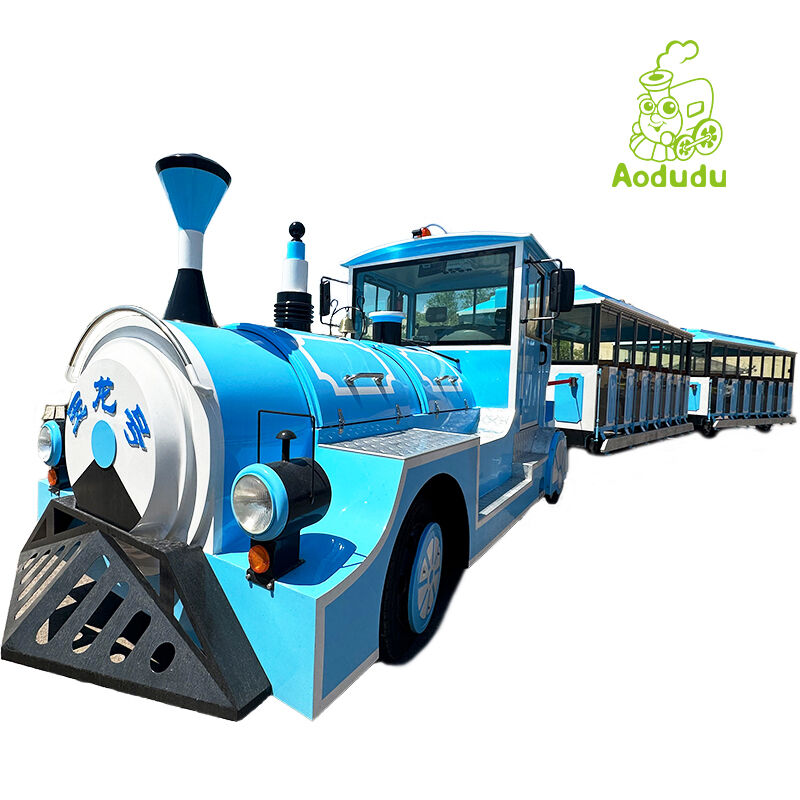

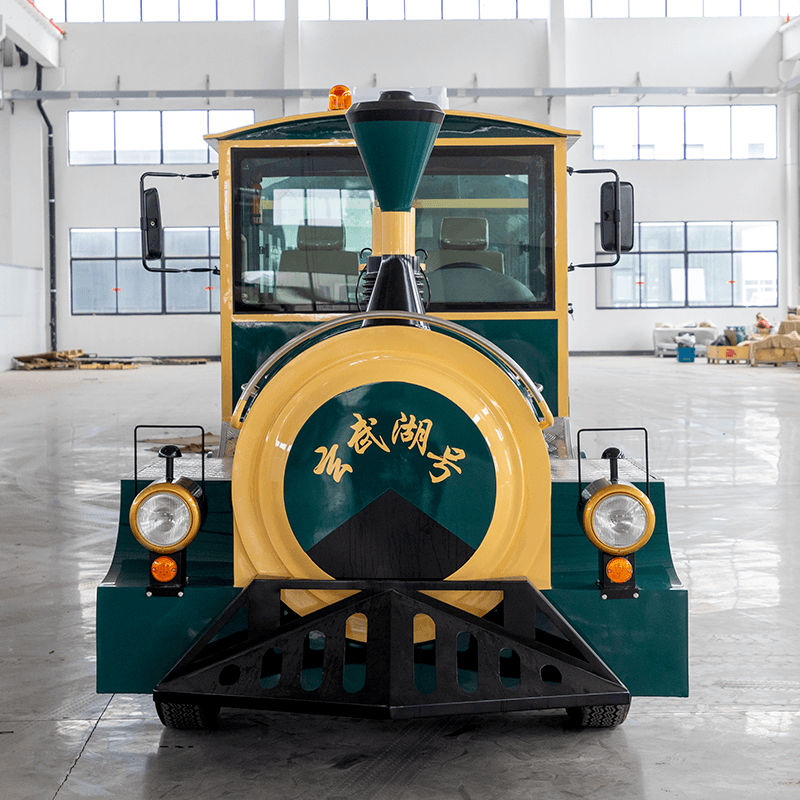

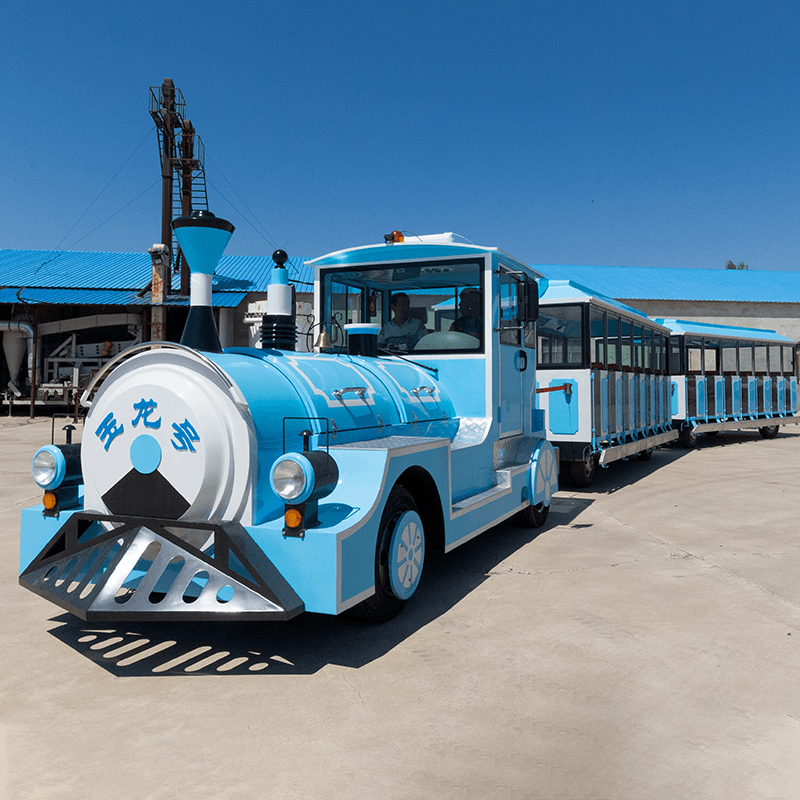

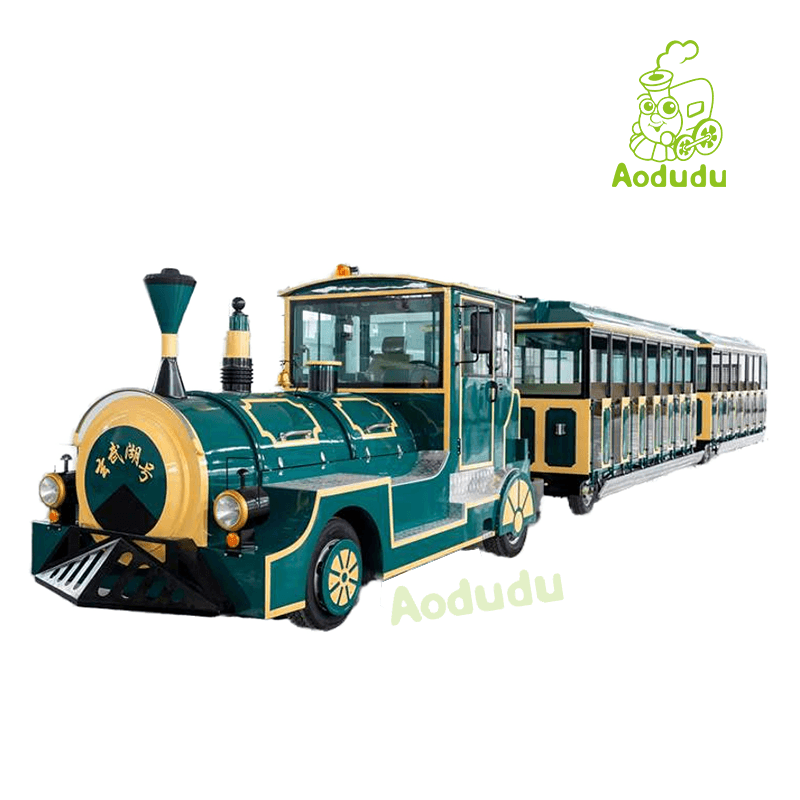

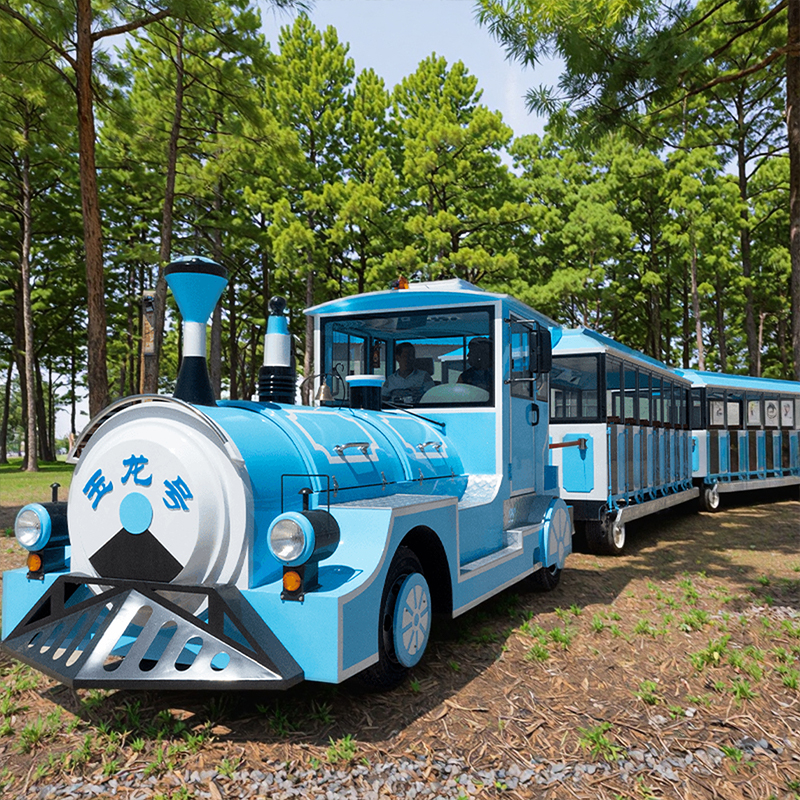

Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72
Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72

Electric 72-Seat Sightseeing Train | Automatic Sliding Door – Model ALGD-CL-72

72-Passenger Zero-Emission Trackless Train with Power Sliding Doors – CE & ISO 9001 Support, Ideal for Scenic Areas, Theme Parks & Waterfront Promenades

  • Seat distribution: 72(2+35+35)
  • Overall train length: 17980mm
  • Overall train width: 1980/2340mm
  • Overall train height: 2500mm
  • Overall train weight: 5900kgs
  • Max speed: 20km/h
  • Min turning radius: 8.5m
  • Range: more than 80km
  • Max climbing: 7%(loaded)
  • Brake distance: less than 3.5m(initial speed 10km/h)
  • Motor power: 72V/18KW AC
  • Battery capacity: 460AH dual Lithium iron phosphate with BMS system
  • Charging time: 6-8hours
Get a Quote

Introduction

Item Electric Vehicle (Stepped Speed Regulation)
Technical Parameters Locomotive Dimensions (L*W*H, mm) 4603*1980*2500
Passenger Carriage Dimensions (L*W*H, mm) 5400×2300×2520
Rated Passenger Capacity (persons) 35+35+2
Max Speed (km/h) 20
Min Turning Radius (m) ≥8.5
Max Braking Distance (m) ≤5
Max Driving Range (km) 60
Wheelbase (mm) 2600
Min Ground Clearance (mm) ≥150
Max Driving Gradient (No Load) ≤4%
Design Gradient (No Load) ≤7%
Track Width (mm) 1400
Power System ★ Lithium Battery Lithium Iron Phosphate Cell, 460AH, 73.6V
Battery Charger Automatic Charger
★ Controller 72V500A Electronic Commutation (Intelligent Controller)
Traction Motor 72V/12KW AC Motor
Chassis Power Transmission System Rear-mounted Drive
System Steering System Recirculating Ball Steering Gear, Electric Power Steering with Automatic Clearance Compensation
Front Axle & Suspension Leaf Spring Non-independent Suspension
Rear Axle & Suspension Integral Rear Axle, Leaf Spring Non-independent Suspension
Brake System UNI Air + Hydraulic Combined Dual-circuit Drum Brake (Front & Rear), Parking Brake Device
Chassis C-type Manganese Steel Longitudinal Beam, High-strength Chassis System
Transmission Mode 2*2 Single-wheel Rear-mounted Drive
Tires Locomotive 195R14  Carriage 600-14
Traction Mode Self-balancing Traction Rod, Heavy-duty Rotatable Connector
MP6 Vehicle Player Special for passenger cars (supports music & video playback); SD/TF card/USB compatible; digital radio, fully electronic digital tuning, FM radio with 18 preset stations and auto scan & storage; extra large pure blue LCD display; gold-plated RCA audio output; USB/SD dustproof function; automotive-grade flexible buttons, 4×50W output power.
Electrical Monitoring System Monitoring system installed (each carriage equipped with special 500G HD hard disk probe for large passenger cars, storage up to 15 days)
System Display Screen HD display screen installed in each carriage

Voice Announcer

 Vehicle equipped with voice stop announcer

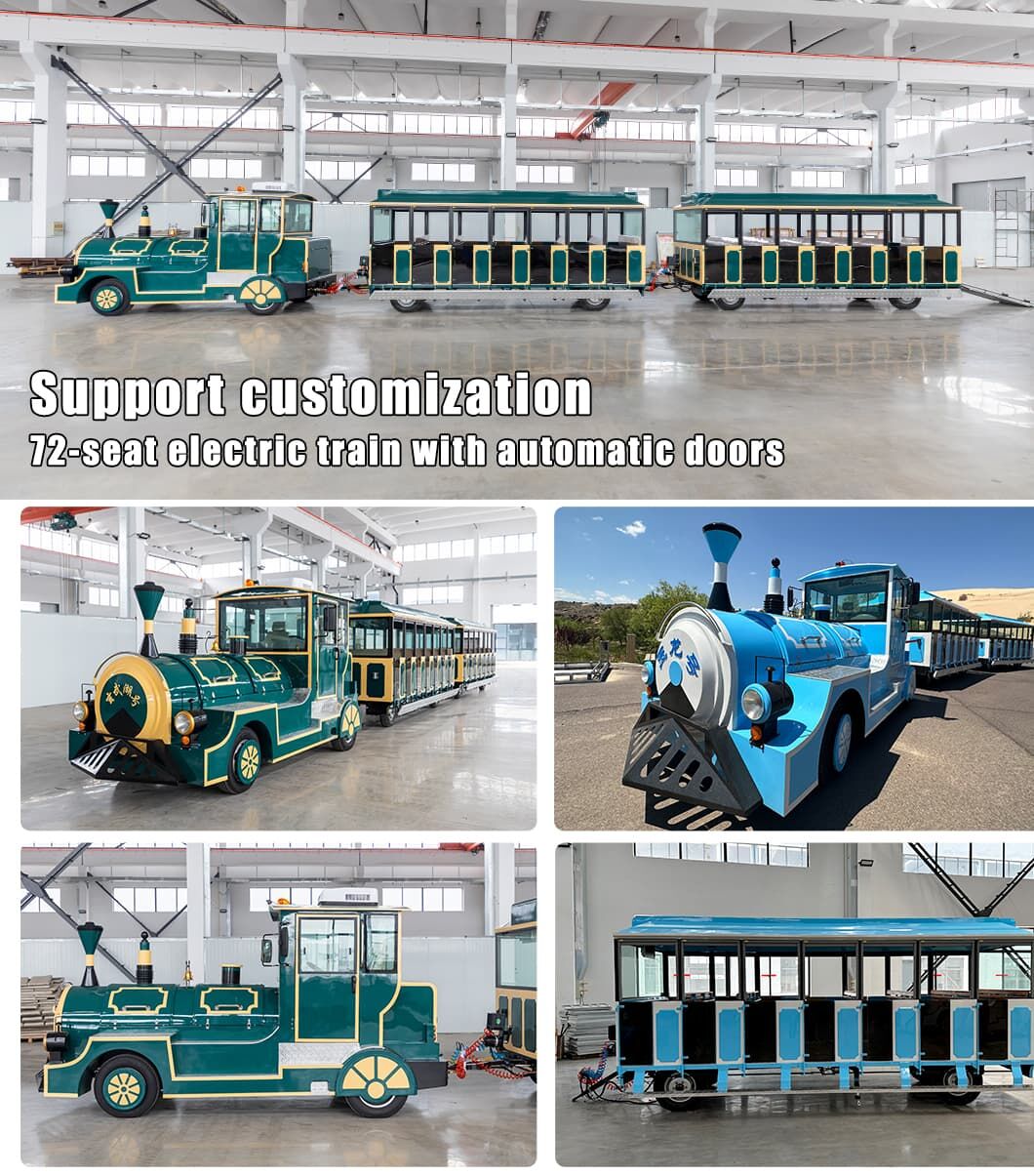

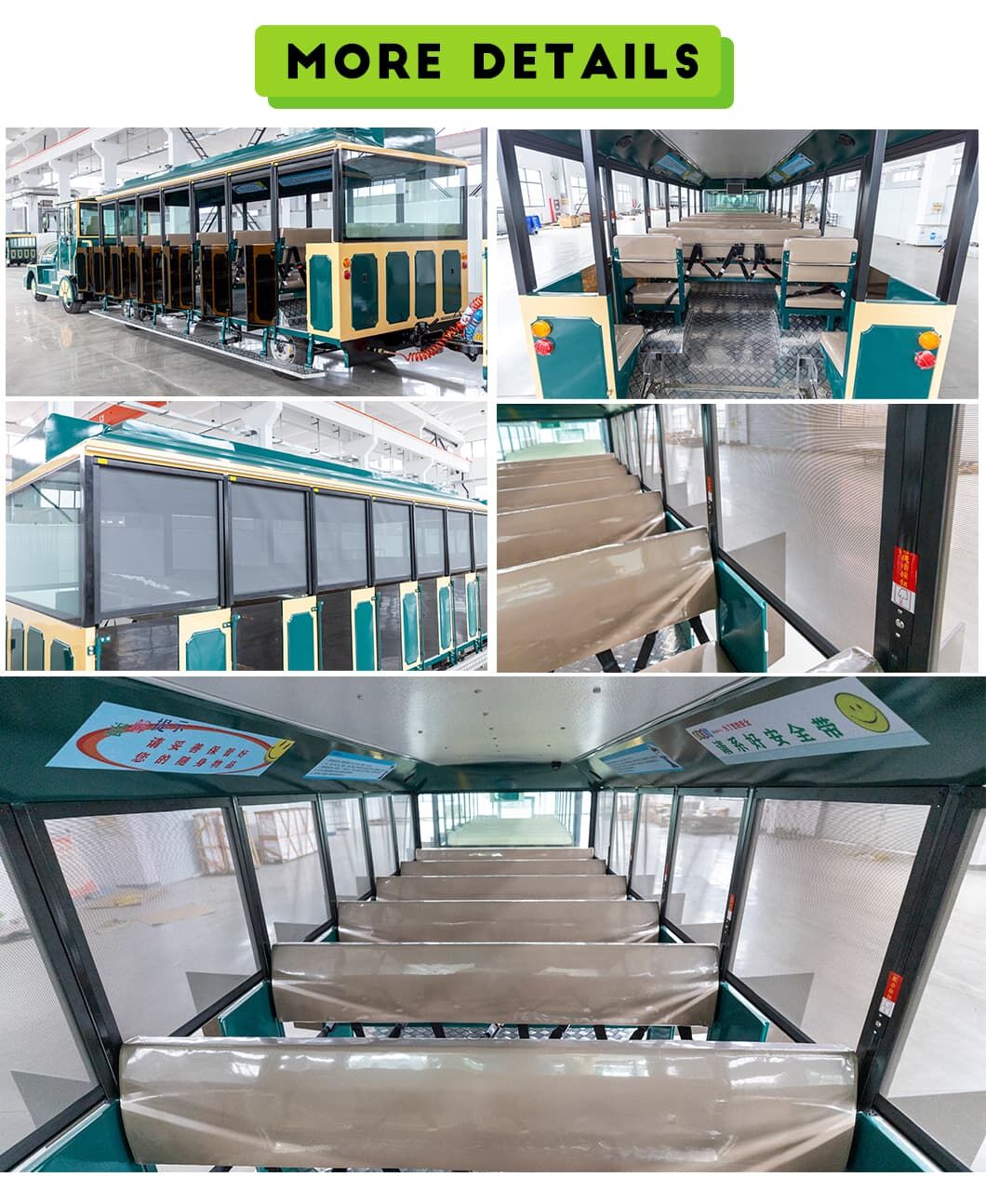

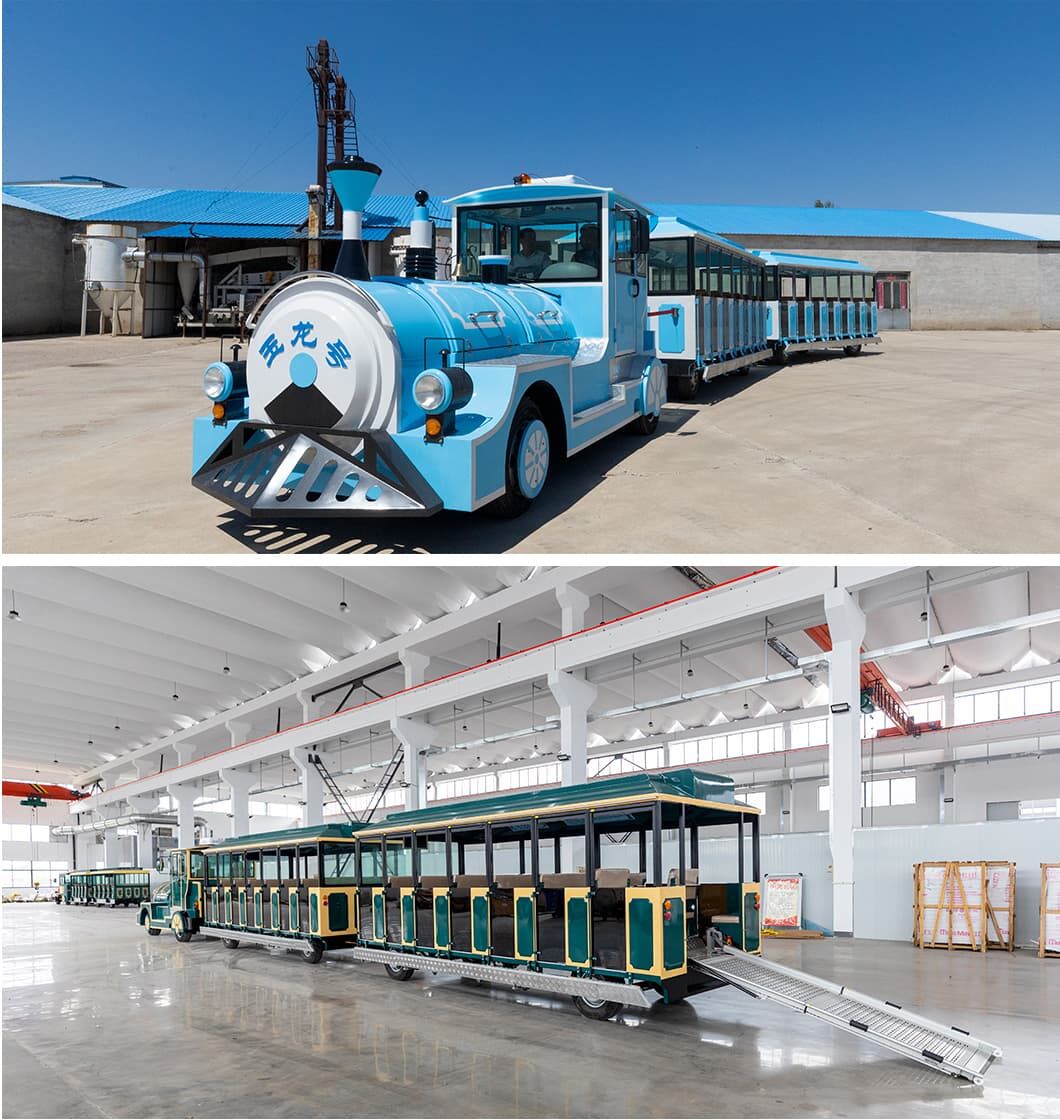

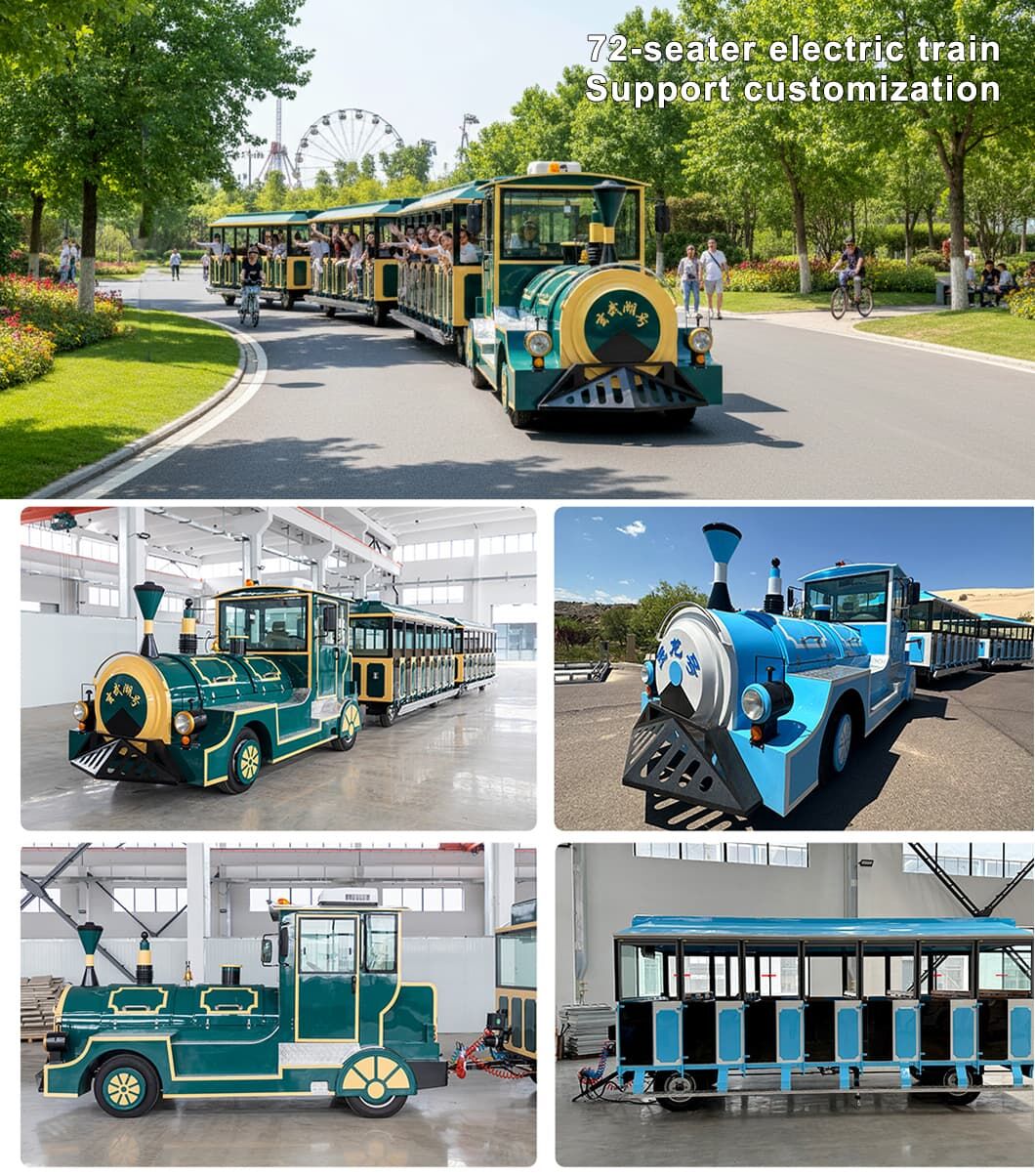

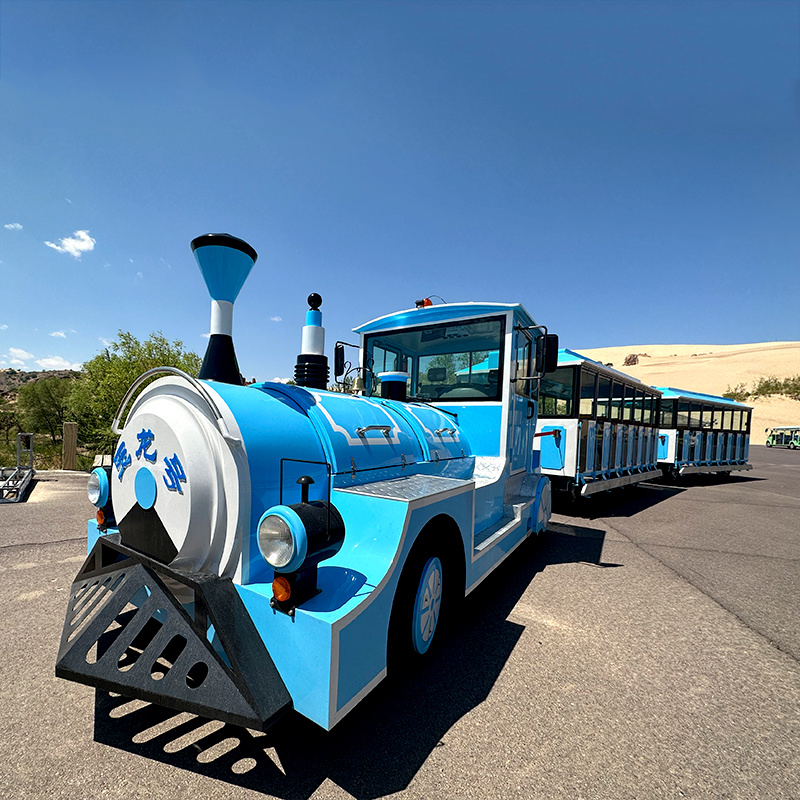

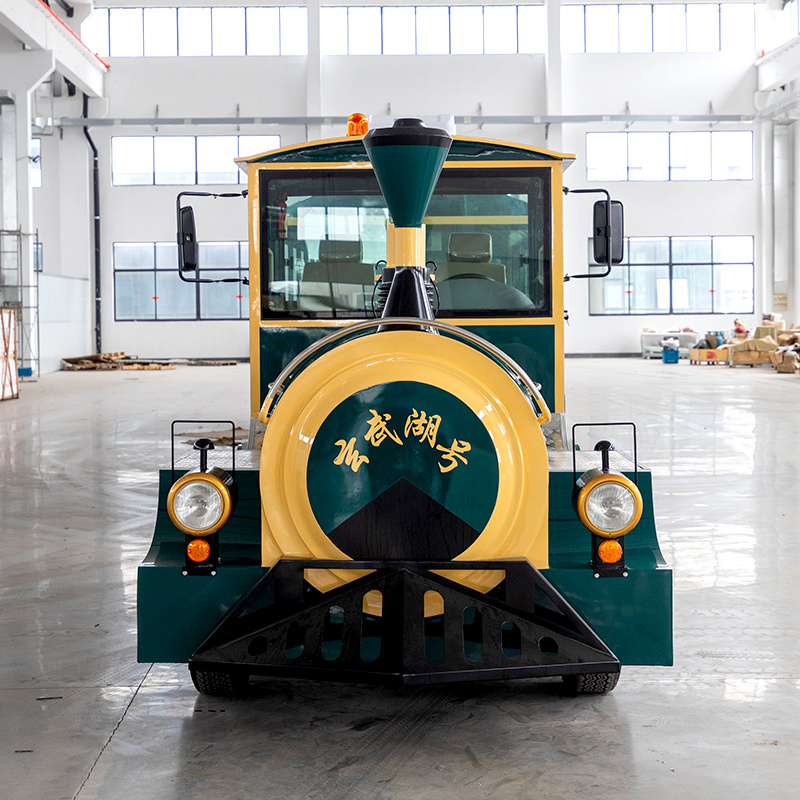

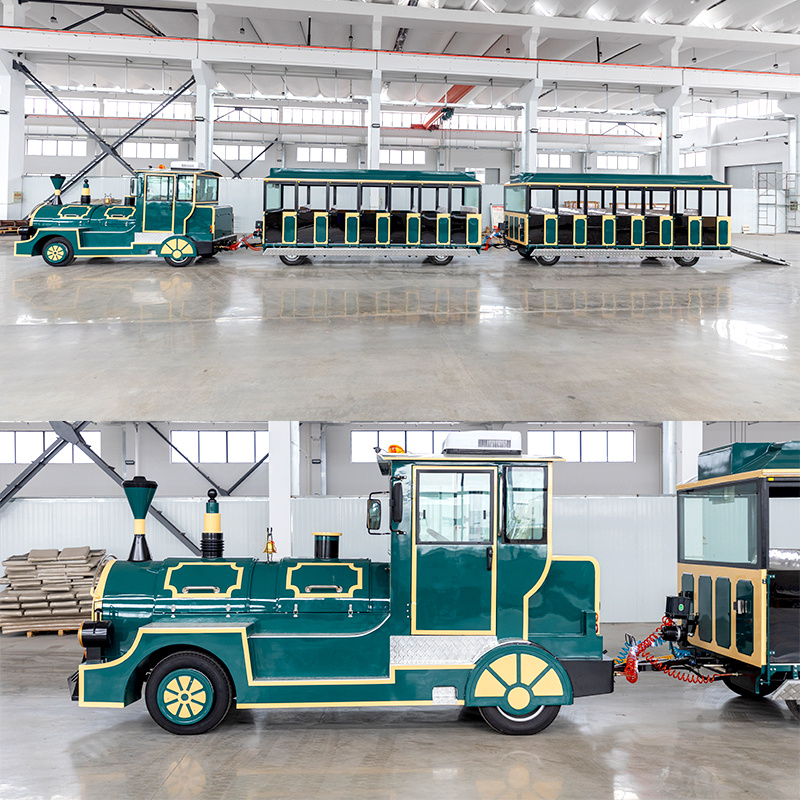

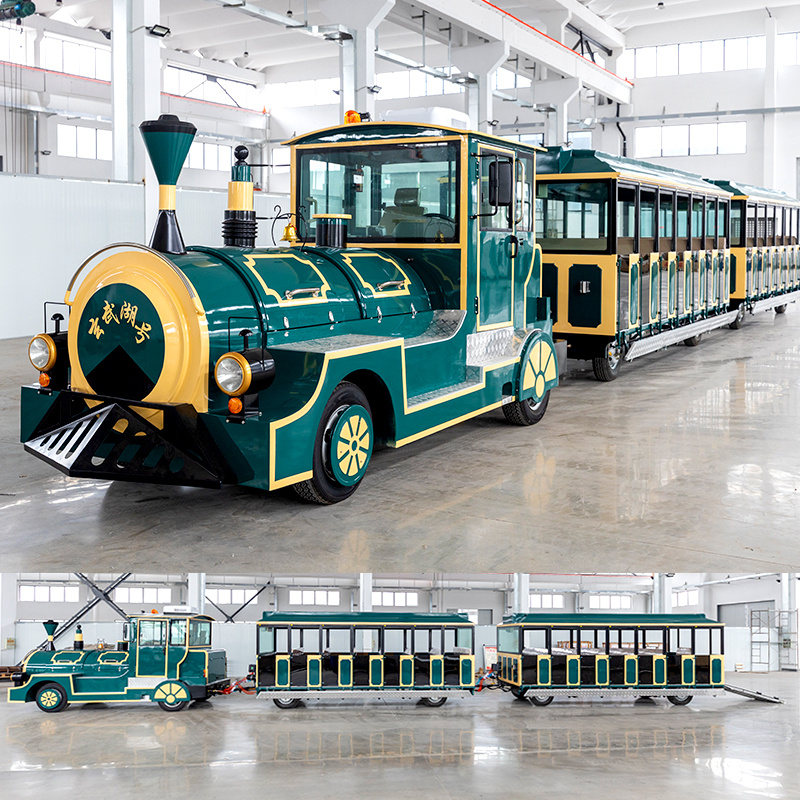

Real Shots & Craftsmanship Details
