72-Passenger Zero-Emission Trackless Vehicle, Japan-Inspired Fruit Design, Power Sliding Doors – Perfect for Themed Amusement Parks & Seasonal Events, Full Customization Available
Family‑oriented parks and seasonal event venues face a common challenge: standing out in a crowded market. A generic transport vehicle does little to create memorable moments or encourage social media sharing.

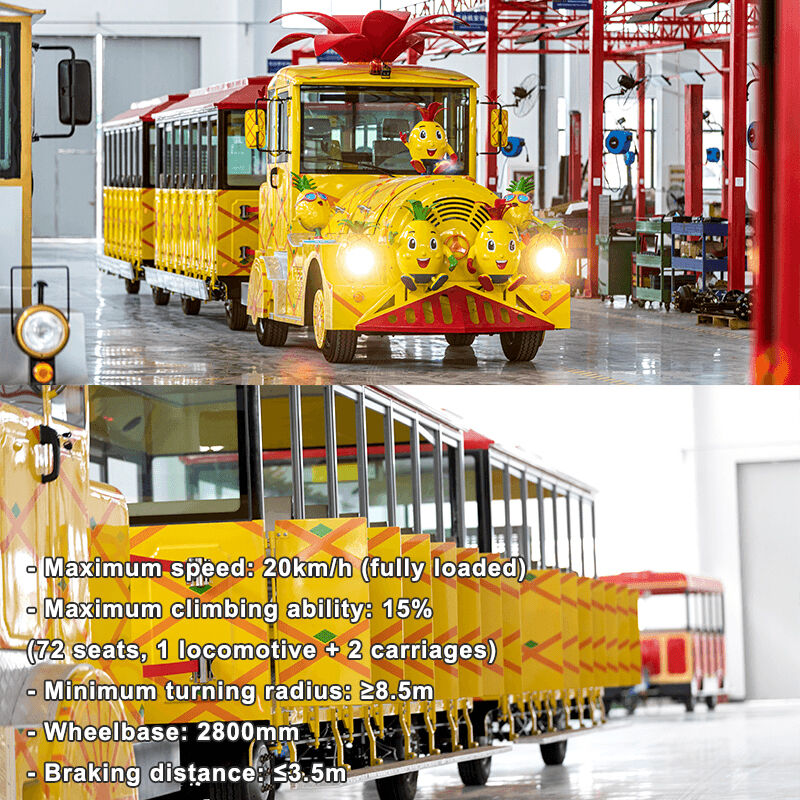

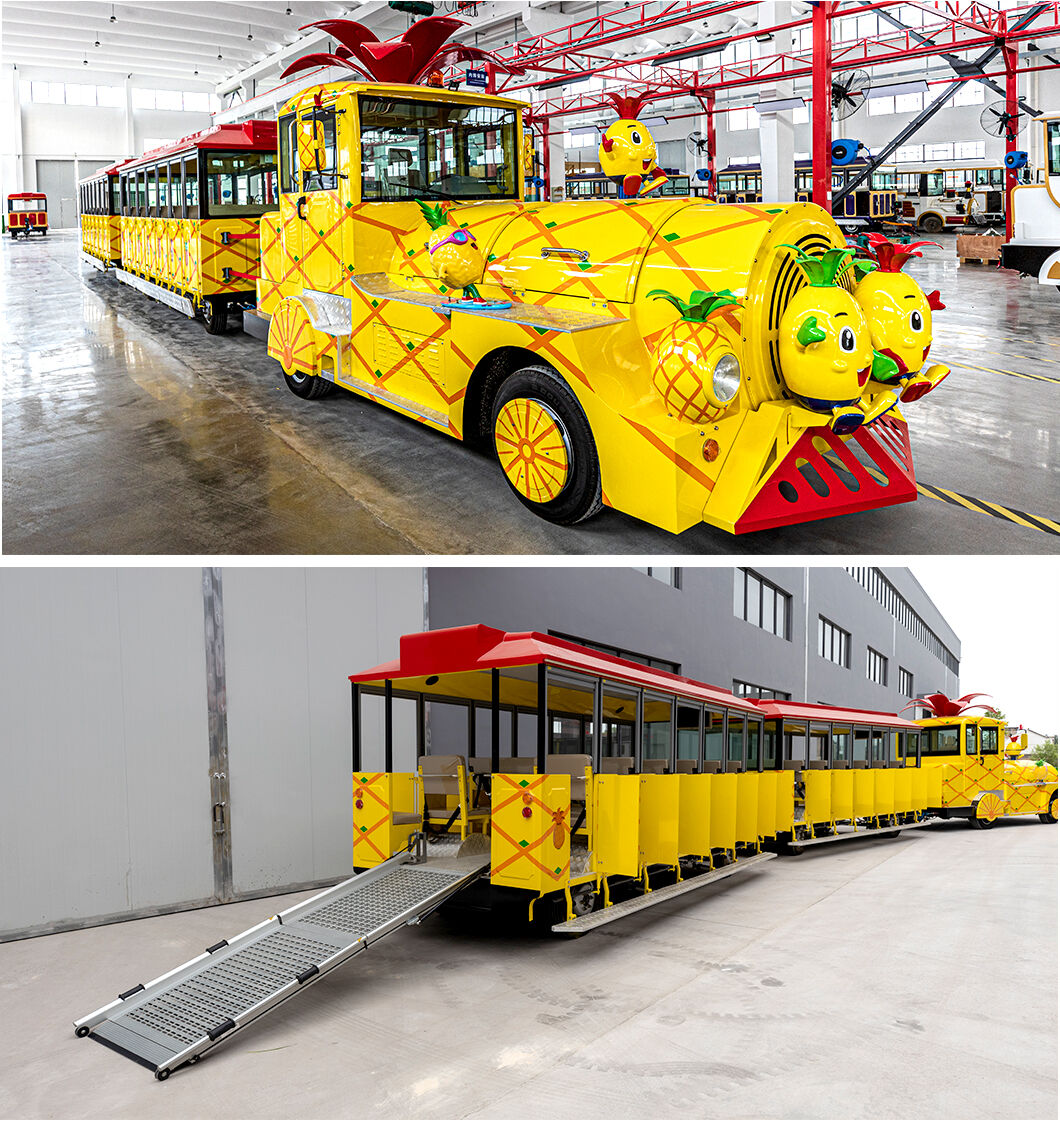

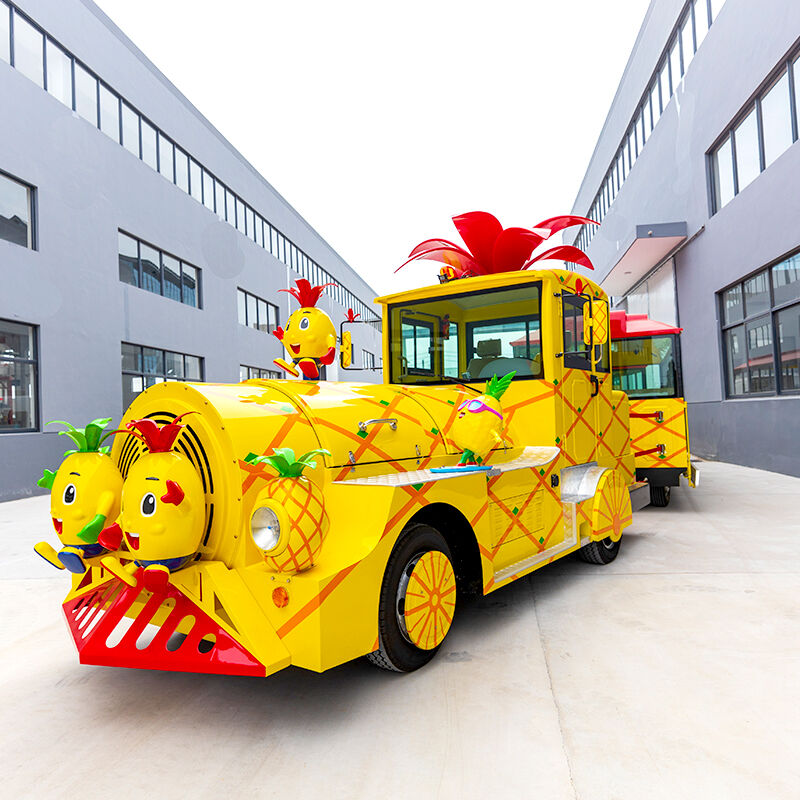

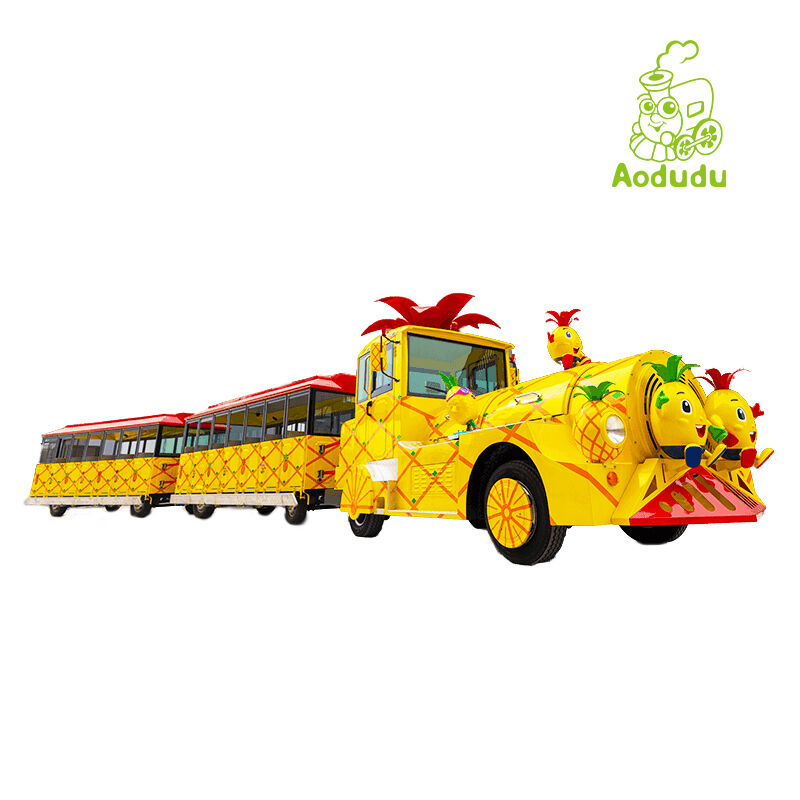

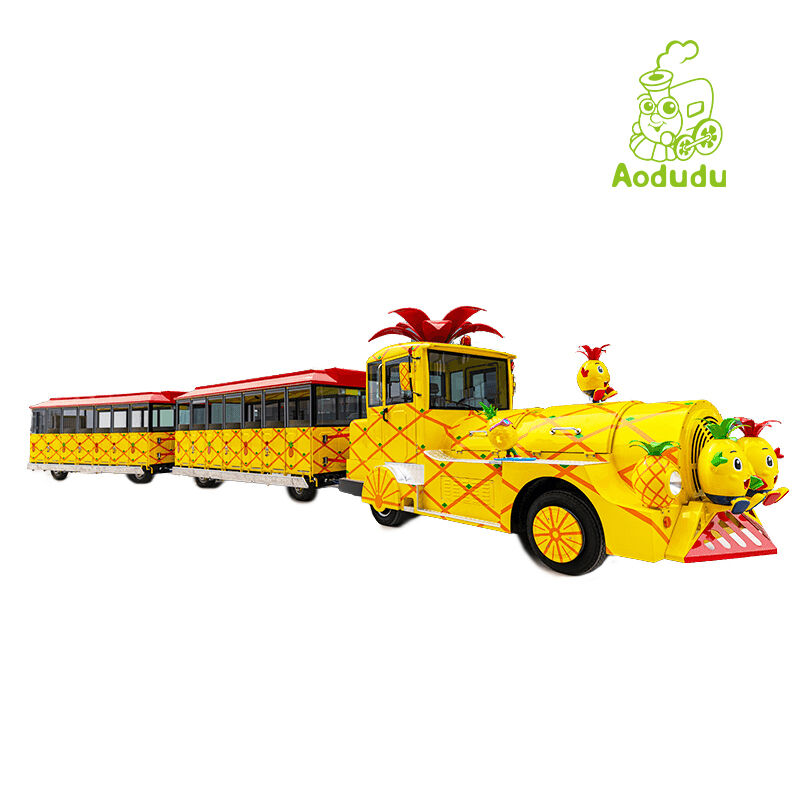

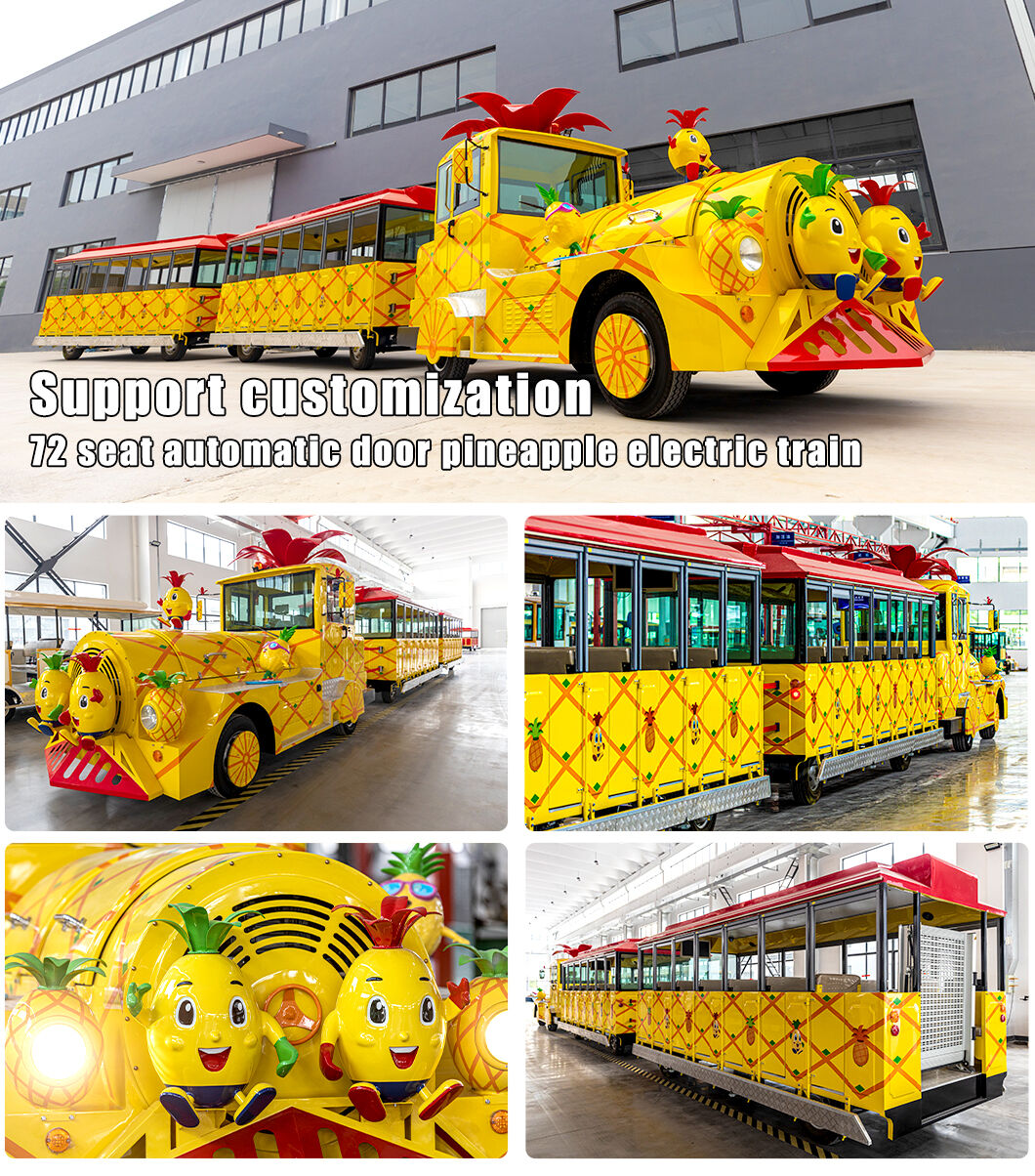

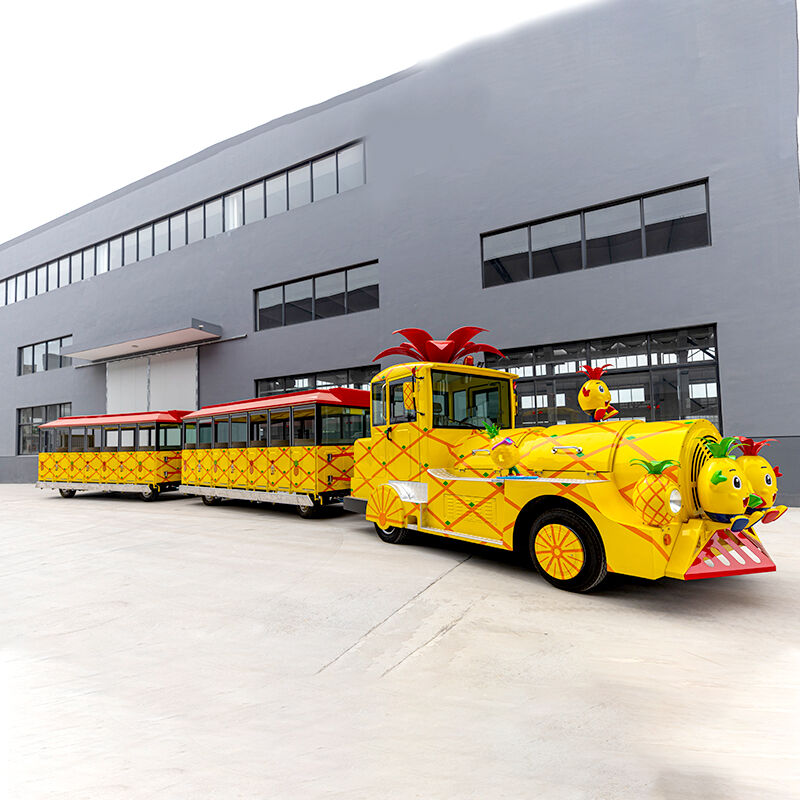

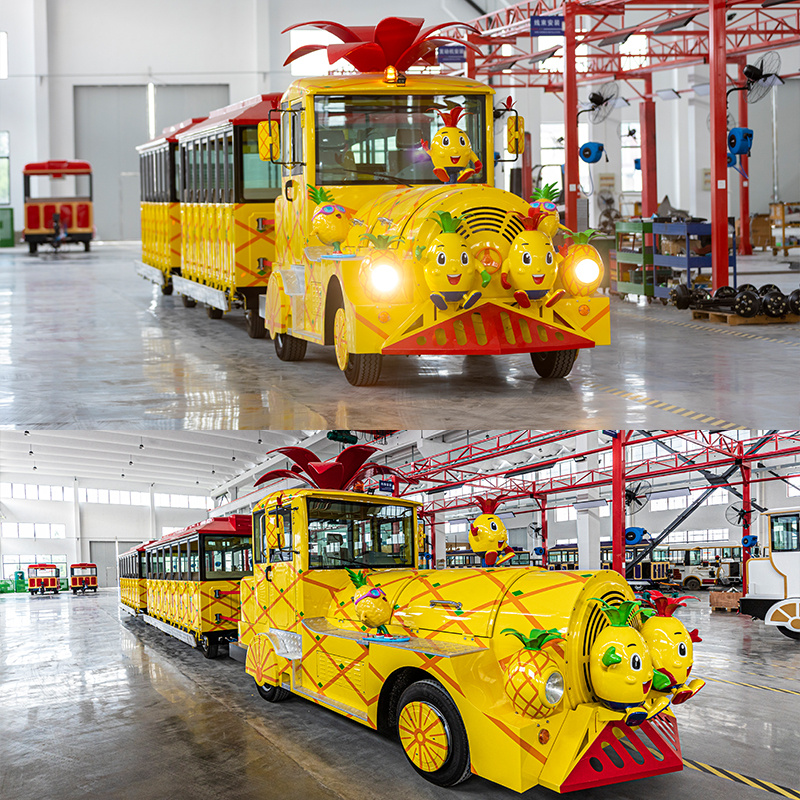

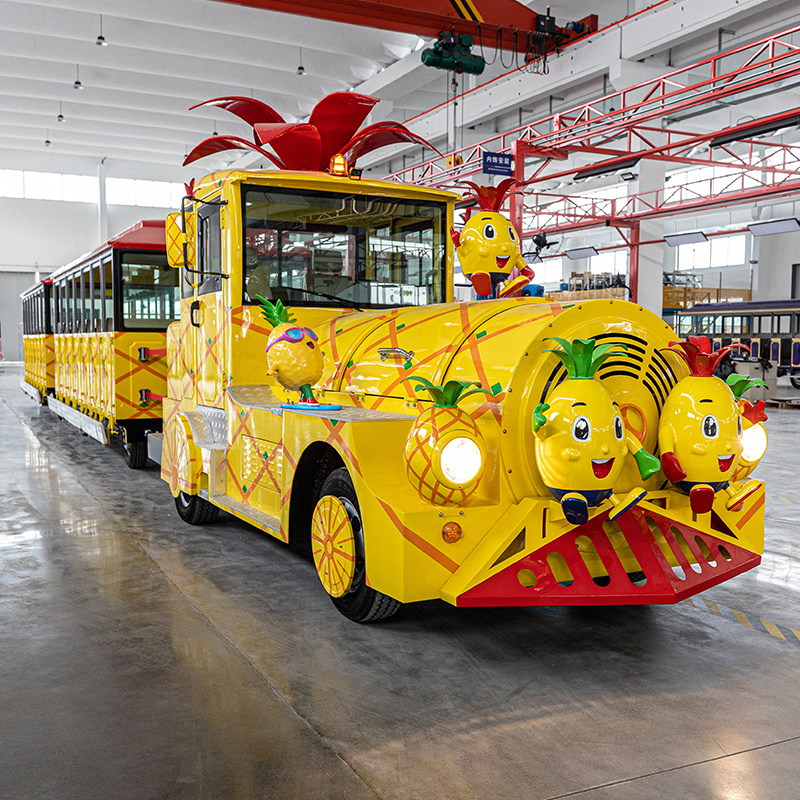

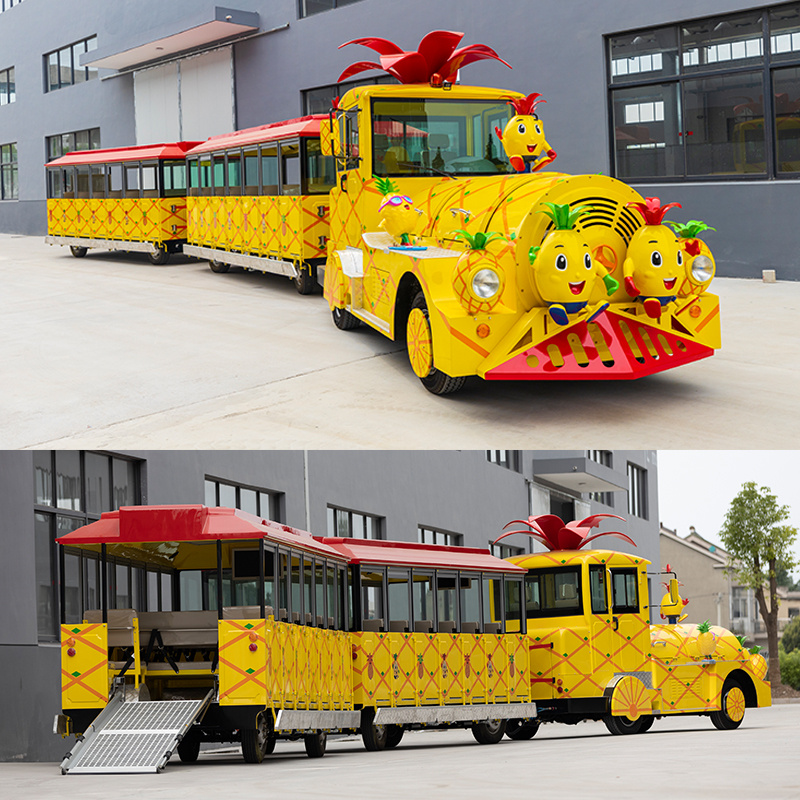

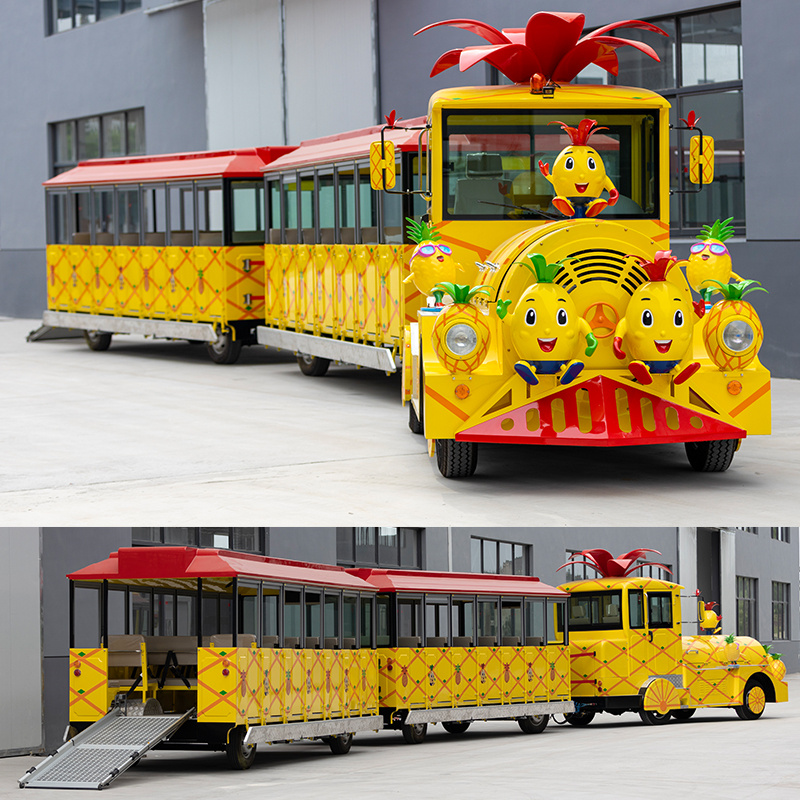

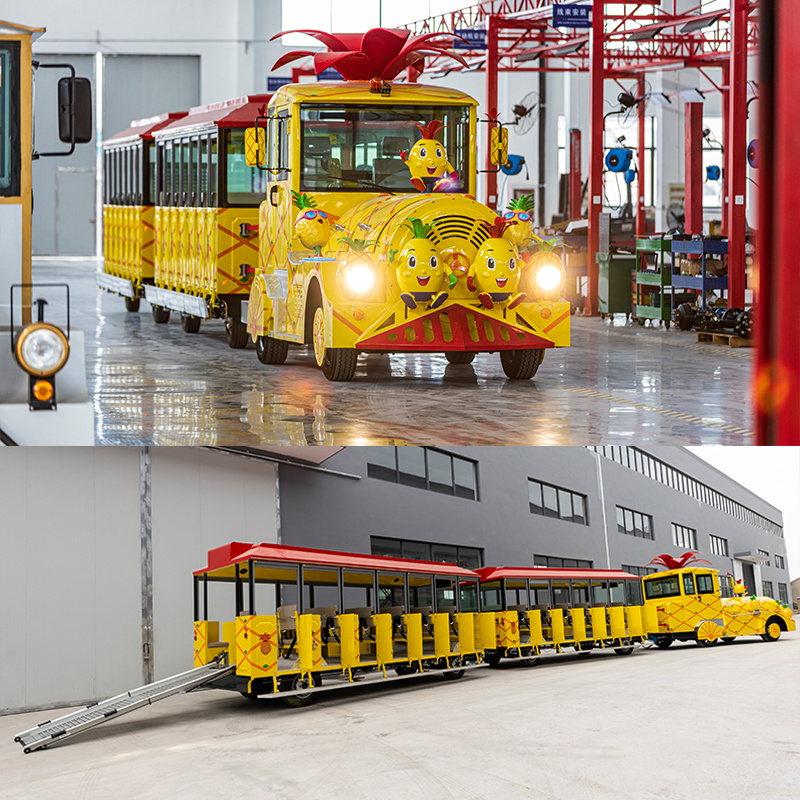

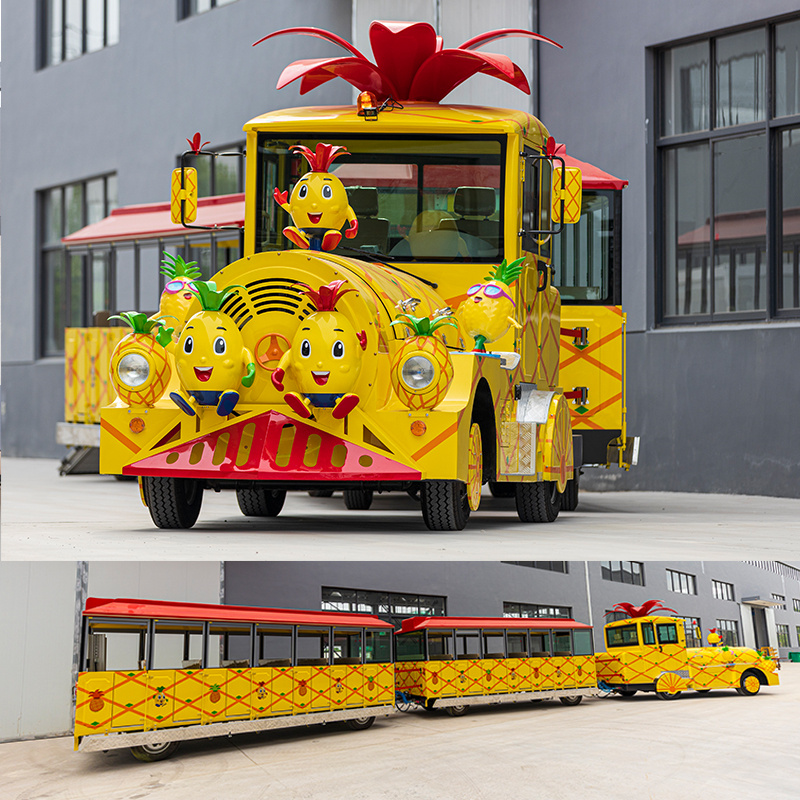

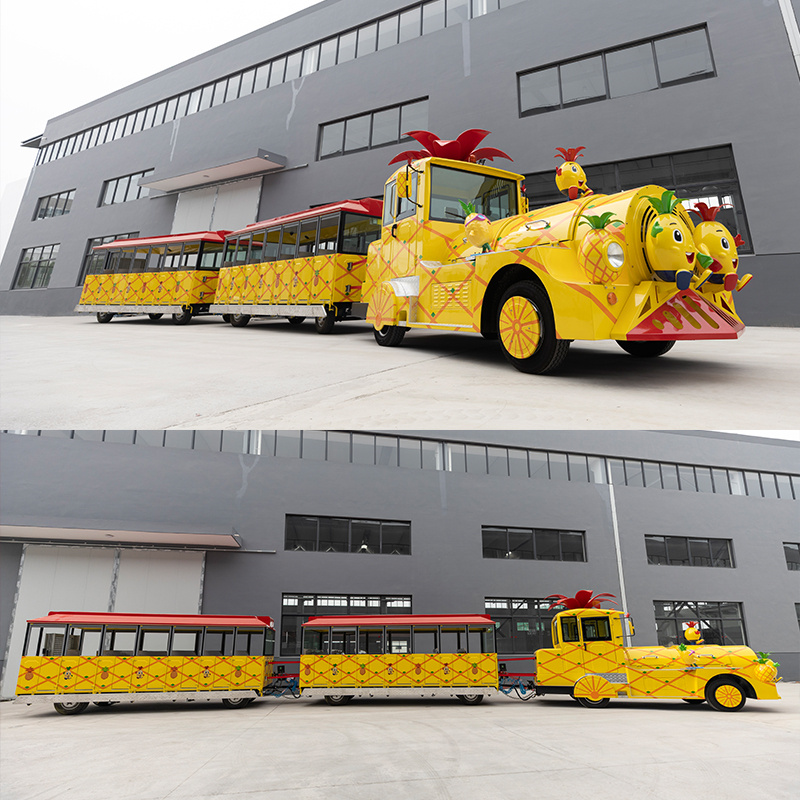

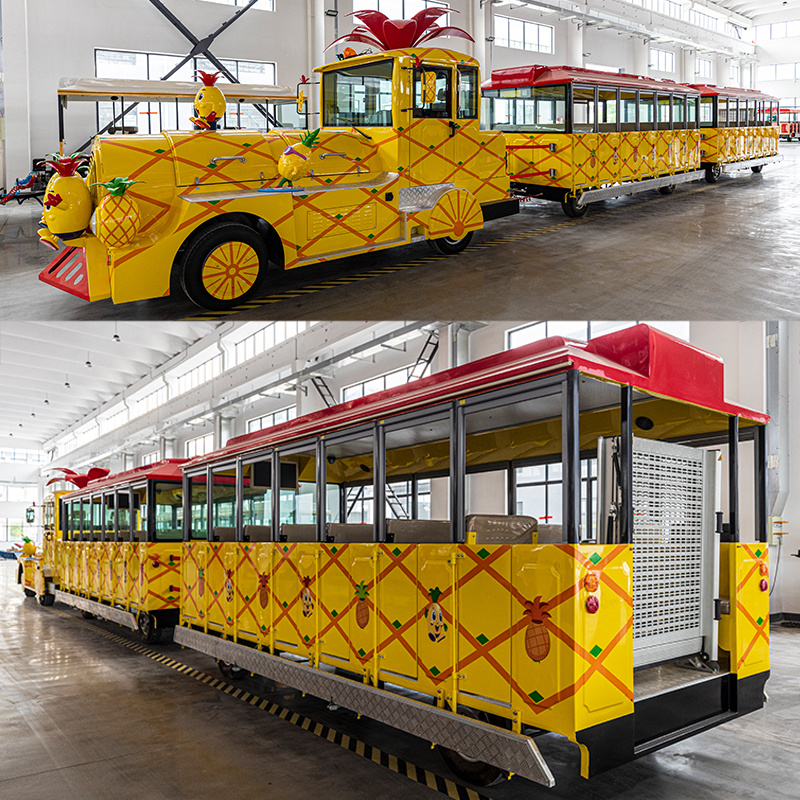

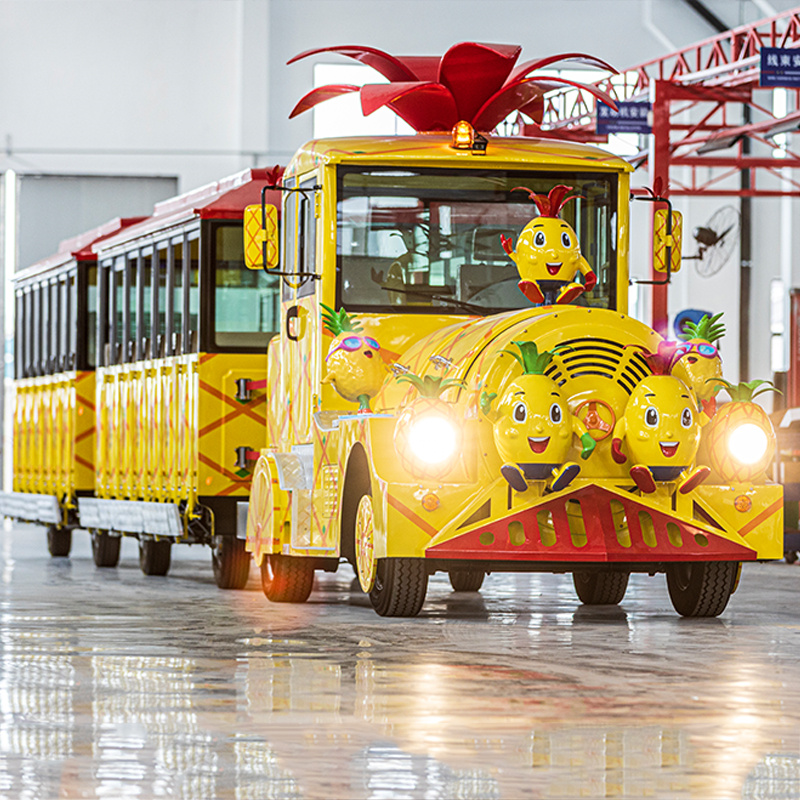

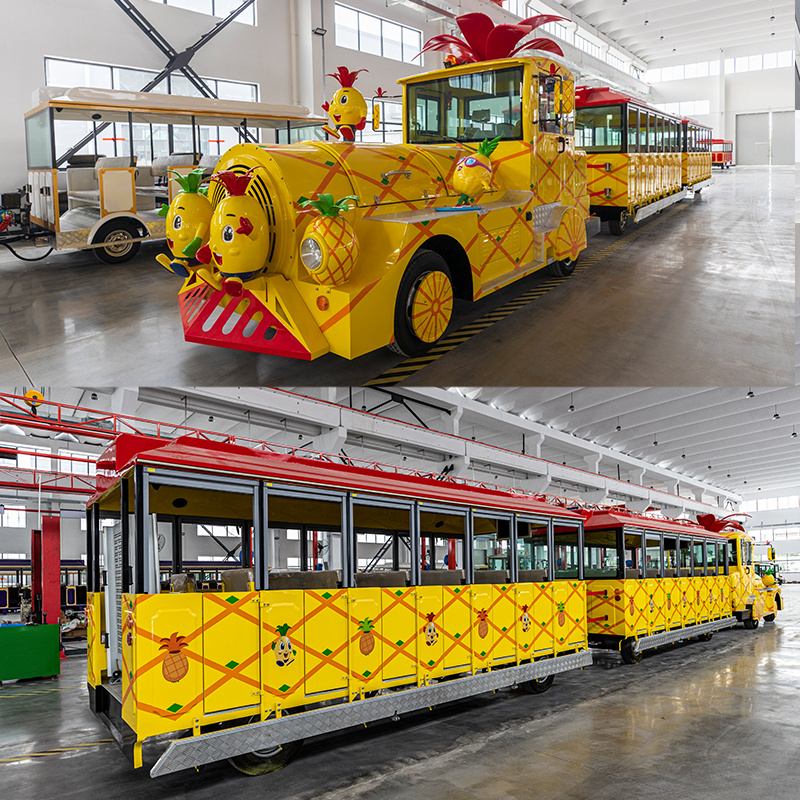

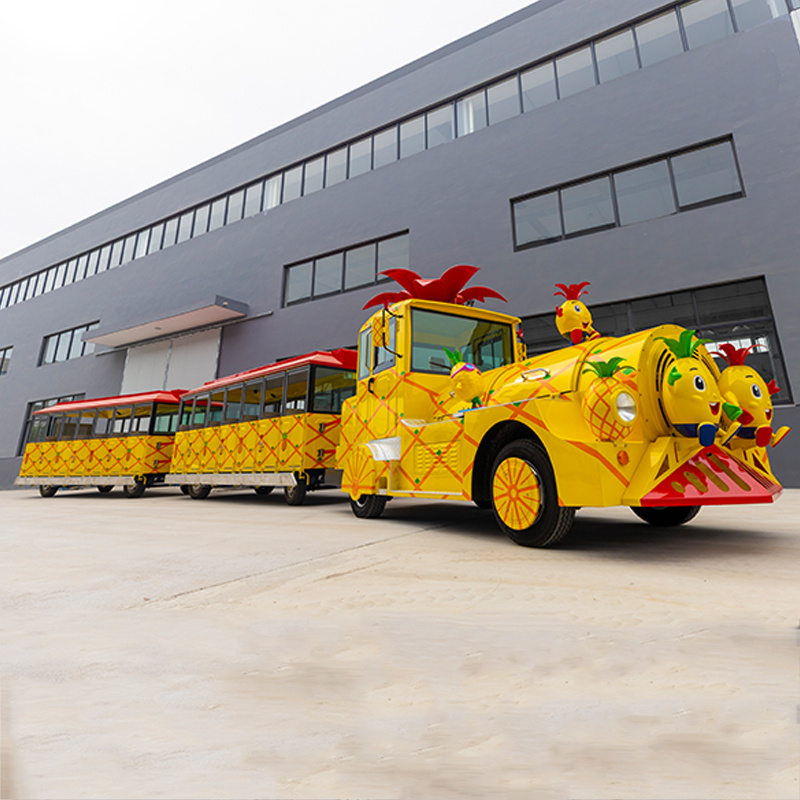

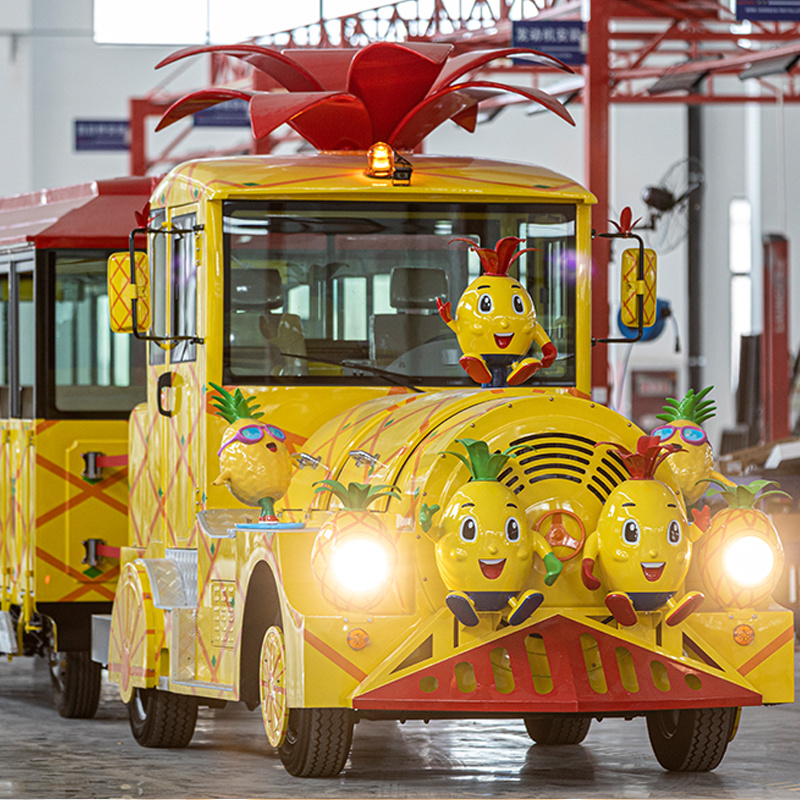

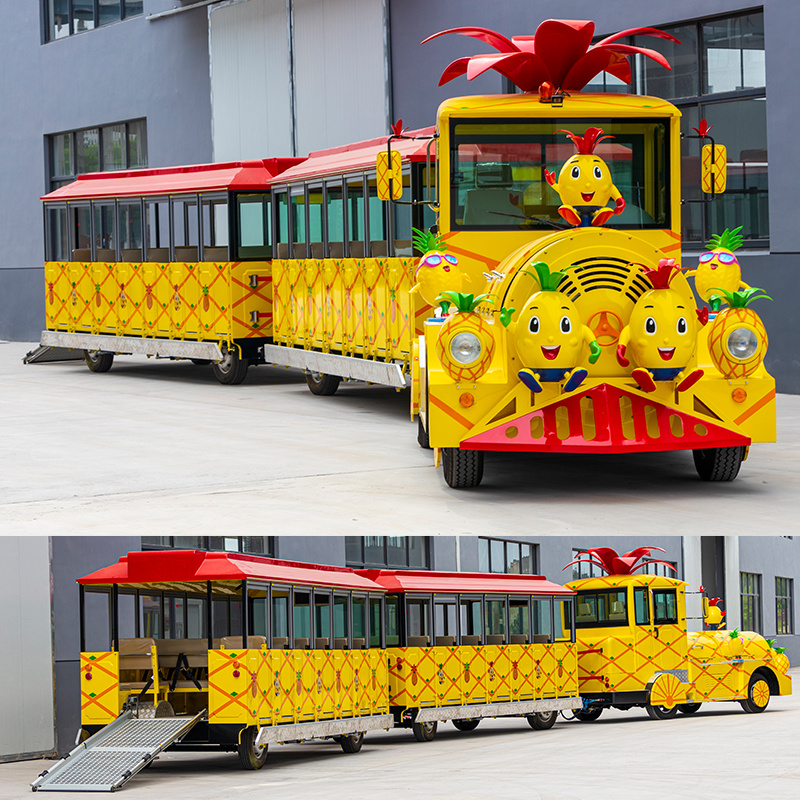

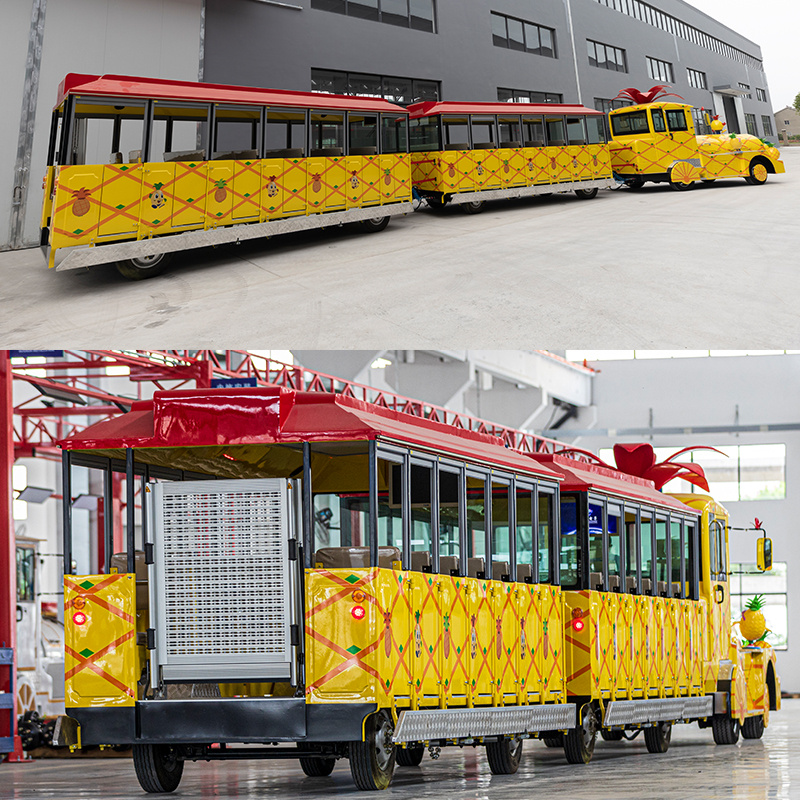

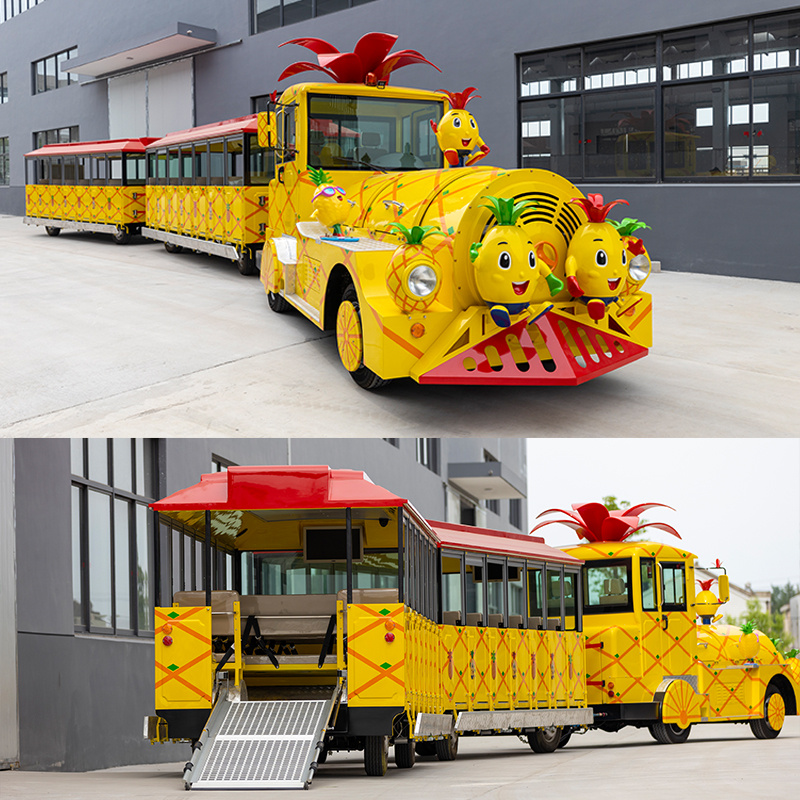

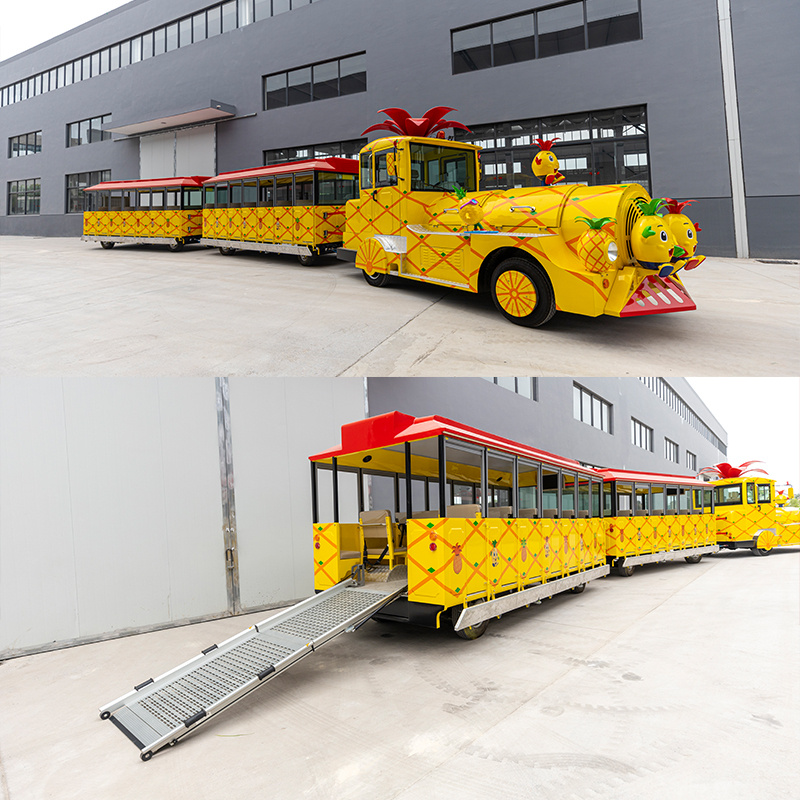

The ALGD-CT-72 changes the game. This 72‑seat electric trackless train features a playful pineapple‑shaped locomotive front, inspired by Japanese character culture. Combined with automatic sliding doors and a vibrant yellow‑green finish, it turns everyday guest transport into a photo‑worthy attraction that kids beg to ride.

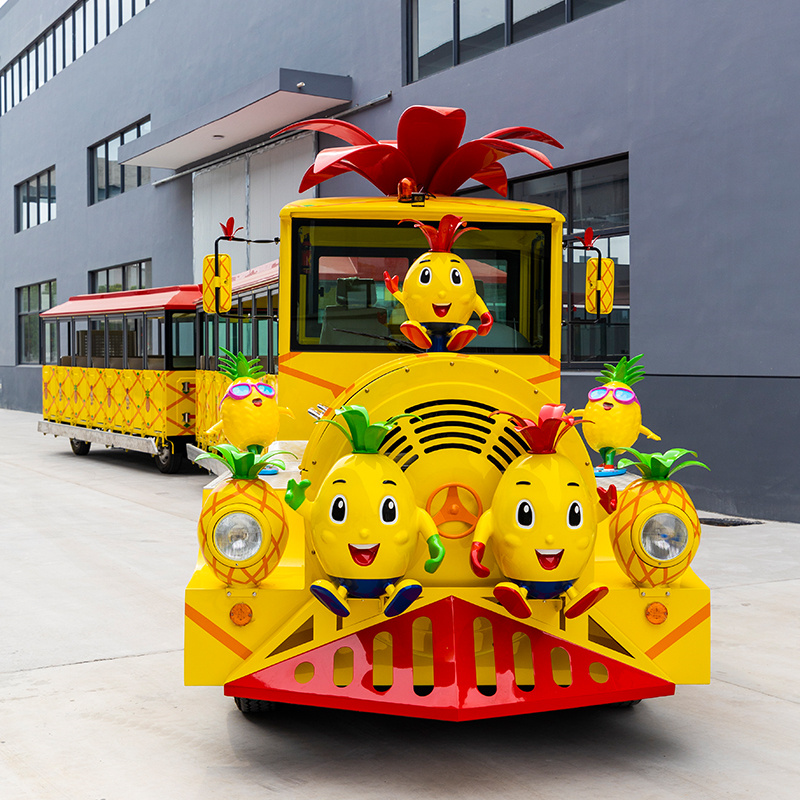

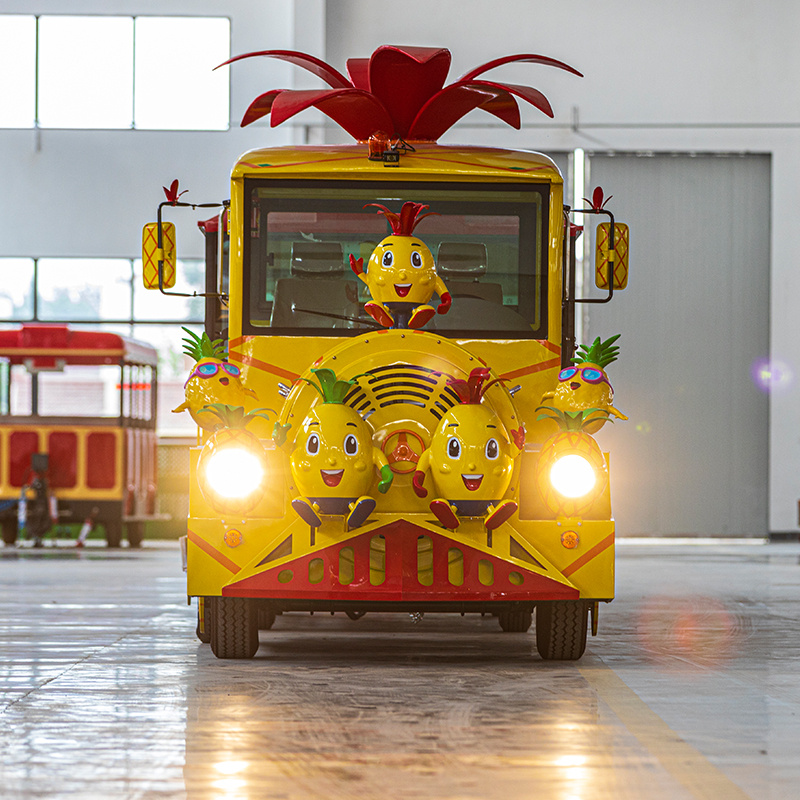

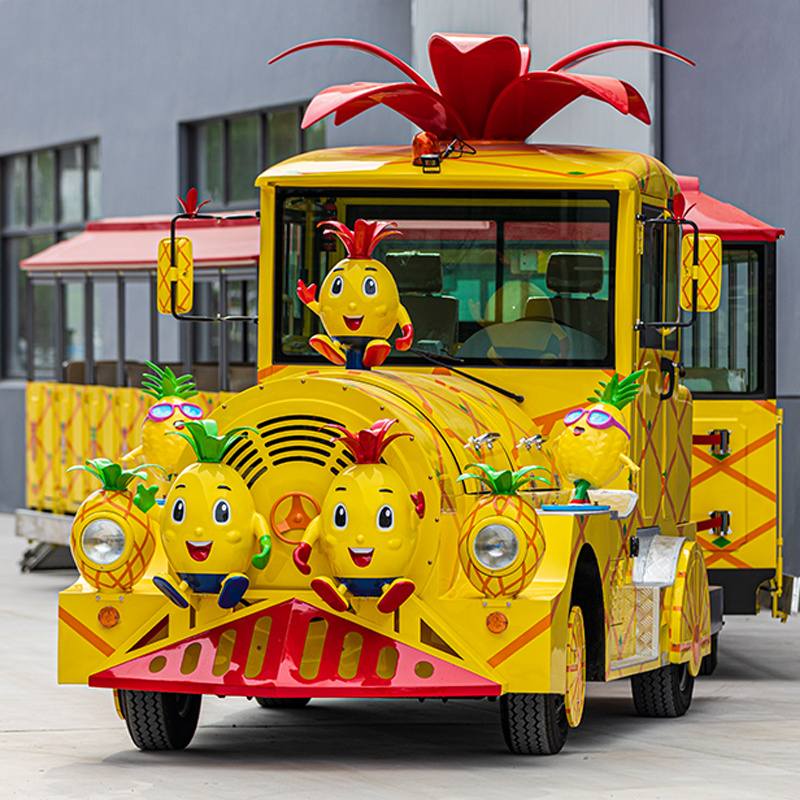

Unique pineapple theming – Custom‑molded front end, fruit‑inspired decals, and cheerful color scheme
72‑passenger high capacity – Ideal for peak seasons, reducing queue times and increasing throughput

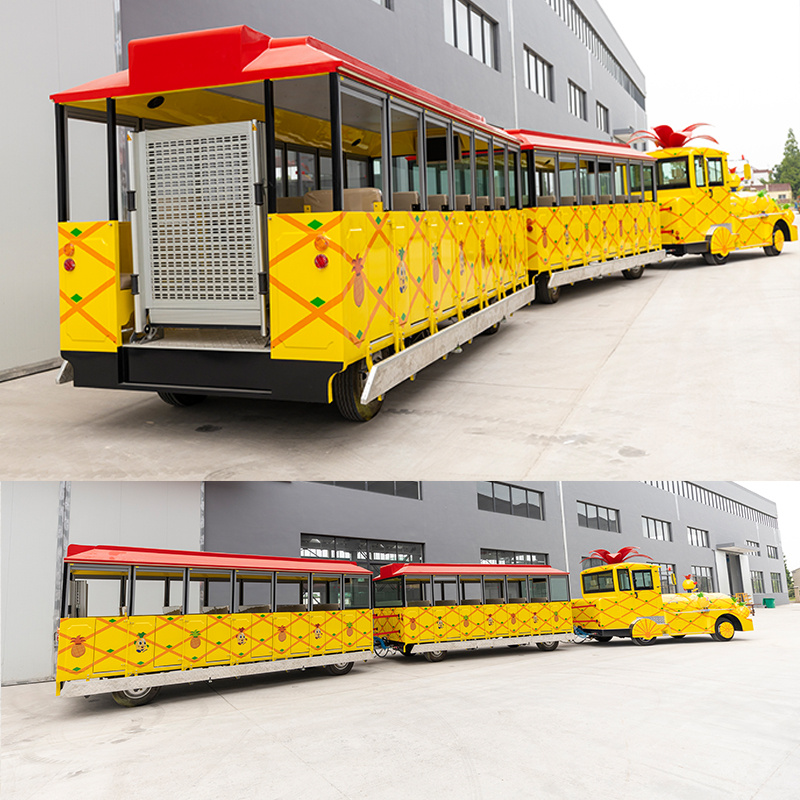

Automatic sliding doors – Safe, efficient boarding for large family groups
Full OEM customization – We realize your character or mascot designs, from concept to finished vehicle
Zero‑emission electric drive – Quiet, clean operation suitable for indoor/outdoor use
End‑to‑end quality control – In‑house welding, painting, electrical integration, and dynamic testing
Global logistics support – Modular packaging, installation guidance, and after‑sales documentation
Our themed electric trains have been delivered to shopping malls in the Middle East and scenic spots in Europe. The ALGD-CT-72 can become your park’s most Instagrammable ride.
Want to create a character train that visitors love? Contact us for a design consultation – your theme, our execution.
Basic Parameters | |||||
Model |
ALGD-F |
Overall Dimensions (including traction) |
15900*1960*2410mm(±50mm) |
||
Train Composition |
Locomotive + Carriage 1 + Carriage 2 |
Passenger Capacity |
2+20+20=42 persons |
||
Body |
All-metal body + sheet metal stamping + electrophoretic coating + computerized paint mixing + professional spraying |
||||
Roof & Floor |
Steel frame structure + double-layer roof + aluminum non-slip floor |
||||
Locomotive |
Dimensions |
4700*1960*2410mm(±50mm) |
Carriage |
Dimensions |
4500*1920*2410mm(±50mm) |
|
Curb Weight |
1880kg |
|
Curb Weight |
1320kg per carriage |
|
Front/Rear Track |
1400/1400mm |
|
Front/Rear Track |
1320/1320mm |
|
Wheelbase |
2600mm |
|
Wheelbase |
2600mm |
|
Front/Rear Overhang |
1110/1170mm |
|
Front/Rear Overhang |
900/900mm |
|
Suspension System |
Leaf spring non-independent suspension |
|
Suspension System |
Leaf spring non-independent suspension |
|
Steering Mode |
Electric power steering |
|
Steering Mode |
Positioned locomotive, four-wheel simultaneous steering |
|
Service Brake |
Air-hydraulic combined brake |
|
Service Brake |
Air-hydraulic combined brake |
|
Parking Brake |
Pneumatic control + mechanical actuator |
|
Parking Brake |
Pneumatic control + mechanical actuator |
|
Drive Mode |
Rear-engine rear-wheel drive |
|
Type |
Open carriage |
|
Tire Size |
195R14 |
|
Tire Size |
165R13 |
|
Driving Cab |
Adjustable seat + vacuum forming automotive-grade center console + refrigerated air conditioner |
|
Seats |
High-resilience PU seats |
|
|
|
|
Floor Height |
560mm (from ground) |
|
High-strength Chassis |
C-type manganese steel longitudinal beam + integral rear axle |
|
Two-step Step Height |
350mm (from ground) |
Traction System | |||||
Self-balancing drawbar, heavy-duty rotatable connector with automatic locking protection. | |||||
Power System | |||||
Battery |
460AH LiFePO4 battery, rated voltage 73.6V (Equipped with BMS battery management system, real-time battery status monitoring, extended service life) |
||||
Motor |
72V/15kW AC natural cooling motor, S2 duty cycle; Rated speed 3840r/min, IP54 protection, insulation class H. |
||||
Controller |
72V/500A fully intelligent electronic commutation AC induction controller |
||||
Charger |
Full-automatic intelligent charger |
||||
DC-DC Converter |
400W, input 72V, output 14V |
||||
Performance Parameters | |||||
Max. Speed |
20km/h |
Max. Braking Distance |
3.5m (initial speed 10km/h) |
||
Max. Gradeability |
7% (full load) |
Min. Turning Radius |
6.5m |
||
Driving Range |
Over 85km on flat road |
||||
Electrical System | |||||
Lights & Instrument |
Locomotive equipped with headlight, turn signal, brake light, warning light, electric horn, etc.; Dashboard displays current, speed, voltage, battery level, mileage, air pressure and various fault codes. |
||||
Monitoring |
5 HD 500G hard disk probes for coach, storage up to approx. 14 days. |
||||
Announcer |
GPS intelligent voice announcer |
||||
Display |
19-inch HD LCD display per carriage |
||||
Speaker |
4 speakers per carriage |
||||
Sound Effect |
High imitation train horn (real train sound) |
||||
Audio |
Car MP6 player, 4*50W, compatible with SD/TF/USB, gold-plated RCA audio output; Digital FM radio, fully electronic tuning, 18 preset stations auto scan & storage. |
||||
Safety Configuration | |||||
Safety Chain |
304 stainless steel safety chain at passenger exit of each carriage. |
||||
Exit Button |
Emergency exit button at passenger exit of each carriage. |
||||
Intercom |
Intercom for two-way communication between driver and safety officer. |
||||
Others |
Fire extinguisher; two-point seat belt; safety handrail; safety signs. |
||||
Other Configuration | |||||
Shock Absorption |
Shock absorption device installed on locomotive and each carriage. |
||||
|
Note: 1. One-year whole vehicle warranty. 2. Free set of tools and one 3-ton horizontal jack. 3. Complete registration documents, certificate and user manual included. 4. Customization service available: configuration and appearance design per customer requirements. | |||||
