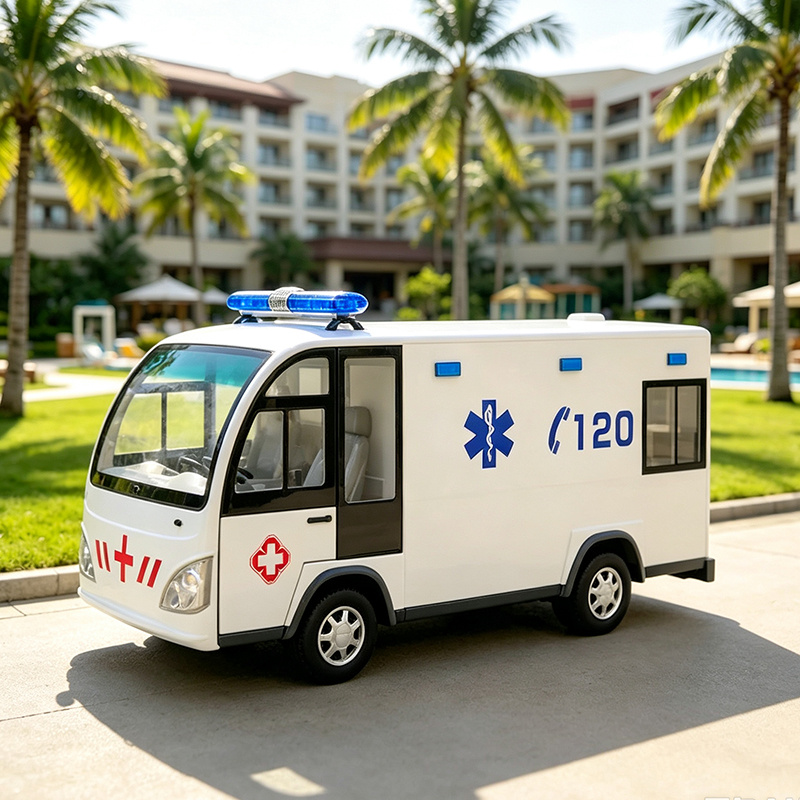

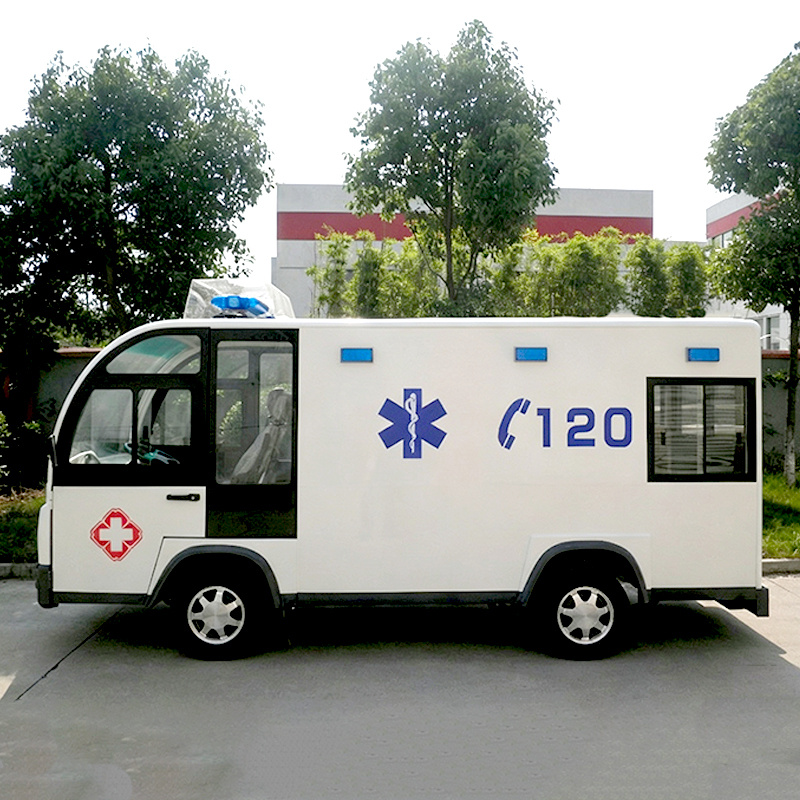

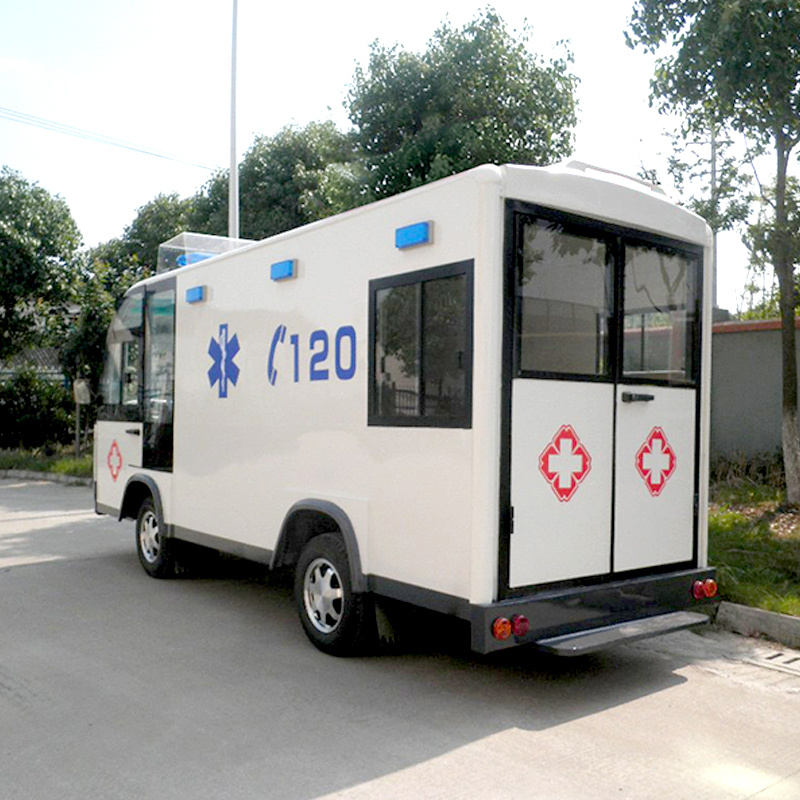

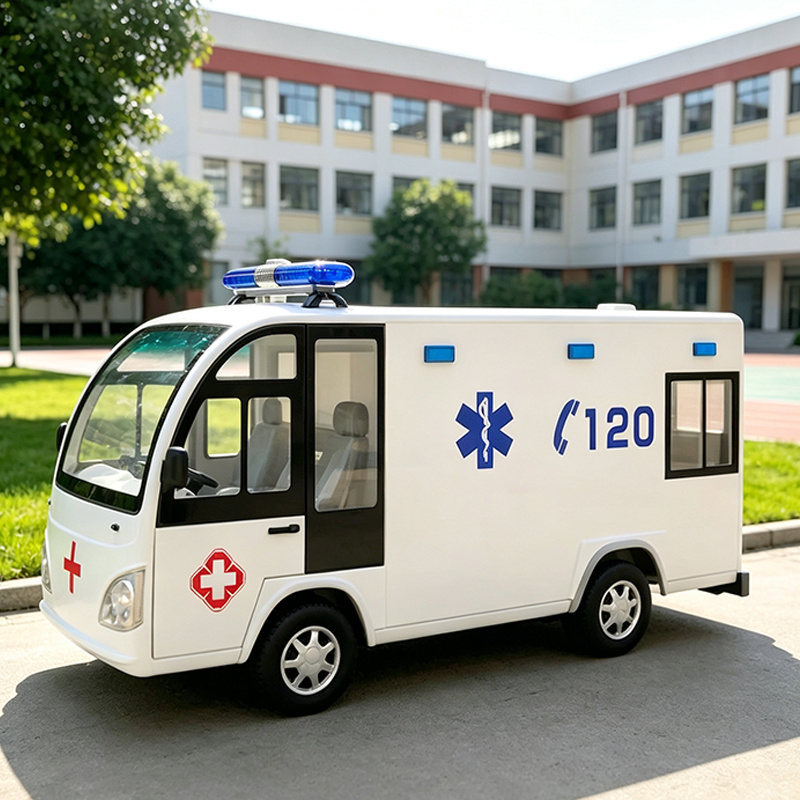

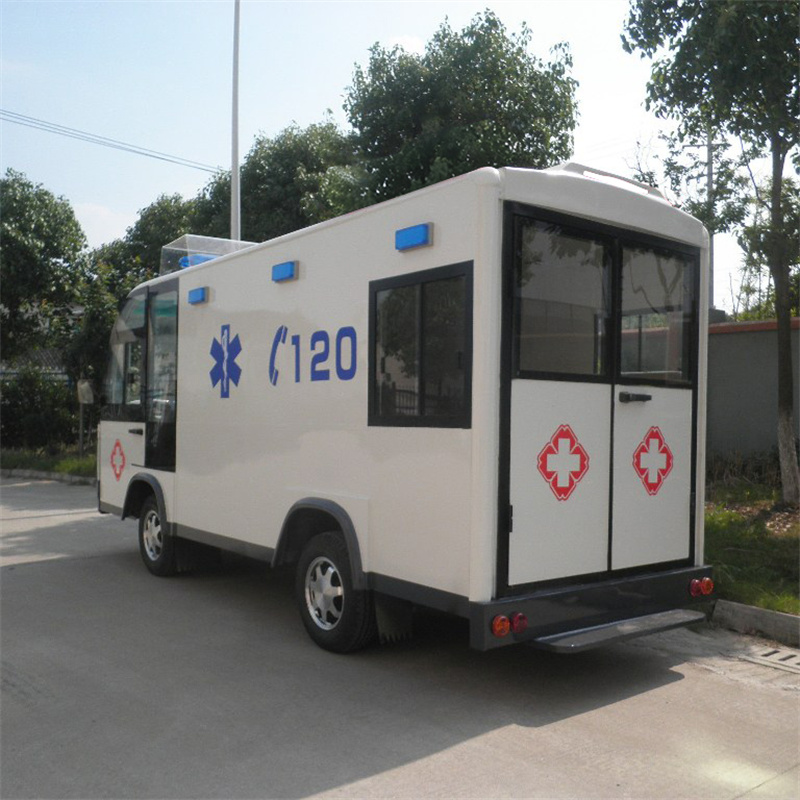

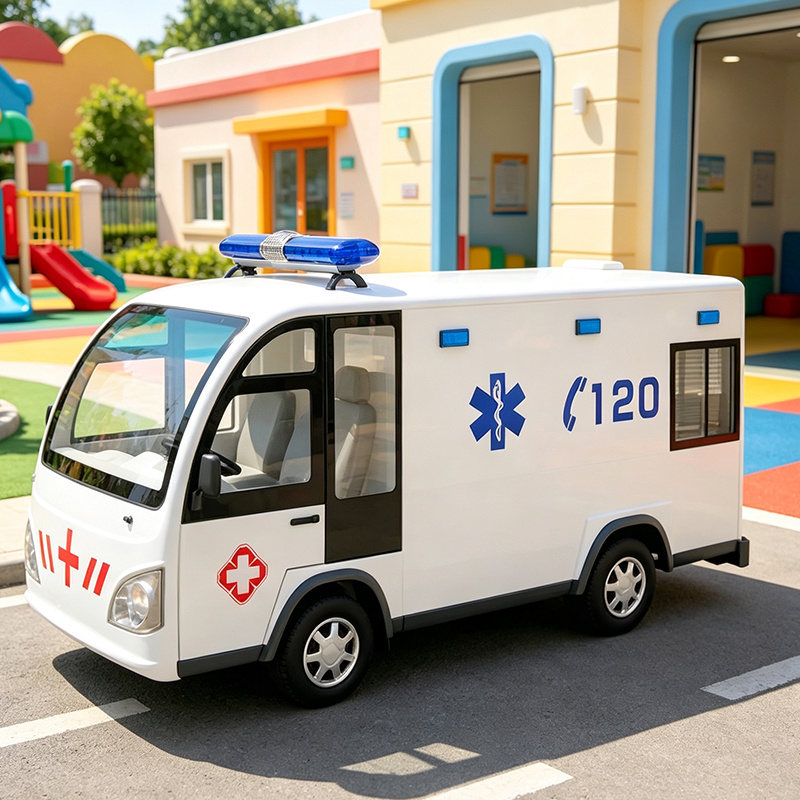

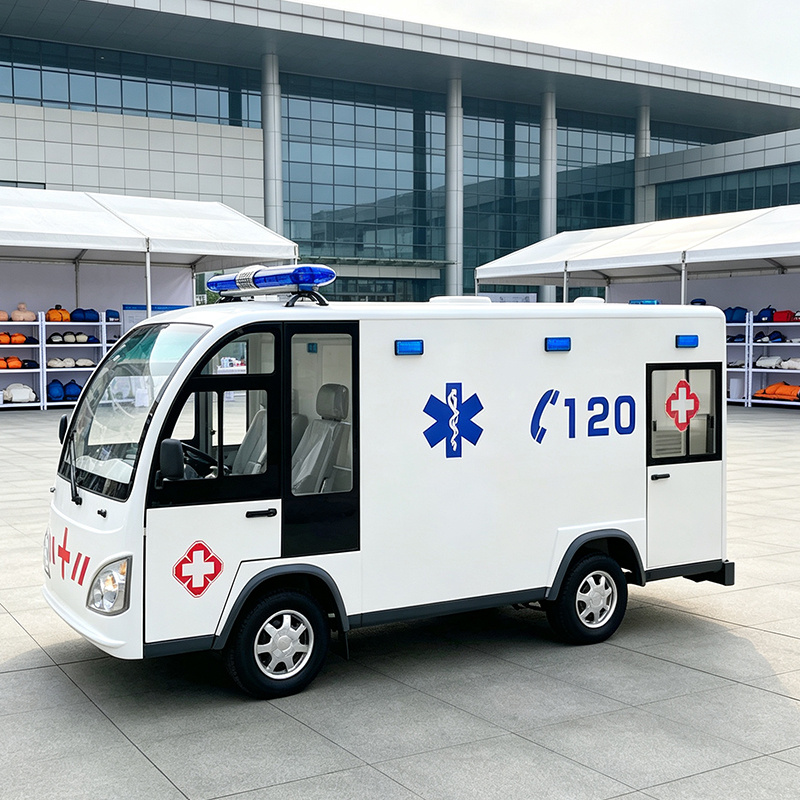

| Model | AL-T4(electric ambulance) | ＊Range will vary depending on temperature, grade, payload and driving style | |
| System | 48v/7.5kw | ||
| FOB Shanghai | |||
| Key Components | |||
| Battery | Sealed lead- gel battery 8pcs*6V/200AH | ||
| Motor | 7.5kw AC motor | ||
| Controller | Chinese standard AC controller | ||
| Performance | |||
| Passenger capacity | 2adults+8kids | ||
| Range (loaded) based on flat road at a speed of 10km/h (km)＊ | ≥60 | ||
| Max. speed (km/h) | 5-10 (recommend) | ||
| Minimum turning radius (m) | 6.5 | ||
| Max. climbing ability (loaded) | 20% | ||
| Max. movement after brake at speed of 10 km/h | ≤3m | ||
| Max. loading weight | 1000kgs | ||
| Net weight | 800kgs | ||
| Dimensions | |||
| Overall dimensions (mm)with roof light | 4400*1470*2050 | ||
| Min. ground clearance (mm) | 150 | ||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | |||
| Body and Frame | |||
| Frame | aluminum alloy frame,cross beam, side guard panel | S | |
| Body | steel with anti-rust treatment | S | |
| Roof | Fiber glass | S | |
| Windshield | Laminated glass with wiper | S | |
| 2point seat belt | yes | S | |
| Floor | aluminum alloy anti-slippy | S | |
| Inner rear view mirror | One piece per cart in the middle of the windshield | S | |
| Side rear view mirror | Two pieces per cart | S | |
| Electric system | |||
| Lighting system and horn | Front: 2 Headlights (High beam and dipped headlight), 2 front turn signals, 2 fog lights; Back: 2 rear turn signals, 2 taillights(position light & brake light), 1 fog light, 1 reverse light),with DC-DC converter (converting from 48V to 12V) , horn. | S | |
| Dashboard | Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, fog light switch; Headlight switch, turn signal switch, wiper switch, horn button; | S | |
| Audio System | Radio and MP3 receiver | S | |
| Alarming light | yes | S | |
| Speaker | 2pcs | S | |
| Reversing alarm | yes | S | |
| Switch assembly | Lights switch, horn switch, wiper switch | S | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 30A | S | |
| Steering and Suspension | |||
| Steering system | Four-way adjustable steering column, rack-and-pinion steering gear with power steering | S | |
| Brake system | Front and rear hydraulic drum brakes, dual-circuit hydraulic braking system, and parking brake mechanism | S | |
| Transmission system | Stepless transmission | S | |
| Front suspension | integral front drive axle, leaf spring independent suspension | S | |
| Rear suspension | integral type rear axle, leaf spring independent suspension | S | |
| Wheel & rim | radial tires, size 155R12C, 8PR (8-ply rating), alum alloy rim | S | |
| Seat | cold‑foam padding + high‑resilience PU leather upholstery bench seats, adjustable driver's seat, and child seat belts | ||
| Container loading qty | Assembled | ||
| Qty/20'GP | 1unit | ||
| Qty/40'GP | 2units | ||

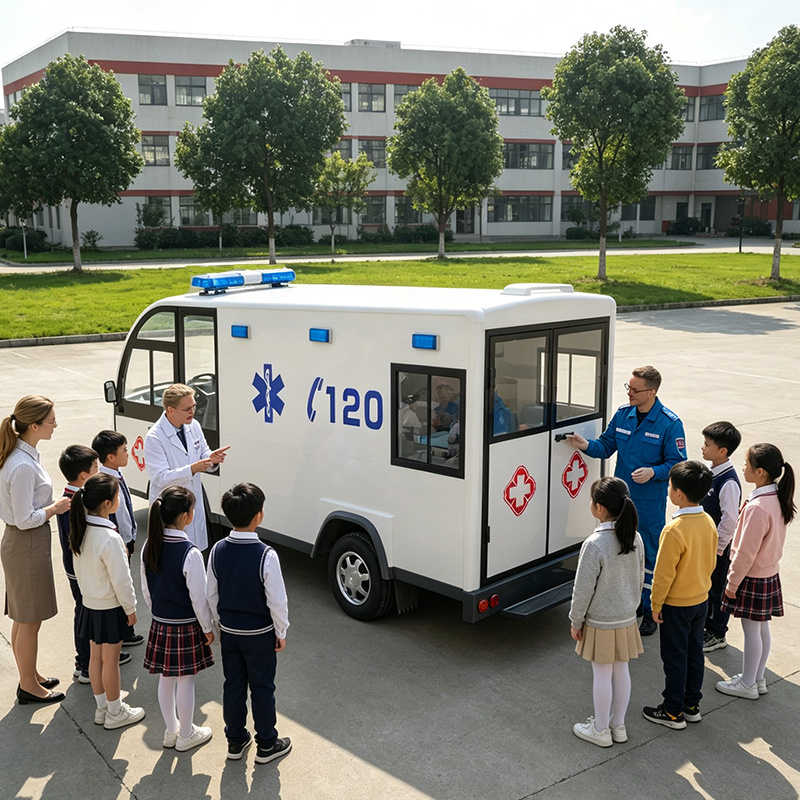

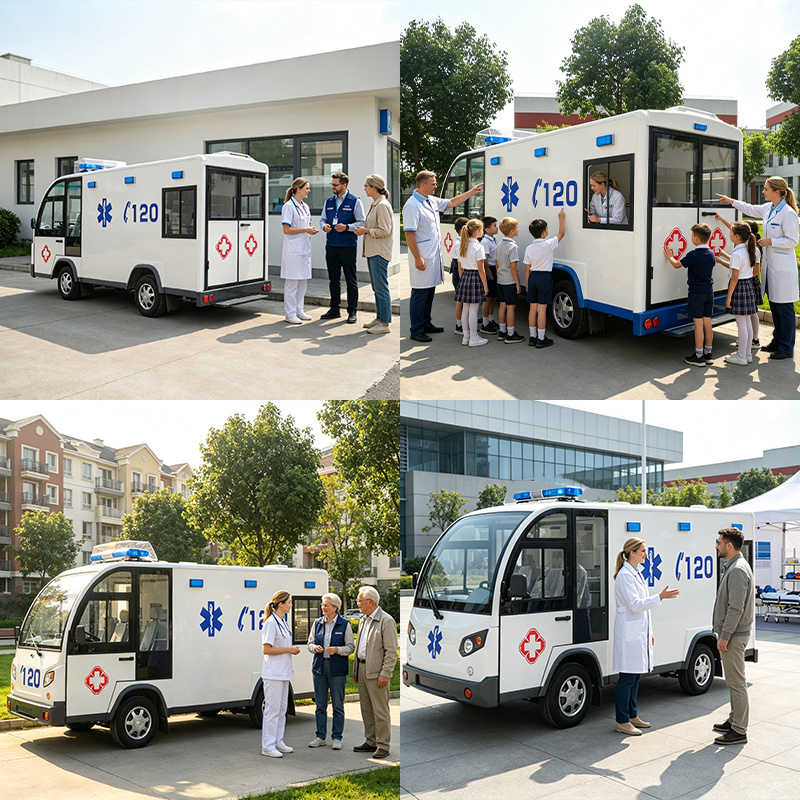

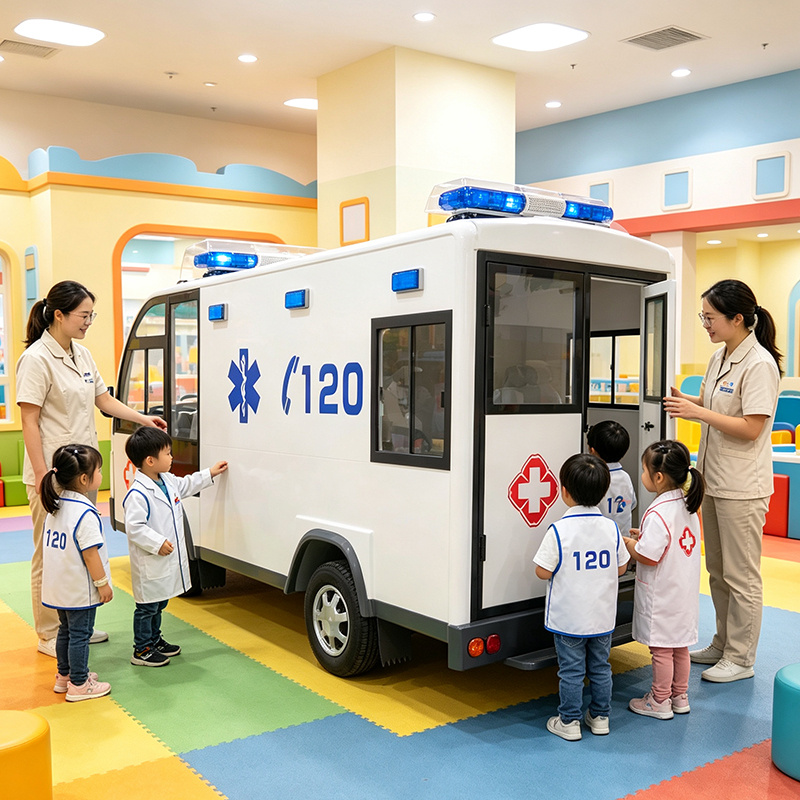

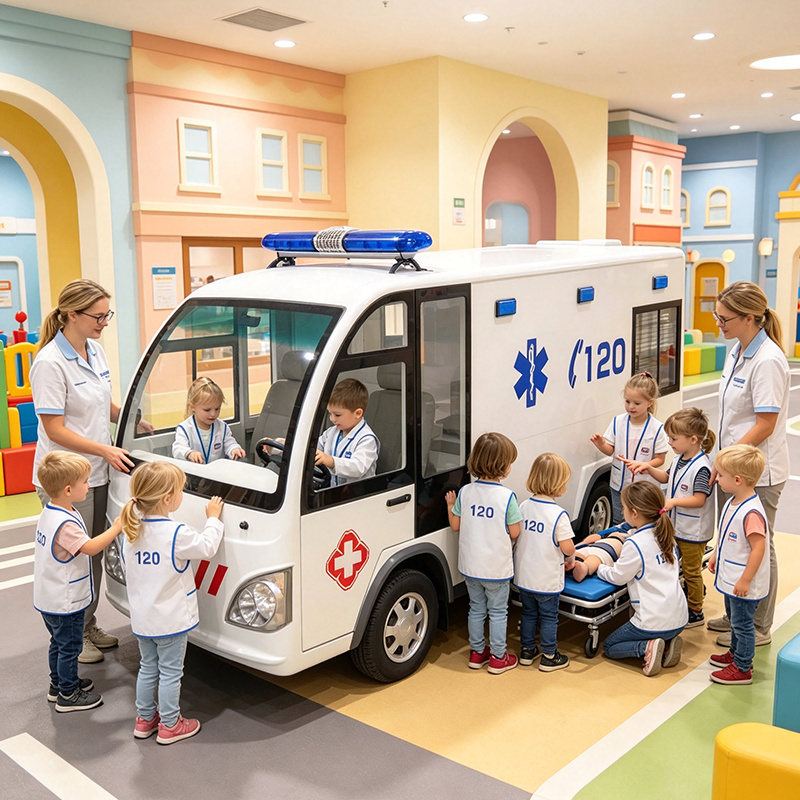

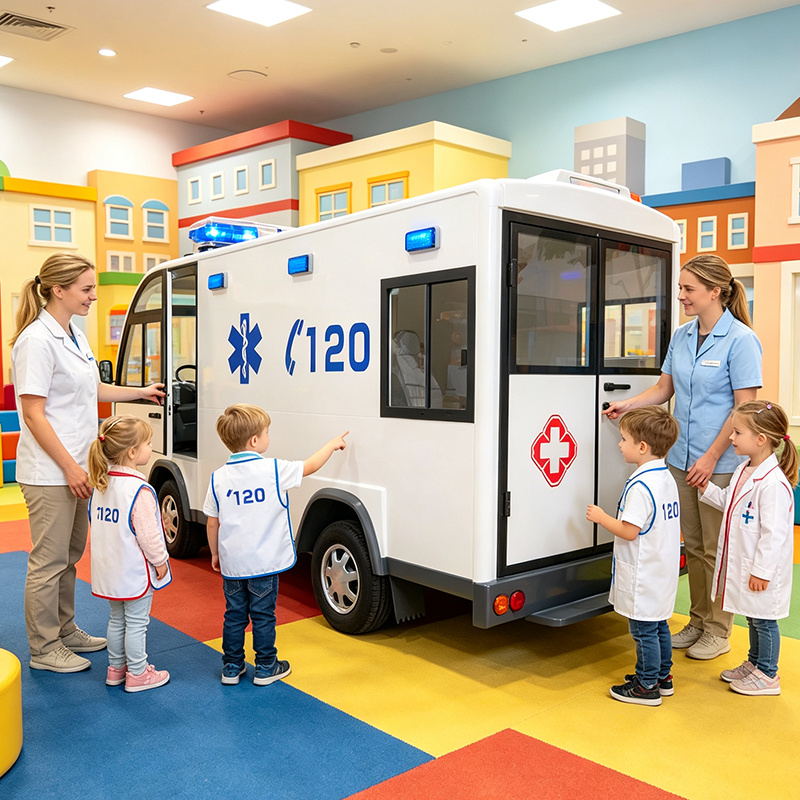

10-seat design with 2 adults and 8 kids capacity, perfect for children medical experience and first aid education activities
Zero-emission 48V battery electric drive, quiet operation, suitable for community, campus and indoor use without pollution
Compact body with 6.5m turning radius, flexible to navigate narrow roads in parks, resorts and large industrial zones
7.5kW AC motor with 60km long range, supports all-day medical patrol and transport duty inside closed areas

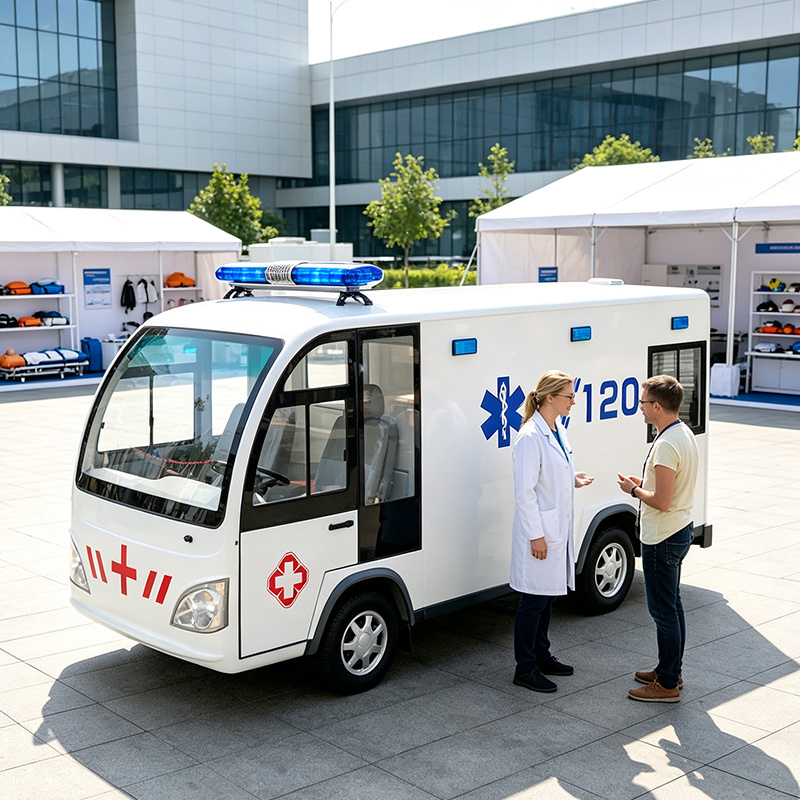

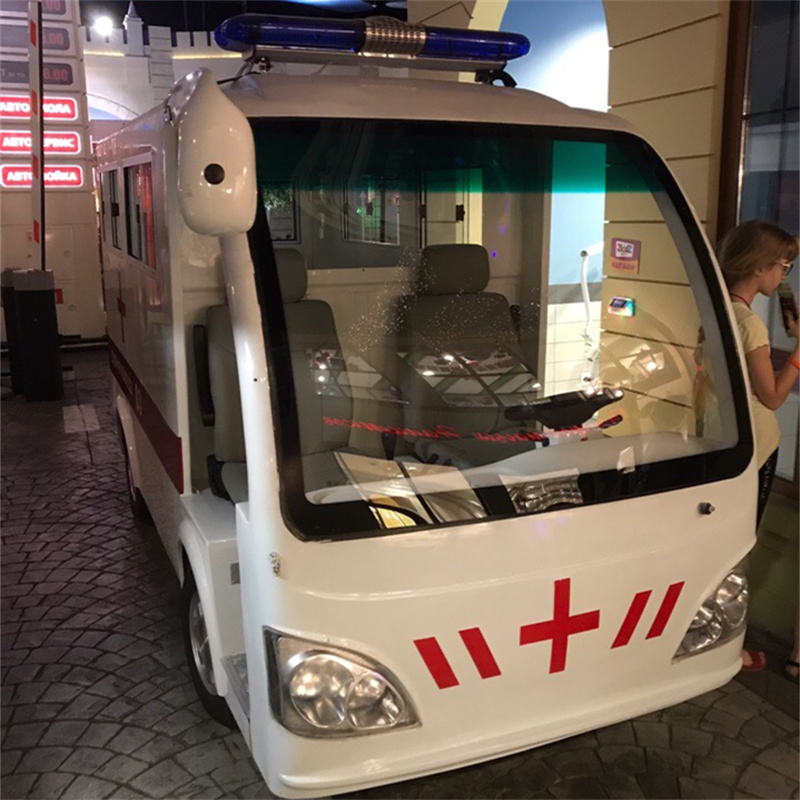

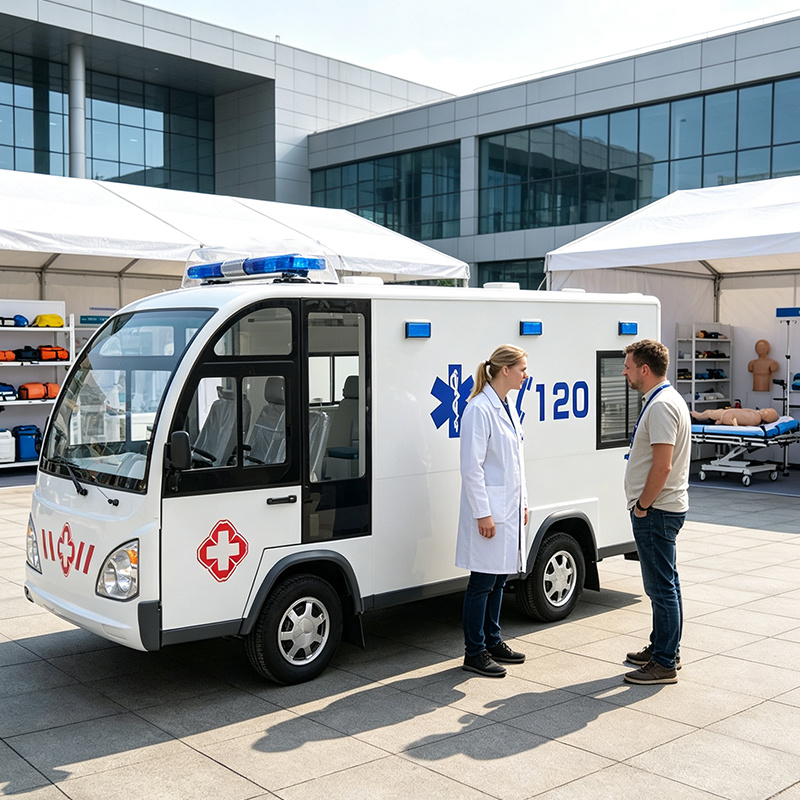

Complete emergency light and siren system, realistic ambulance appearance ideal for role-play centers and exhibition demonstration
Dual-circuit hydraulic brake system with 1000kg loading capacity, safe and stable for medical equipment and passenger transport
