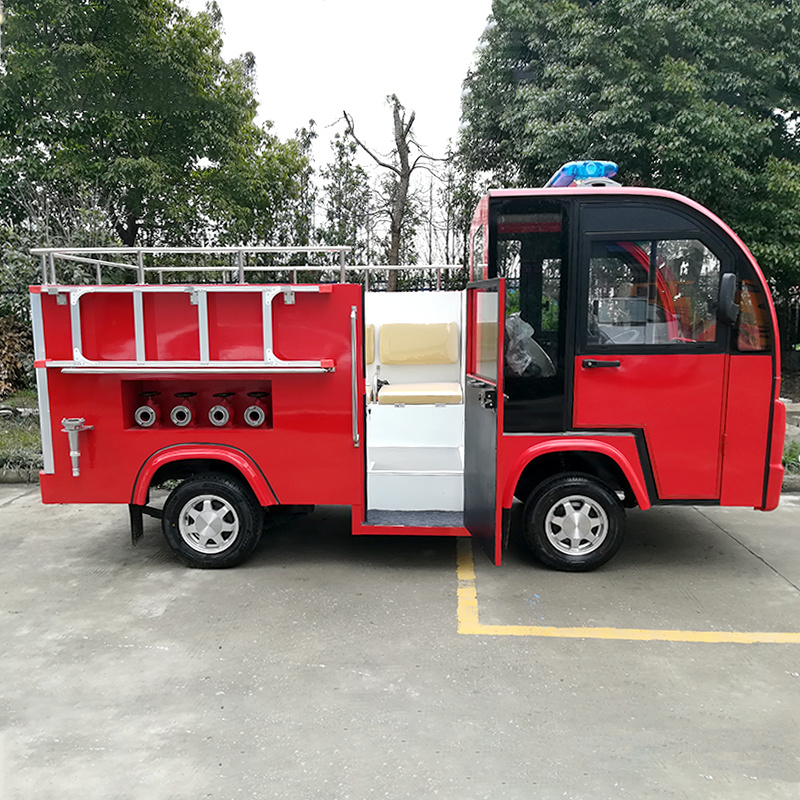

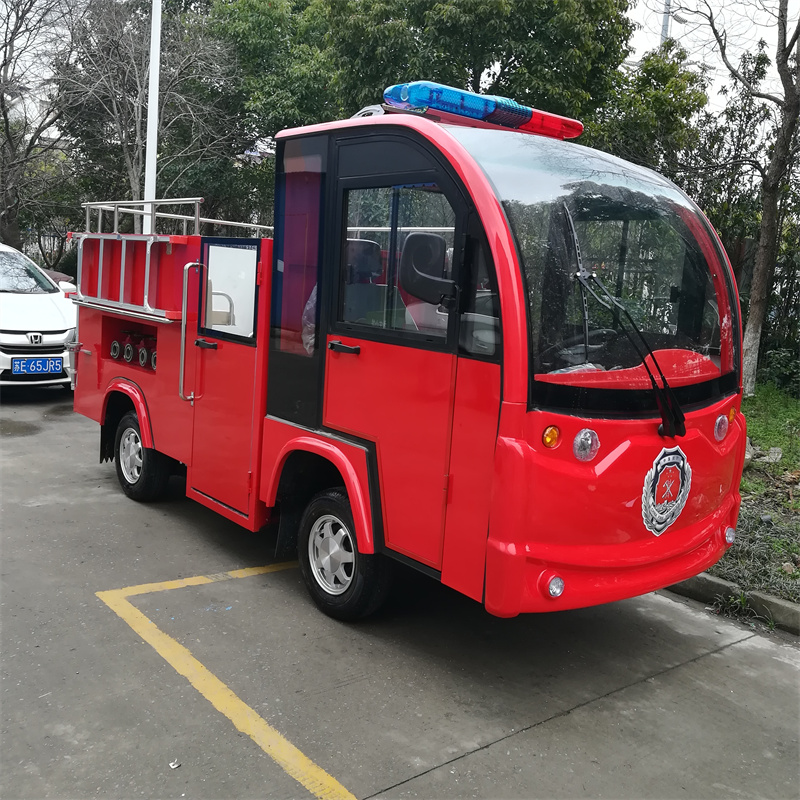

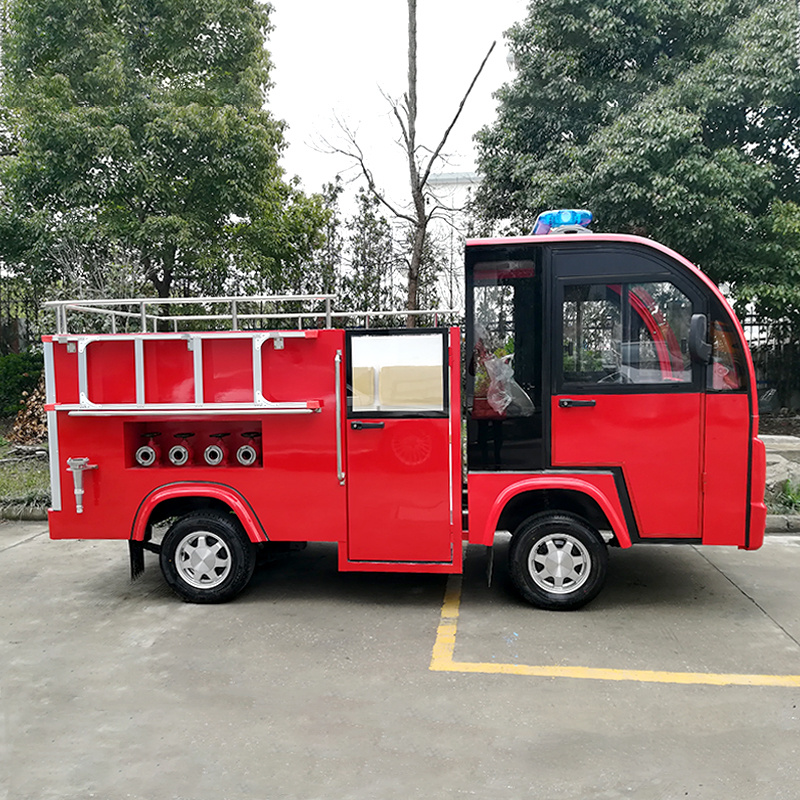

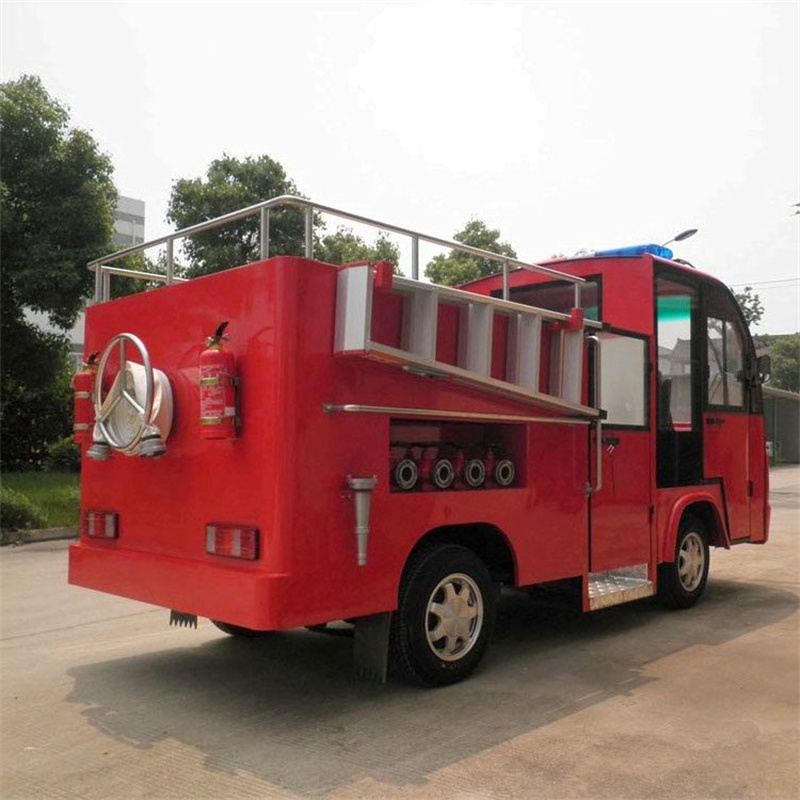

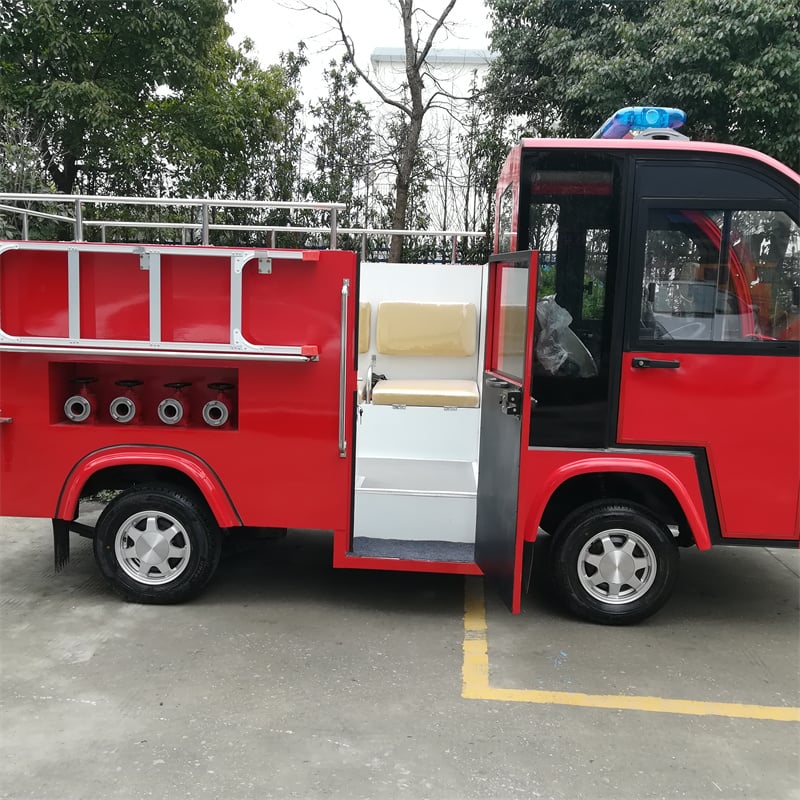

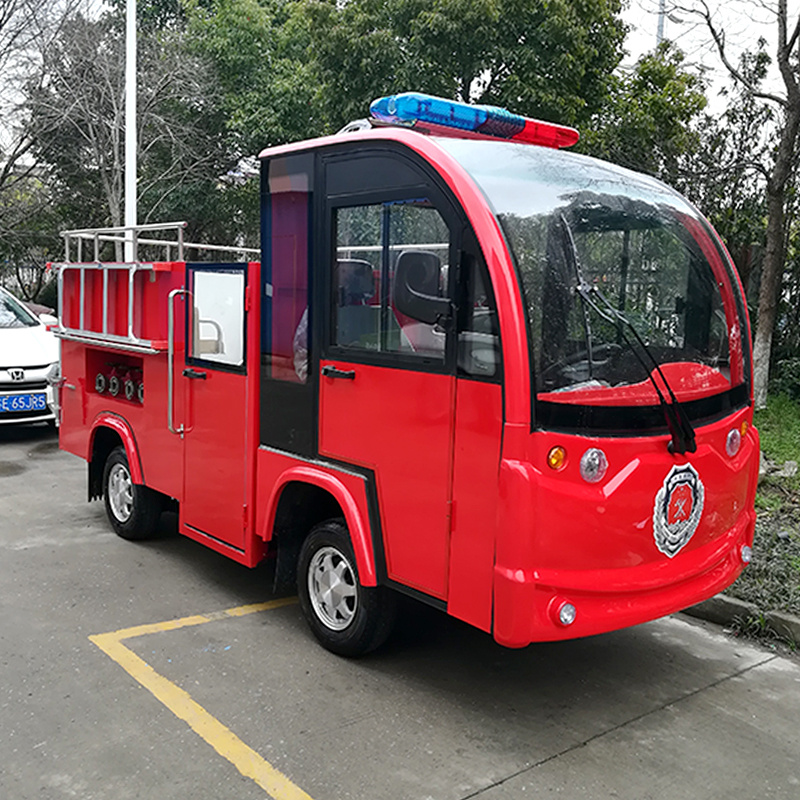

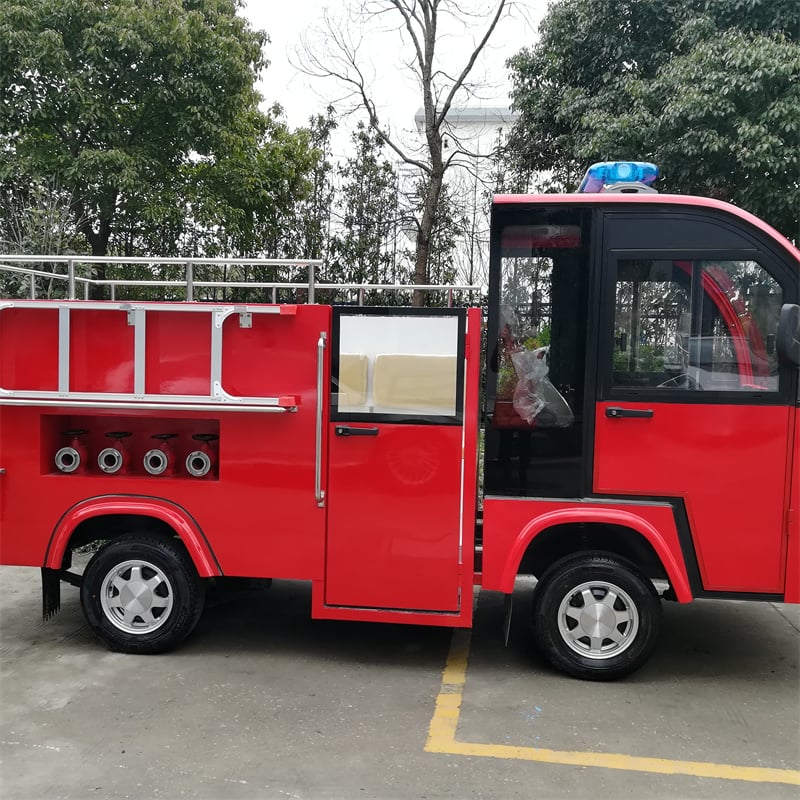

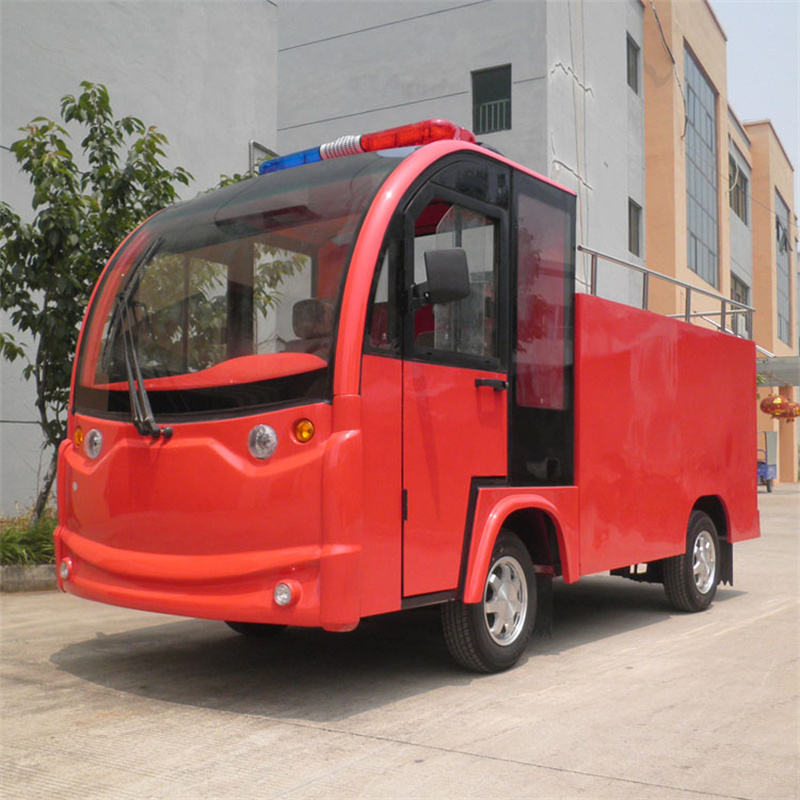

| Model | AL-T11(electric fire fighting truck) | ＊Range will vary depending on temperature, grade, payload and driving style | |
| System | 48v/5kw | ||
| FOB Shanghai | |||
| Key Components | |||
| Battery | Sealed lead- gel battery 8pcs*6V/200AH | ||
| Motor | 7.5kw AC motor | ||
| Controller | Chinese standard AC controller | ||
| Performance | |||
| Passenger capacity | 2adults+8kids | ||
| Range (loaded) based on flat road at a speed of 10km/h (km)＊ | ≥60 | ||
| Max. speed (km/h) | 5-10 (recommend) | ||
| Minimum turning radius (m) | 4 | ||
| Max. climbing ability (loaded) | 15% | ||
| Max. movement after brake at speed of 10 km/h | ≤3m | ||
| Max. loading weight | 1000kgs | ||
| Net weight | 900kgs | ||
| Dimensions | |||
| Overall dimensions (mm)with roof light | 3800×1525×2250 | ||
| Min. ground clearance (mm) | 150 | ||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | |||
| Body and Frame | |||
| Frame | aluminum alloy frame,cross beam, side guard panel | S | |
| Body | steel with anti-rust treatment | S | |
| Roof | Fiber glass | S | |
| Windshield | Laminated glass with wiper | S | |
| 2point seat belt | yes | S | |
| Floor | aluminum alloy anti-slippy | S | |
| Inner rear view mirror | One piece per cart in the middle of the windshield | S | |
| Side rear view mirror | Two pieces per cart | S | |
| Electric system | |||
| Lighting system and horn | Front: 2 Headlights (High beam and dipped headlight), 2 front turn signals, 2 fog lights; Back: 2 rear turn signals, 2 taillights(position light & brake light), 1 fog light, 1 reverse light),with DC-DC converter (converting from 48V to 12V) , horn. | S | |
| Dashboard | Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, fog light switch; Headlight switch, turn signal switch, wiper switch, horn button; | S | |
| Audio System | Radio and MP3 receiver | S | |
| Alarming light | yes | S | |
| Speaker | 2pcs | S | |
| Reversing alarm | yes | S | |
| Switch assembly | Lights switch, horn switch, wiper switch | S | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | S | |
| Steering and Suspension | |||
| Steering system | Four-way adjustable steering column, rack-and-pinion steering gear with power steering | S | |
| Brake system | Front and rear hydraulic drum brakes, dual-circuit hydraulic braking system, and parking brake mechanism | S | |
| Transmission system | Stepless transmission | S | |
| Front suspension | integral front drive axle, leaf spring independent suspension | S | |
| Rear suspension | integral type rear axle, leaf spring independent suspension | S | |
| Wheel & rim | radial tires, size 155R12C, 8PR (8-ply rating), alum alloy rim | S | |

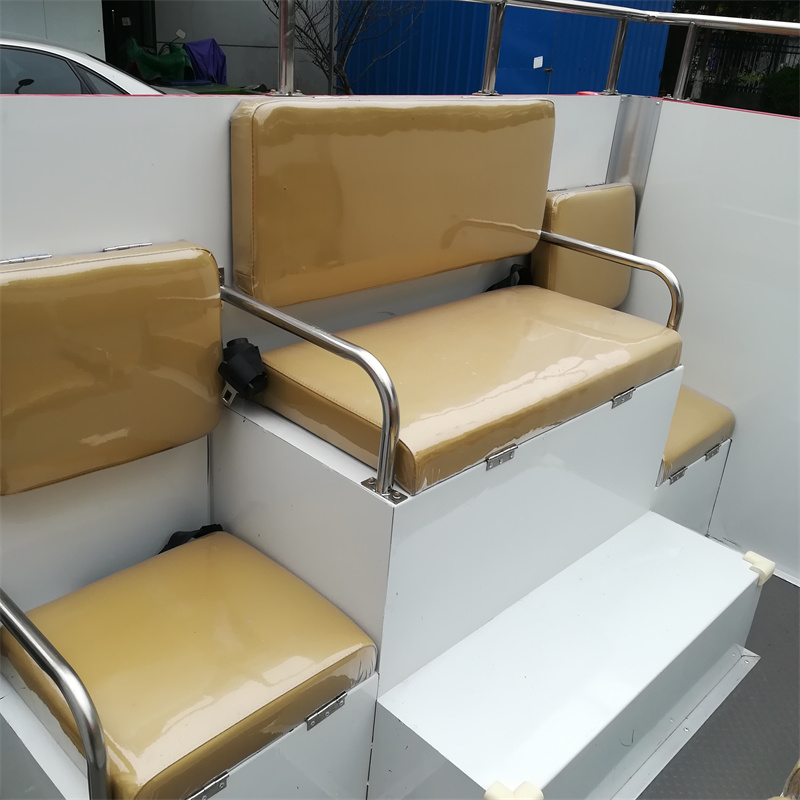

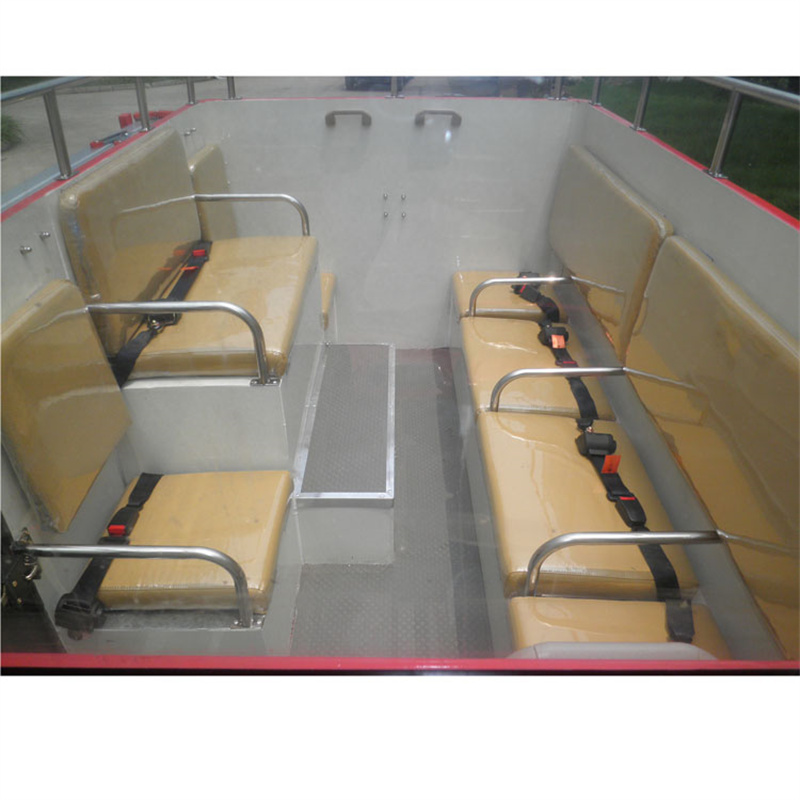

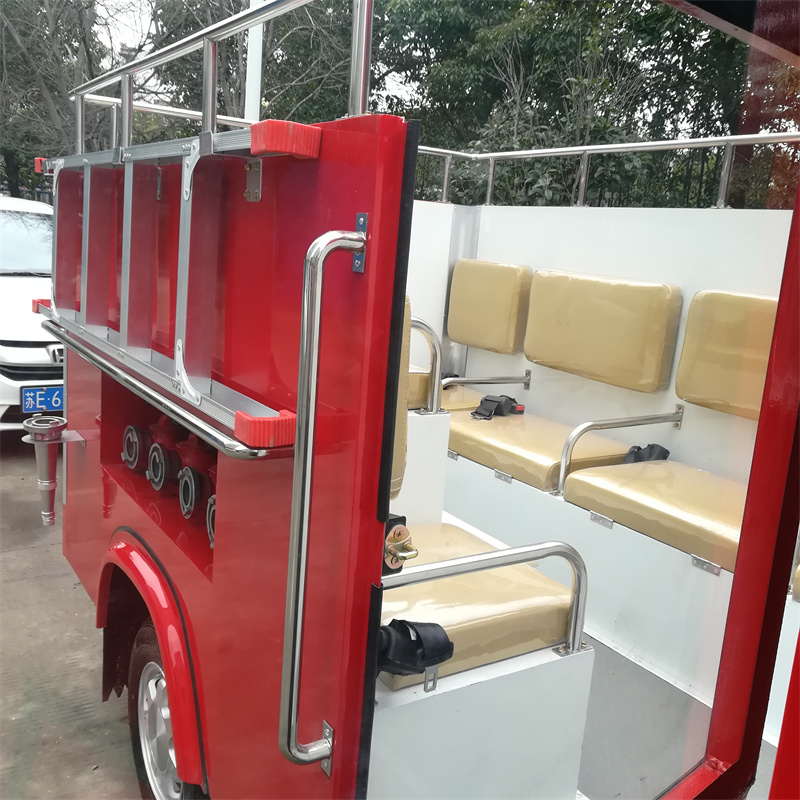

| Seat | cold‑foam padding + high‑resilience PU leather upholstery bench seats, adjustable driver's seat, and child seat belts | ||

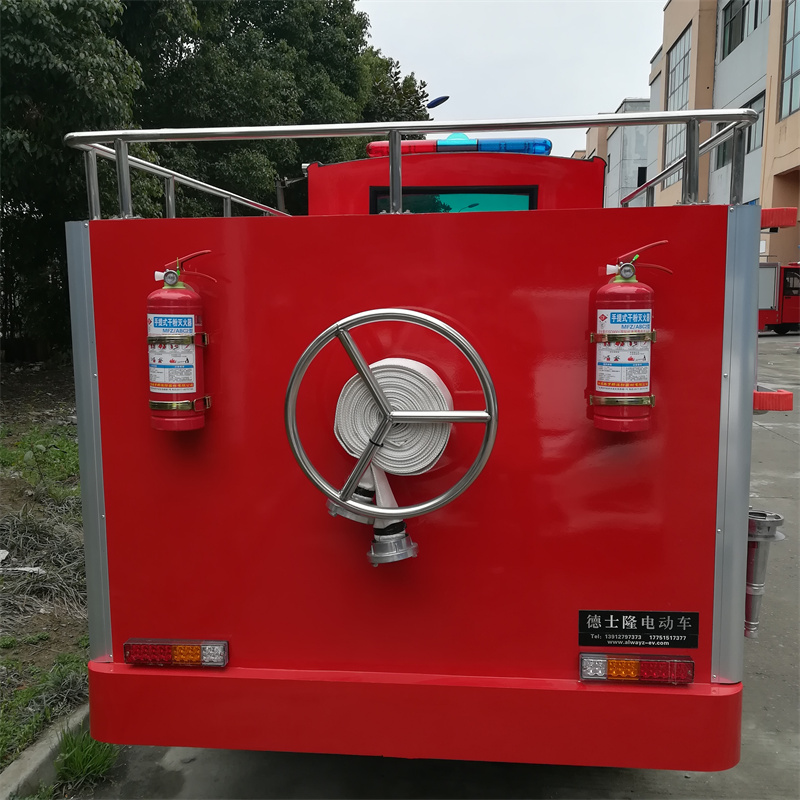

| Accessory | one ladder, one fire shovel, one fire chopper, one water pipe , two fire extinguishers | ||
| Container loading qty | Assembled | ||
| Qty/20'GP | 1unit | ||
| Qty/40'GP | 3units | ||
