Retro Style Fuel-Powered Sightseeing Vehicle, Open-Area Design – CE & ISO 9001 Support, OEM Custom for Scenic Spots, Resorts & Zoos

  • Seat distribution: 42(2+20+20)
  • Overall train length: 15960mm
  • Overall train width: 2150/2100mm
  • Overall train height: 2410mm
  • Overall train weight: 5170kgs
  • Max speed: 20km/h
  • Min turning radius: 7.5m
  • Range: more than 550km
  • Max climbing: 16%(loaded)
  • Brake distance: less than 3.5m(initial speed 10km/h)
  • Engine: Cummins ISF3.8S5141
  • Transmission: Fast manual
  • Oil tank: 80L
Get a Quote

Introduction

Not every venue needs a 72‑seat giant. Smaller scenic spots, boutique resorts, and mid‑size amusement parks often require a nimble, cost‑effective train that still delivers character and reliable performance.

The ALGQ-CL-42 fits this role perfectly. This 42‑seat fuel‑powered open‑air trackless train combines vintage styling with diesel efficiency. Its compact size navigates tighter roads and turnaround zones while carrying enough passengers to justify the investment. Ideal for zoos, heritage parks, and resort shuttle routes.

Why choose this model?

  • Compact 42‑passenger capacity – Maneuvers easily in smaller venues, reduces infrastructure costs

  • Vintage open‑air styling – Retro appeal that complements historic or natural settings

  • Fuel‑powered reliability – Diesel engine runs all day without lengthy recharging stops

  • Full OEM customization – Body colors, logo placement, themed interiors from your drawings

  • In‑house quality control – Phased inspections and pre‑delivery dynamic road tests

  • Cost‑effective logistics – Modular packaging lowers shipping costs; we provide installation guidance and after‑sales support

Our custom trains serve clients ranging from Southeast Asian theme parks to European scenic spots. The ALGQ-CL-42 offers vintage charm without the operational complexity of larger models.

Need a smaller vintage train that delivers big value? Contact us for a design consultation – your route, our train.

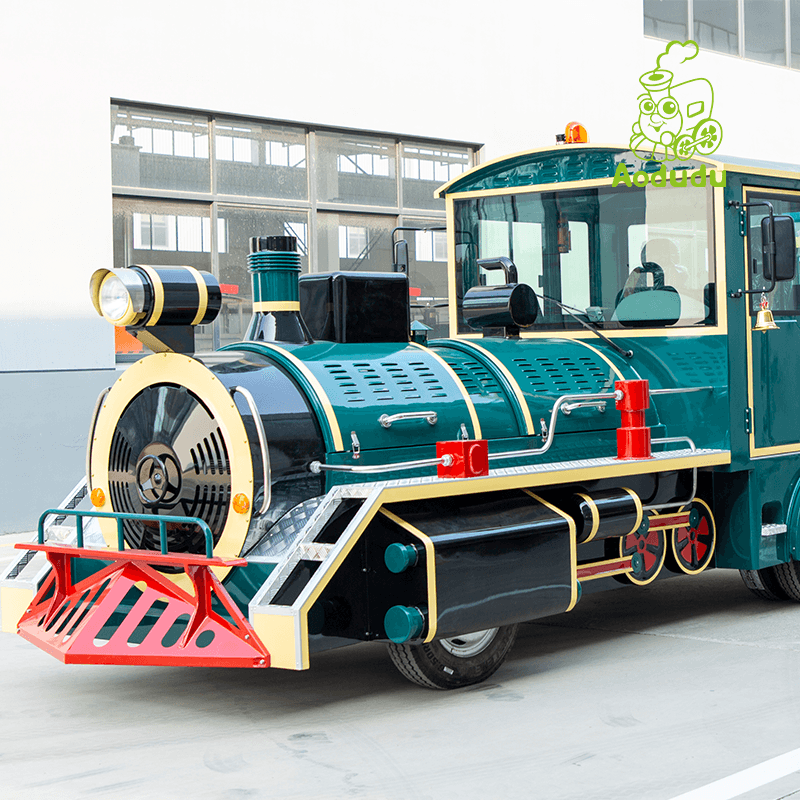

Locomotive Product Type Metal Locomotive Overall Dimensions 5120*2140*2500
Parameters (L*W*H)
Passenger Capacity 2 persons Max Driving Speed 20km/h (full load)
Front/Rear Track 1400mm Front/Rear Overhang 1110mm/1170mm
Wheelbase 2800mm Total Weight Approx. 2240kg
Min Turning Radius 8500mm Starting Battery Model 110Ah with low-temperature starting device
Transmission Fast mechanical manual plug-in 5-speed gearbox
Air Compressor Original naturally aspirated air compressor, capacity 168ml
Driver's Cab Fully enclosed around, cab equipped with refrigeration air conditioner
Power Engine Cummins ISF2.8S5129T fuel engine
Parameters
Displacement 2.79L
Rated Power 96KW Emission Standard China V
Max Torque 315Nm/1500rpm Fuel Type Diesel
Max driving gradient 4%, Design gradient 7%
Exhaust System Exhaust gas treatment SCR system truly meets China V emission standard
Chassis Chassis C-type longitudinal beam high-strength chassis system Suspension Steel plate spring
System Transmission Mode 4*2 single-wheel rear-mounted drive Steering Mode Full hydraulic recirculating ball power steering device
Front Tires Main engine tires 650-16 Rear Tires Passenger carriage hub steel rim
Service Brake Front and rear dual-circuit air pressure drum brake, parking brake device
Parking Brake Manual air central brake, components comply with TUV standards
Traction Mode Self-balancing traction rod, heavy-duty rotatable connector
Steering System Two-wheel or four-wheel steering system for passenger carriage can be customized
Electrical System Lights Locomotive equipped with headlamps, turn signals, brake lights, warning lights, etc.
Meter Inductive fuel gauge, water temperature gauge, hour meter, oil indicator, turn signal indicator, power generation indicator.
Audio System Special MP6 player for passenger cars (supports music & video playback), SD/TF card/USB compatible; digital radio, fully electronic digital tuning, FM radio with 18 preset stations and auto scan & storage; extra large pure blue LCD display; gold-plated RCA audio output; USB/SD dustproof function; automotive-grade flexible buttons, 4×50W output power. Equipped with monitoring system, voice stop announcer and HD display screen
Monitoring System Monitoring system installed (each carriage equipped with special 500G HD hard disk probe for large passenger cars, storage up to 15 days)
Display Screen HD display screen installed in each carriage
Voice Announcer Vehicle equipped with voice stop announcer
Sound Effect Whole vehicle equipped with high-imitation train whistle (real train sound)
Special Equipment ● Refrigeration air conditioner installed on locomotive ● Off-white high-grade artificial leather + high-resilience PU ● Safety isolation belt between locomotive and carriages (Note: 1-meter line) ● Safety isolation belt between carriages (Note: 1-meter line) ● Sunshade curtain installed in driver's cab ● 1 fire extinguisher in driver's cab ● Automotive-grade high-grade blister instrument panel (speed, mileage, lights) ● 1 antique copper bell on locomotive

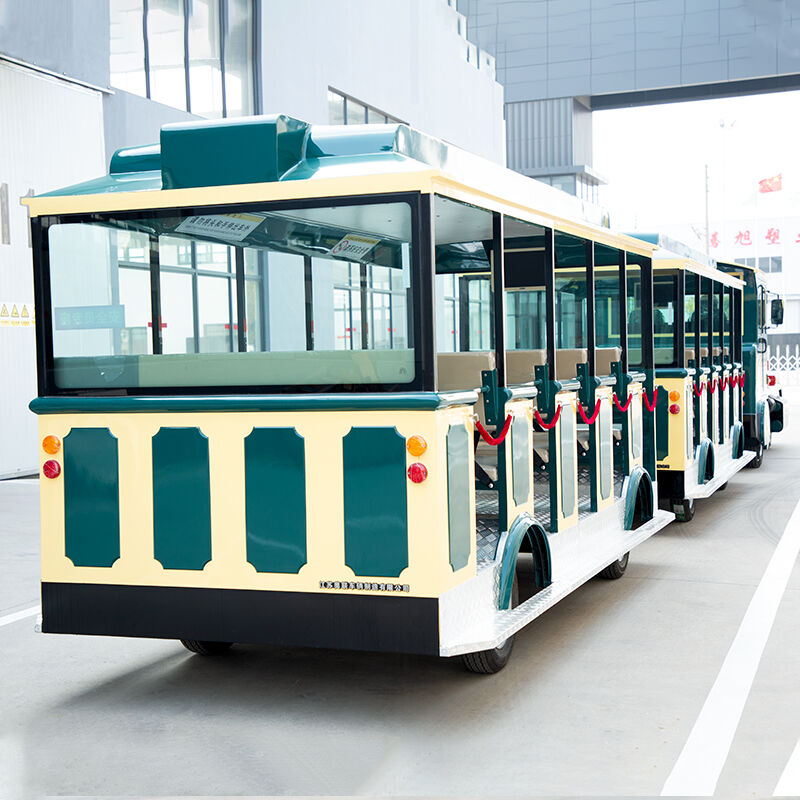

Carriage Technical Parameters
Carriage Model AL-20 Metal Carriage Overall Dimensions 4815×2100×2412
Parameters Type European antique train style (L*W*H) Excluding traction rod & rearview mirror
Passenger Capacity 4 persons*5 rows= 20 persons Max Driving Speed 20km/h (full load)
Front/Rear Track 1260mm Floor Height from Ground 560 mm (height from ground)
Wheelbase 2600mm Two-step Height 320mm (height from ground)
Body Color Customized according to customer requirements Empty Weight 1100kg (excluding passengers)
Other Suspension Damping Mode Leaf spring non-independent suspension
Brake Mode Each carriage is equipped with independent hydraulic combined dual brake device and automatic parking function in emergency, all trains with independent hydraulic operation device
Body Outer Panel All-metal body, sheet metal stamping parts, full automotive production process
Ceiling Steel frame structure
Floor All-aluminum corrugated anti-slip new floor
Seats High-grade artificial leather + high-resilience PU
Whole Vehicle Anti-corrosion Process Electrophoretic anti-corrosion process for the whole body, 360° all-round anti-oxidation, rust prevention and corrosion protection inside and outside the body.
Safety Safety Chains 304 stainless steel protective chains installed at passenger exit of each carriage
Protection
Equipment Seat Belts Two-point seat belts installed on every seat to ensure the safety of each passenger
Safety Armrests Safety armrests for each row of seats to prevent passengers from leaning forward and getting injured due to emergency braking.
Emergency Exit Alert Buttons Emergency exit alert buttons for each row in the carriage for convenient passenger alighting or emergency handling.
Safety Signs & Markers Safety signs and markers in each carriage to remind passengers to pay attention to safety and reduce potential hazards.
Notes 1. One set of vehicle tools.
2. Vehicle color can be customized according to customer requirements.
3. One 3-ton horizontal jack for the whole vehicle.
4. Our company can make reasonable configuration and customized production according to customers' actual usage requirements.
5. One-year warranty for the whole vehicle.
6. One set of registration qualification for the whole vehicle.
7. 20 safety chains for the whole vehicle.
8. One set of safety user manual and certificate for the whole vehicle.

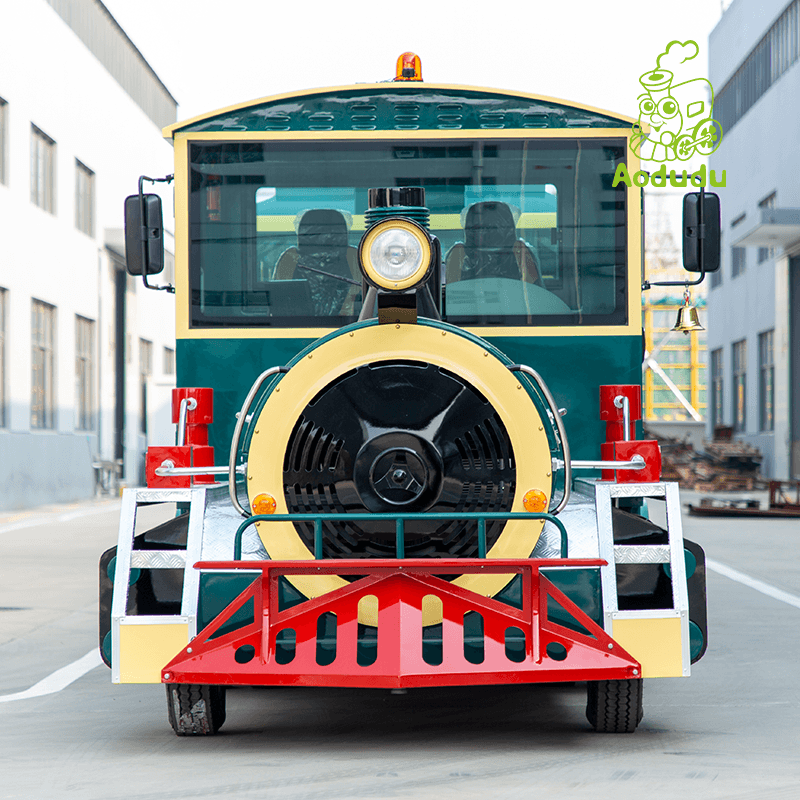

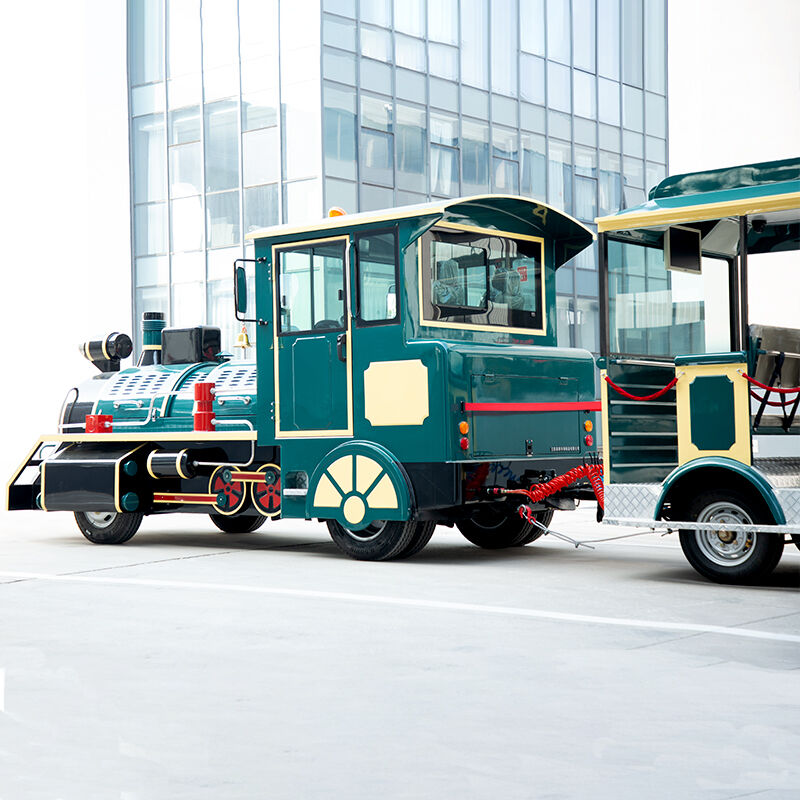

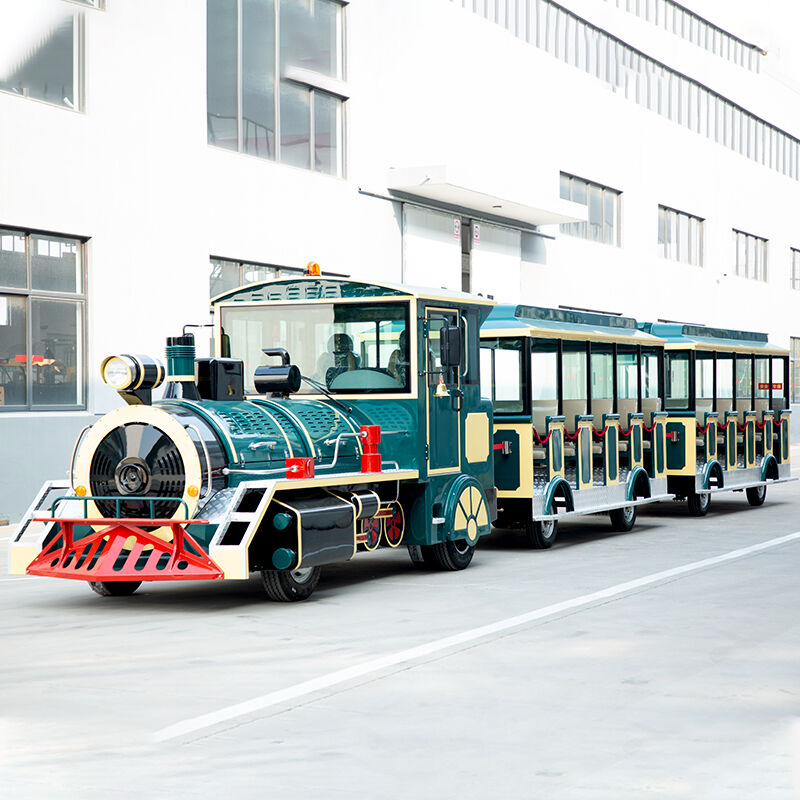

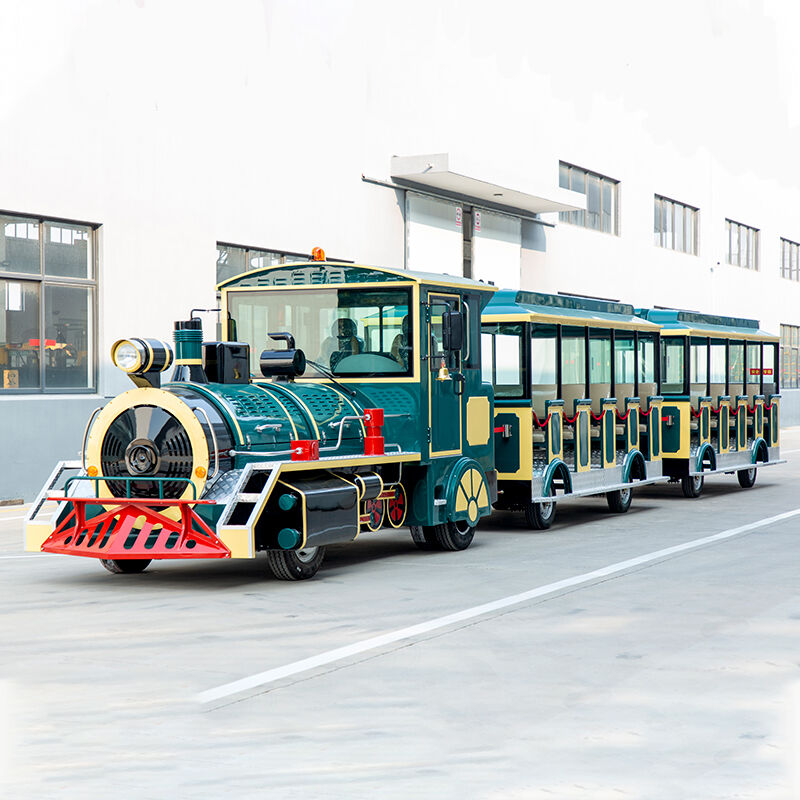

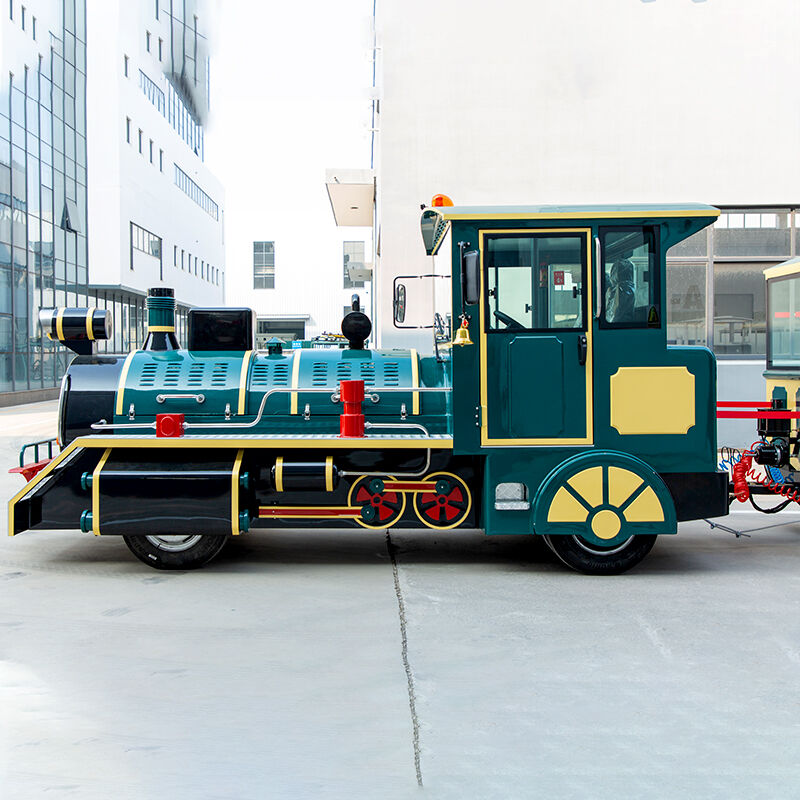

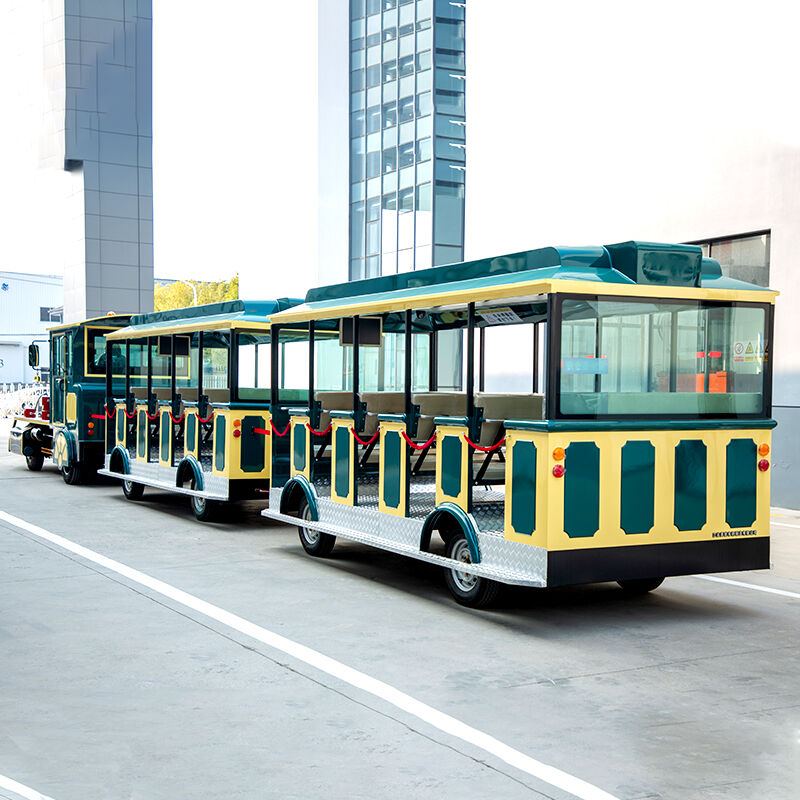

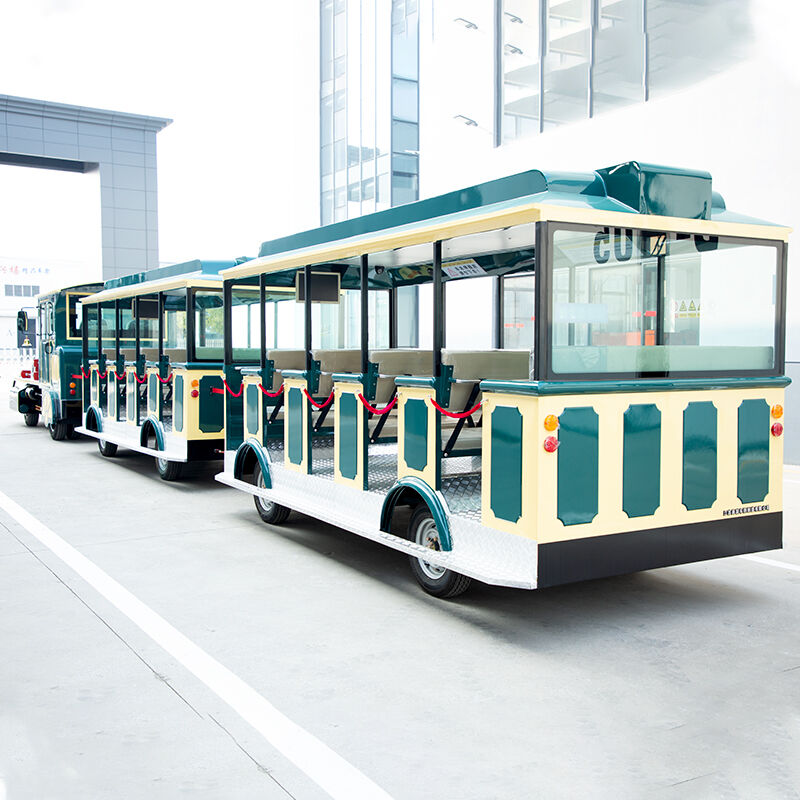

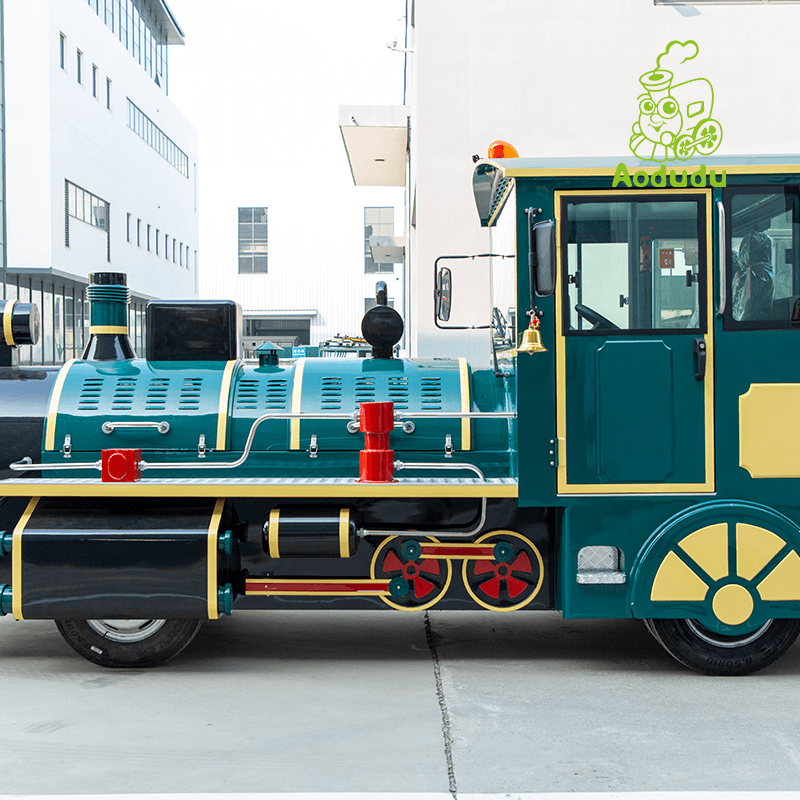

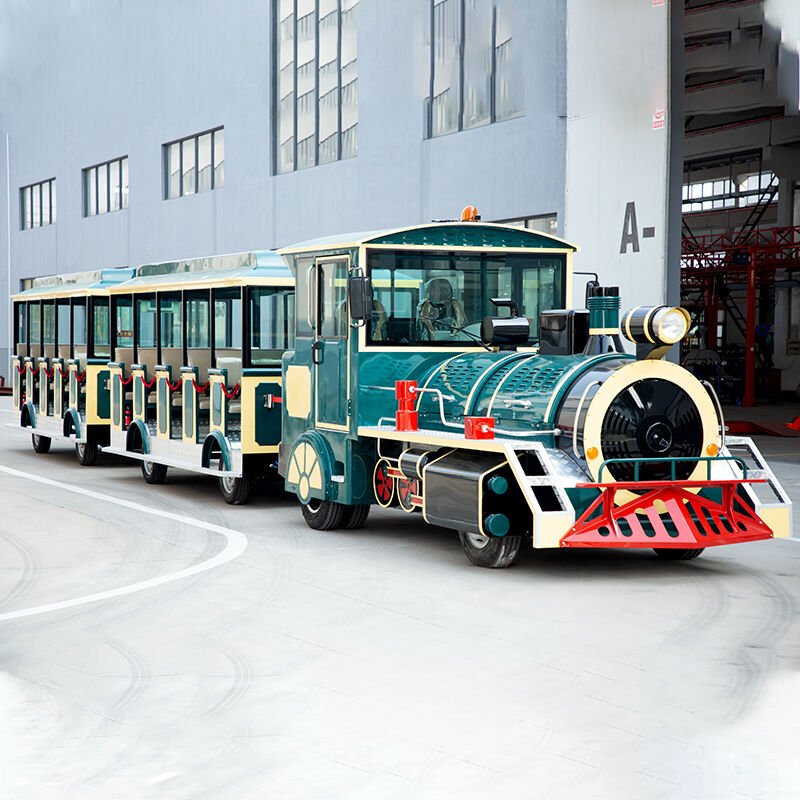

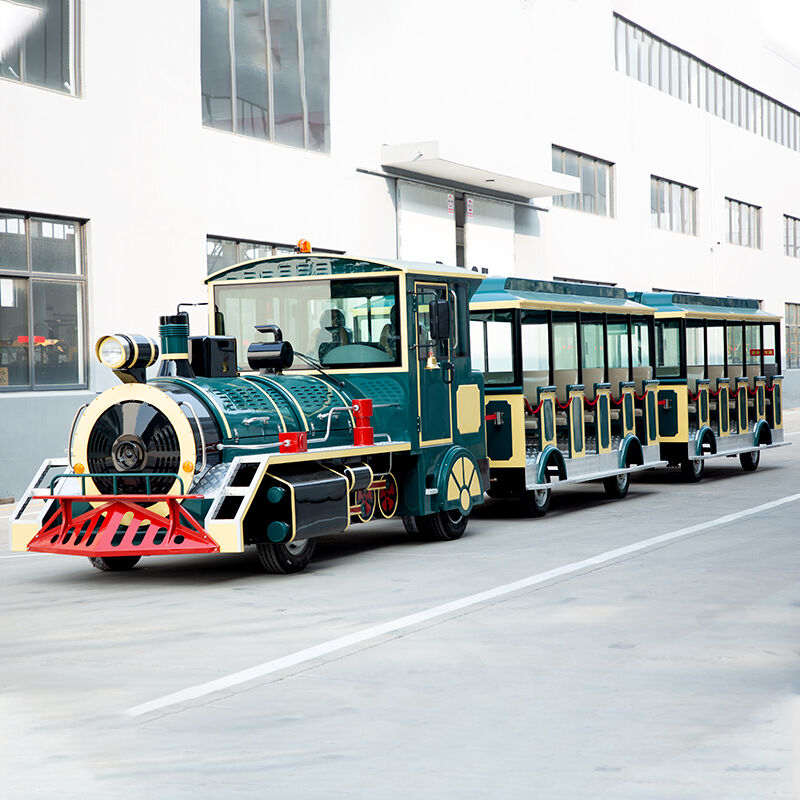

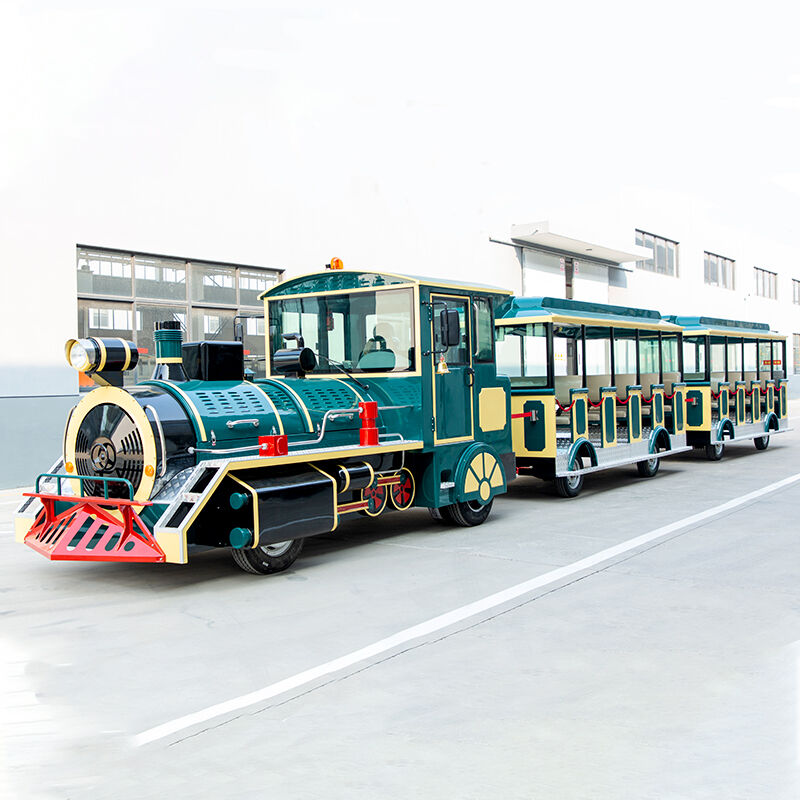

Real Shots & Craftsmanship Details

mic主图2(eeca4a1a19).png42座燃油复古列车-5.jpgmic主图3(1ab0cbf147).png42座燃油复古列车-4.jpg42座燃油复古列车-7.jpg_T4A6346.jpg42座燃油复古列车-3.jpg_T4A6338.jpg_T4A6353.jpg_T4A6334.jpg
