42-Passenger Vintage-Style Trackless Vehicle with Streamlined Locomotive Front – OEM Customizable for Themed Attractions & Heritage Parks, Full In-House Production
Managing visitor flow across large scenic areas or heritage parks often means balancing capacity with guest experience. Crowded pathways and long walking distances can lead to fatigue, reducing both satisfaction and on-site spending.

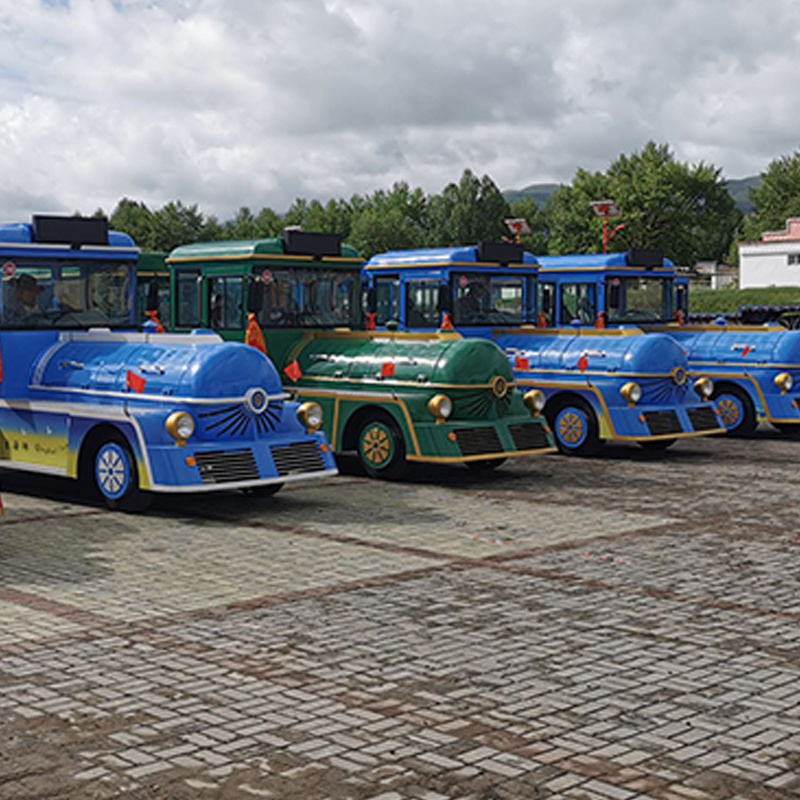

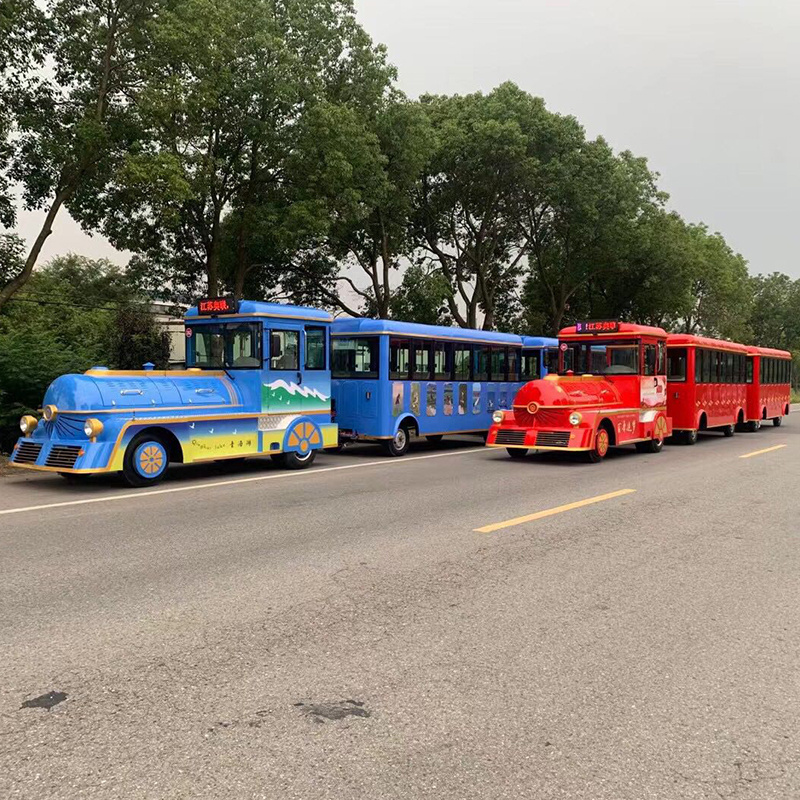

The ALGQ-LX-42 solves this with a distinctive bullet-nose retro design. This 42‑seat diesel‑powered trackless sightseeing train combines nostalgic styling with practical fuel‑efficient operation, making it a reliable people‑mover for themed attractions, zoos, and resort complexes.

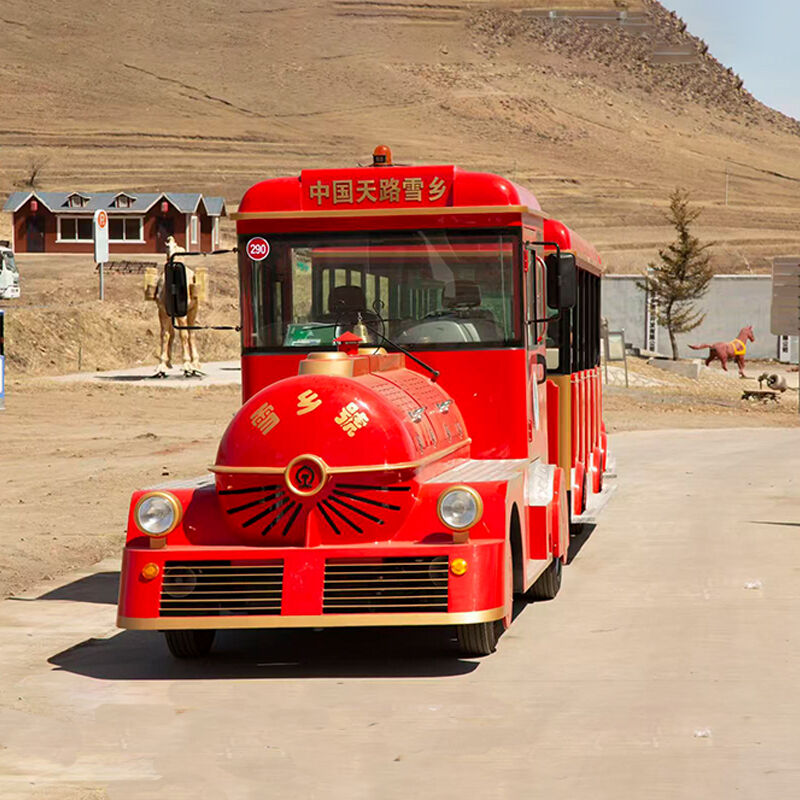

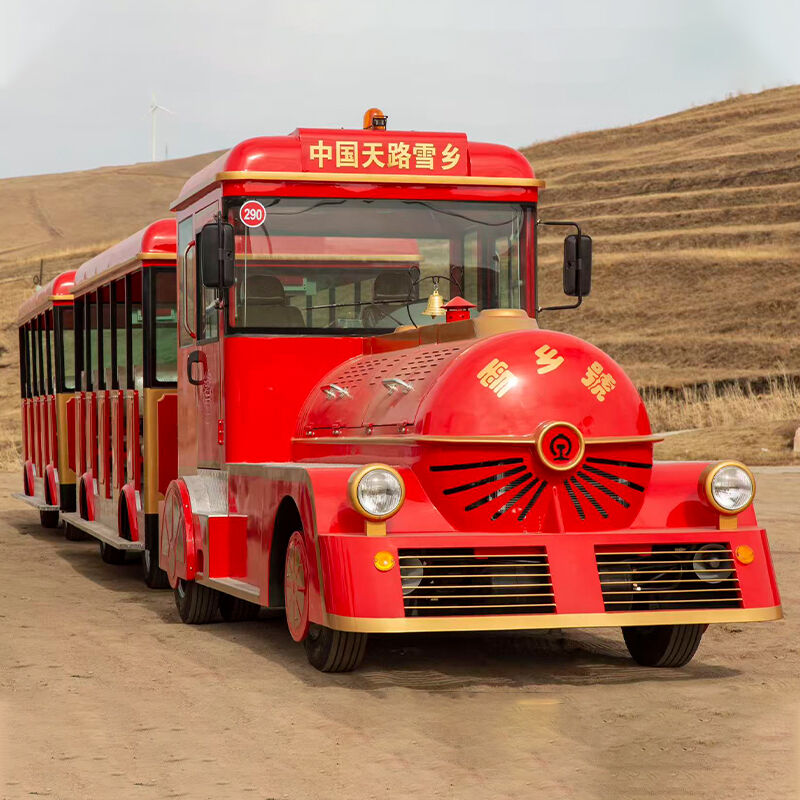

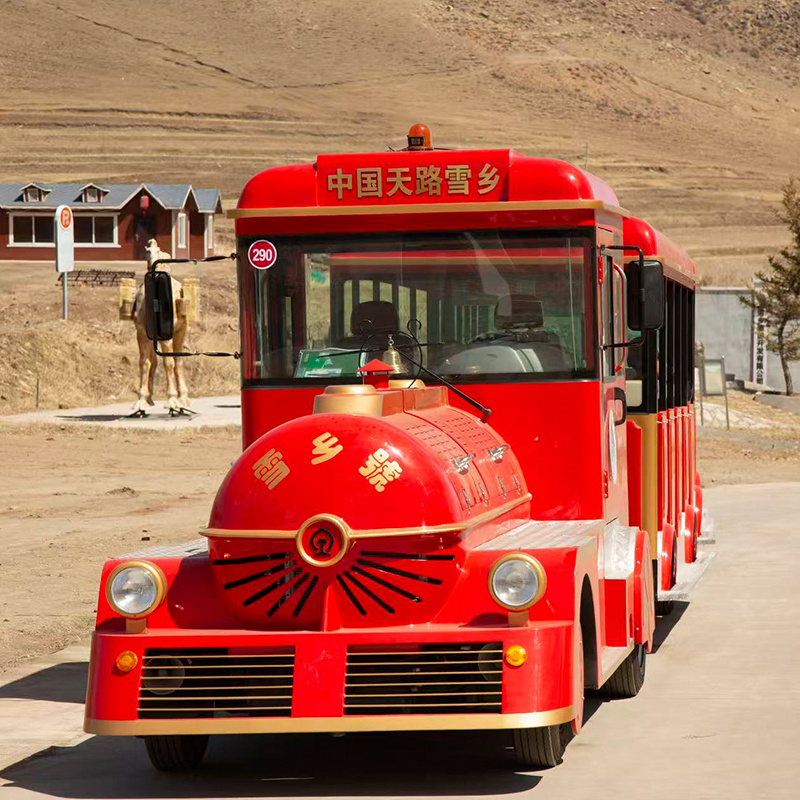

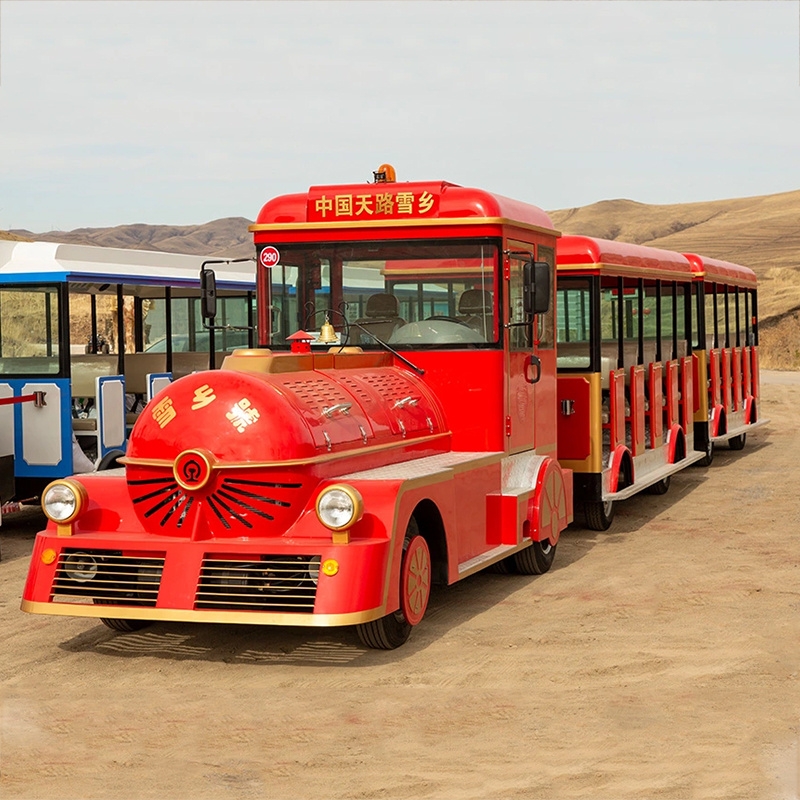

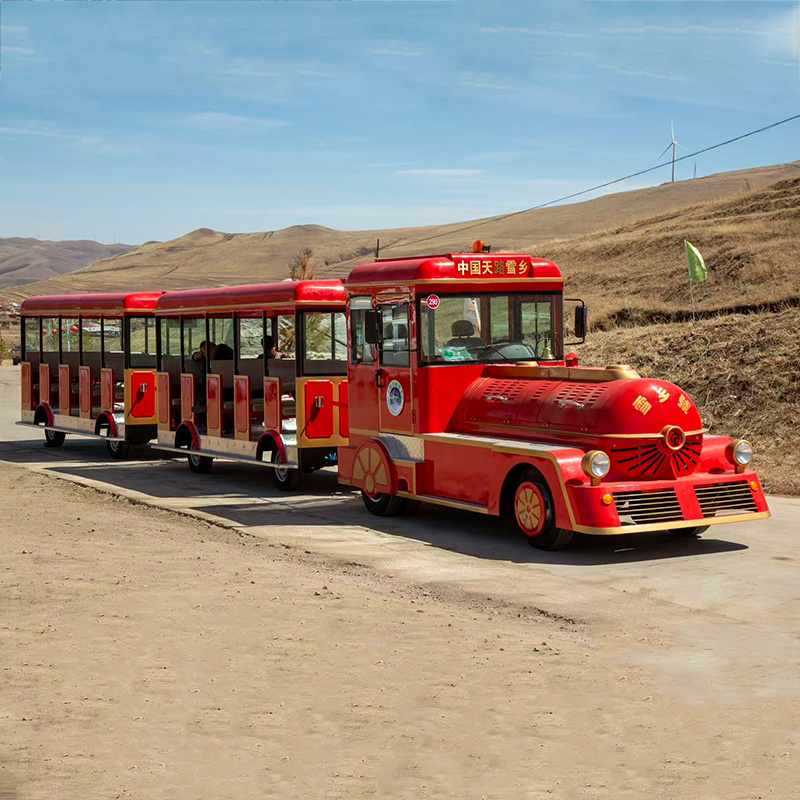

Standout bullet‑nose styling – Vintage streamlined locomotive front that attracts attention and enhances your park’s visual identity
42‑passenger capacity – Optimized layout for high‑density routes, reducing wait times and improving throughput
Full OEM customization – Body printing, logo embedding, themed interiors based on your drawings or concepts
In‑house quality control – Phased inspections from welding to dynamic road tests, ensuring long‑term durability
Fuel‑powered reliability – Robust diesel engine suited for all‑weather operation and longer continuous running hours
Global delivery support – Modular packaging cuts shipping costs; we provide installation guidance, technical docs, and after‑sales service
Our customized diesel trains have been delivered to scenic spots in Europe and theme parks in Southeast Asia. The ALGQ-LX-42 can become a signature ride that drives repeat visits and increases per‑guest revenue.
Ready to upgrade your venue’s internal transport? Contact us for a design consultation – your vision, our engineering.
Basic Parameters | |||||
Model |
ALGD-F |
Overall Dimensions (including traction) |
15900*1960*2410mm(±50mm) |
||
Train Composition |

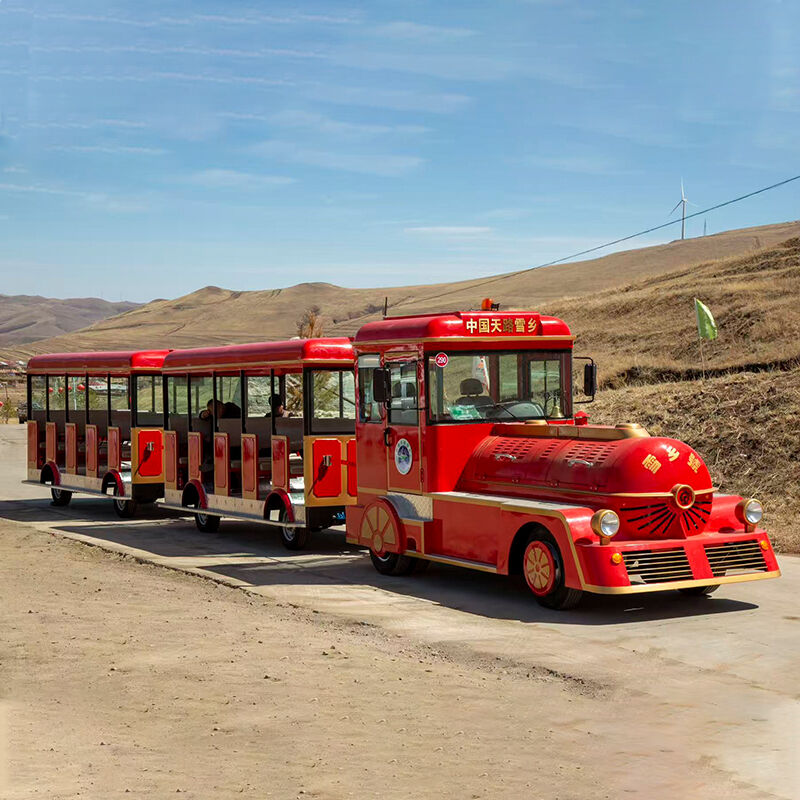

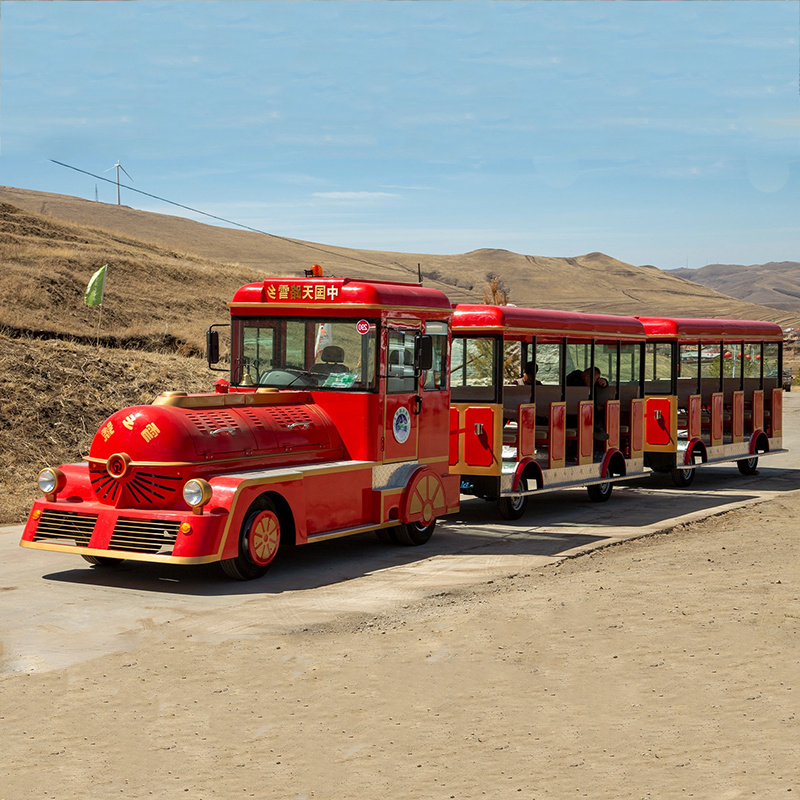

Locomotive + Carriage 1 + Carriage 2 |
Passenger Capacity |
2+20+20=42 persons |
||
Body |
All-metal body + sheet metal stamping + electrophoretic coating + computerized paint mixing + professional spraying |
||||
Roof & Floor |
Steel frame structure + double-layer roof + aluminum non-slip floor |
||||
Locomotive |
Dimensions |
4700*1960*2410mm(±50mm) |
Carriage |
Dimensions |
4500*1920*2410mm(±50mm) |
|
Curb Weight |
1880kg |
|
Curb Weight |
1320kg per carriage |
|
Front/Rear Track |
1400/1400mm |
|
Front/Rear Track |
1320/1320mm |
|
Wheelbase |
2600mm |
|
Wheelbase |
2600mm |
|
Front/Rear Overhang |
1110/1170mm |
|
Front/Rear Overhang |
900/900mm |
|
Suspension System |
Leaf spring non-independent suspension |
|
Suspension System |
Leaf spring non-independent suspension |
|
Steering Mode |
Electric power steering |
|
Steering Mode |
Positioned locomotive, four-wheel simultaneous steering |
|
Service Brake |
Air-hydraulic combined brake |
|
Service Brake |
Air-hydraulic combined brake |
|
Parking Brake |
Pneumatic control + mechanical actuator |
|
Parking Brake |
Pneumatic control + mechanical actuator |
|
Drive Mode |
Rear-engine rear-wheel drive |
|
Type |
Open carriage |
|
Tire Size |
195R14 |
|
Tire Size |
165R13 |
|
Driving Cab |
Adjustable seat + vacuum forming automotive-grade center console + refrigerated air conditioner |
|
Seats |
High-resilience PU seats |
|
|
|
|
Floor Height |
560mm (from ground) |
|
High-strength Chassis |
C-type manganese steel longitudinal beam + integral rear axle |
|
Two-step Step Height |
350mm (from ground) |
Traction System | |||||
Self-balancing drawbar, heavy-duty rotatable connector with automatic locking protection. | |||||
Power System | |||||
Battery |
460AH LiFePO4 battery, rated voltage 73.6V (Equipped with BMS battery management system, real-time battery status monitoring, extended service life) |
||||
Motor |
72V/15kW AC natural cooling motor, S2 duty cycle; Rated speed 3840r/min, IP54 protection, insulation class H. |
||||
Controller |
72V/500A fully intelligent electronic commutation AC induction controller |
||||
Charger |
Full-automatic intelligent charger |
||||
DC-DC Converter |
400W, input 72V, output 14V |
||||
Performance Parameters | |||||
Max. Speed |
20km/h |
Max. Braking Distance |
3.5m (initial speed 10km/h) |
||
Max. Gradeability |
7% (full load) |
Min. Turning Radius |
6.5m |
||
Driving Range |
Over 85km on flat road |
||||
Electrical System | |||||
Lights & Instrument |
Locomotive equipped with headlight, turn signal, brake light, warning light, electric horn, etc.; Dashboard displays current, speed, voltage, battery level, mileage, air pressure and various fault codes. |
||||
Monitoring |
5 HD 500G hard disk probes for coach, storage up to approx. 14 days. |
||||
Announcer |
GPS intelligent voice announcer |
||||
Display |
19-inch HD LCD display per carriage |
||||
Speaker |
4 speakers per carriage |
||||
Sound Effect |
High imitation train horn (real train sound) |
||||
Audio |
Car MP6 player, 4*50W, compatible with SD/TF/USB, gold-plated RCA audio output; Digital FM radio, fully electronic tuning, 18 preset stations auto scan & storage. |
||||
Safety Configuration | |||||
Safety Chain |
304 stainless steel safety chain at passenger exit of each carriage. |
||||
Exit Button |
Emergency exit button at passenger exit of each carriage. |
||||
Intercom |
Intercom for two-way communication between driver and safety officer. |
||||
Others |
Fire extinguisher; two-point seat belt; safety handrail; safety signs. |
||||
Other Configuration | |||||
Shock Absorption |
Shock absorption device installed on locomotive and each carriage. |
||||
|
Note: 1. One-year whole vehicle warranty. 2. Free set of tools and one 3-ton horizontal jack. 3. Complete registration documents, certificate and user manual included. 4. Customization service available: configuration and appearance design per customer requirements | |||||
