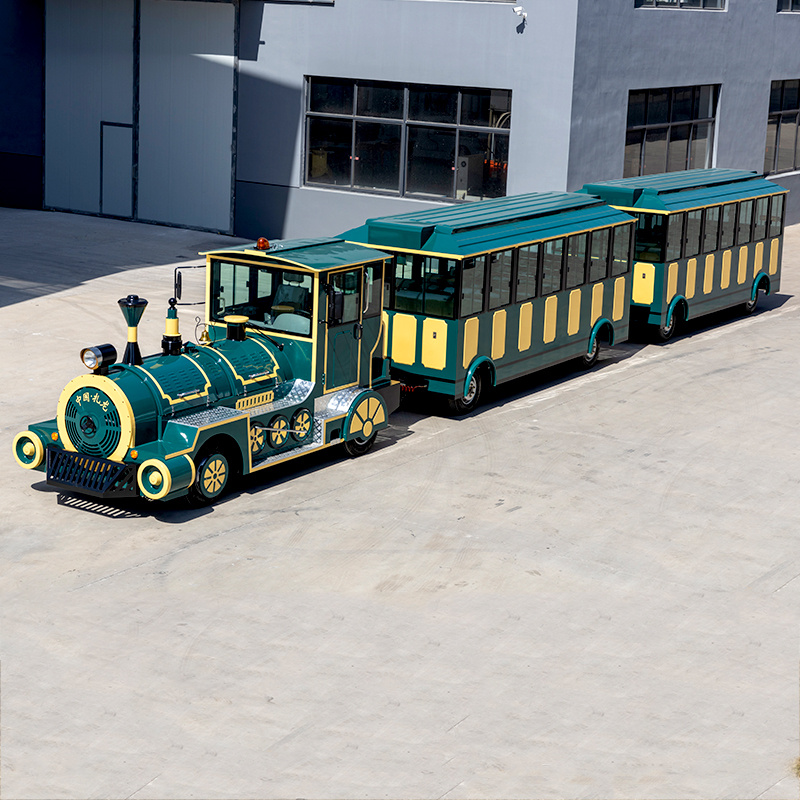

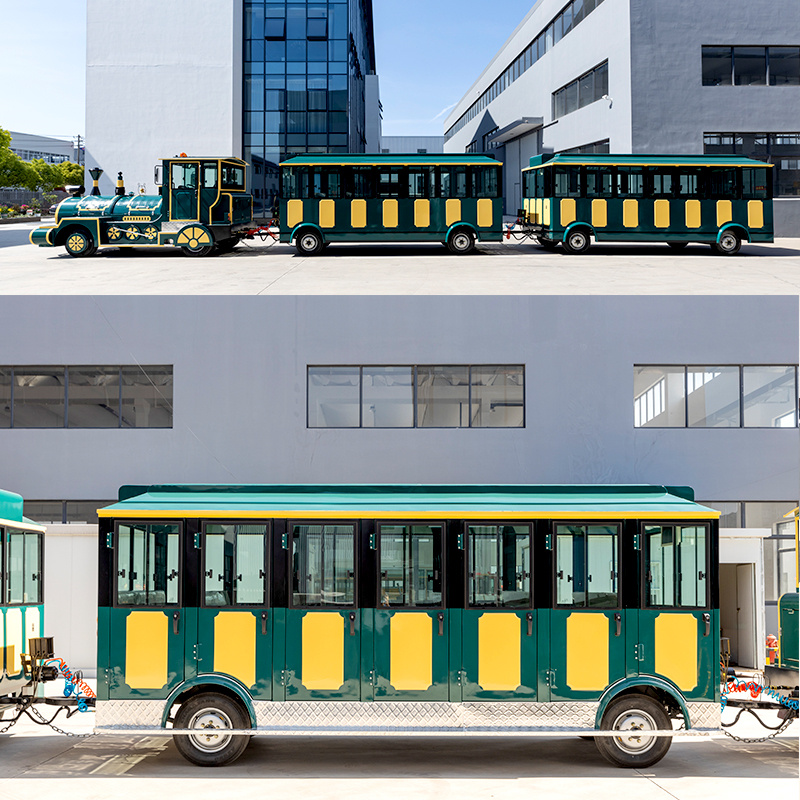

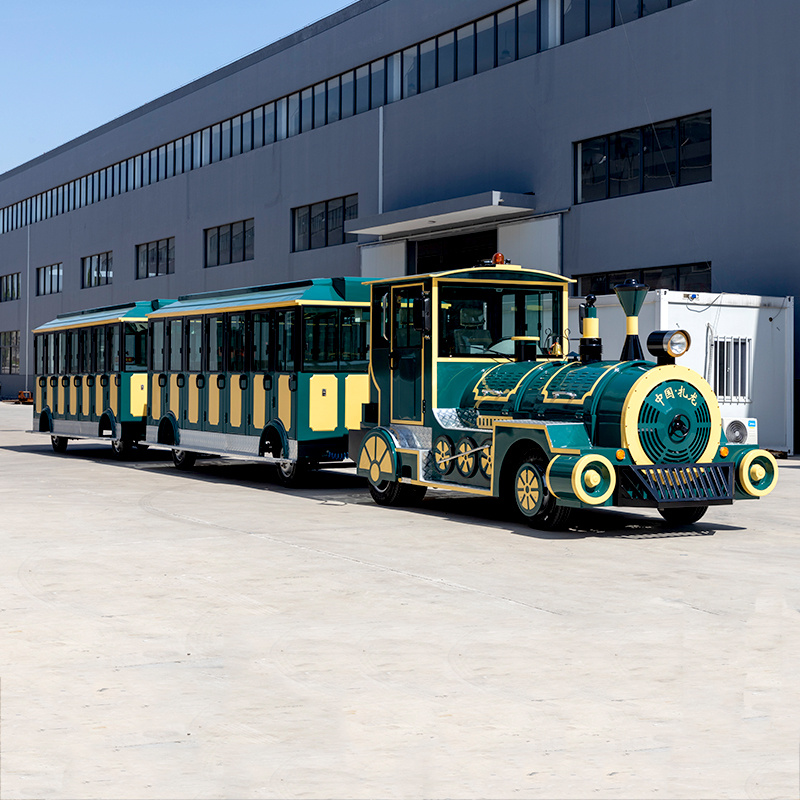

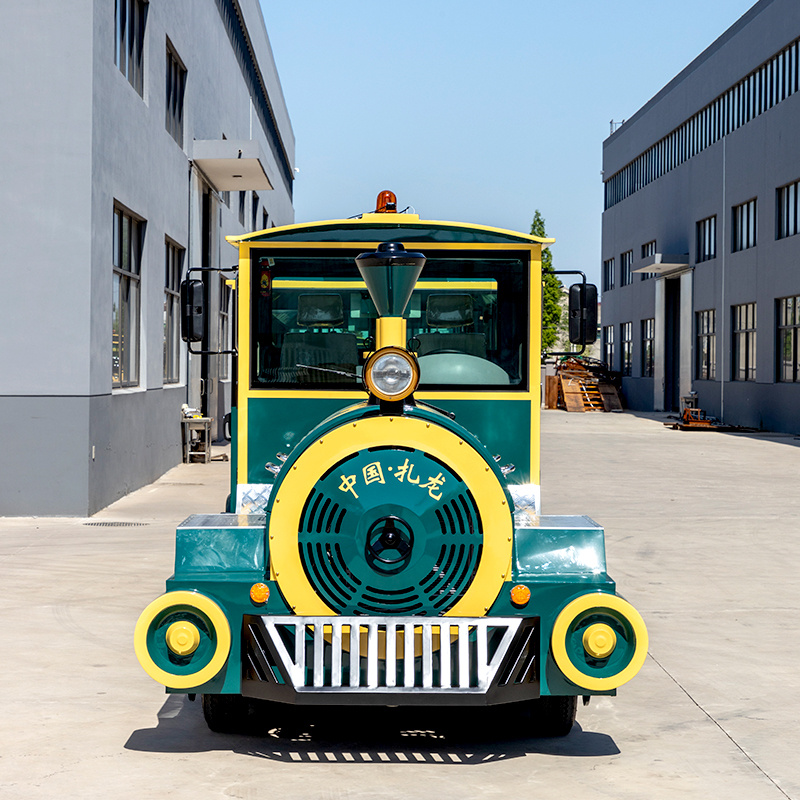

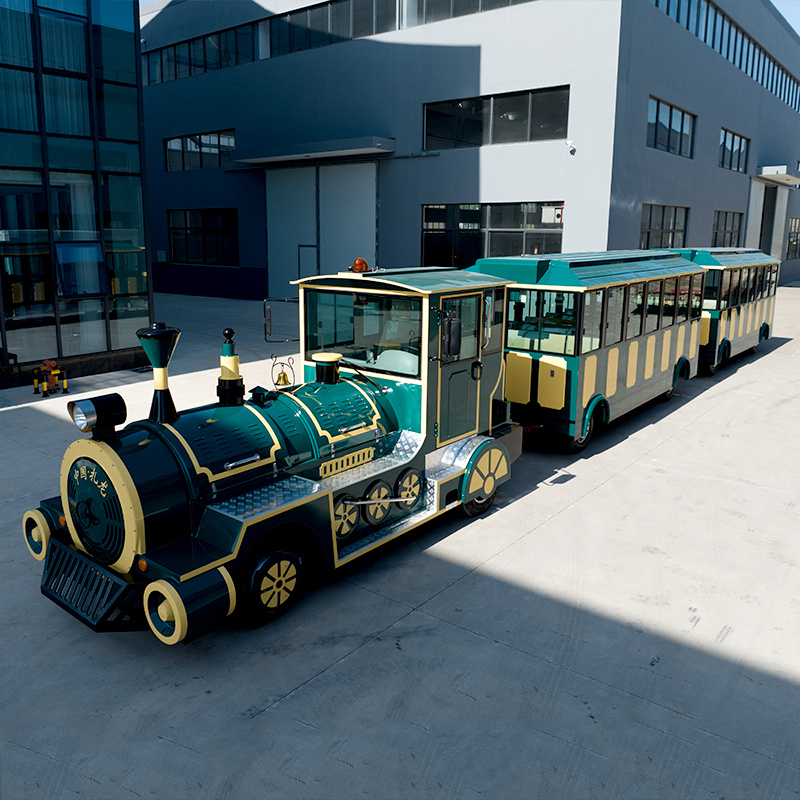

Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72
Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72

Fully Enclosed Diesel Sightseeing Train | 72-Seat Cabin – Model ALGQ-CL-72

72-Passenger All-Weather Tourist Train with Full Coach Enclosure – Custom Engineered for Zhalong Natural Reserve (Eco-Sensitive Area)

  • Seat distribution: 72(2+35+35)
  • Overall train length: 17980mm
  • Overall train width: 2150/2340mm
  • Overall train height: 2500mm
  • Overall train weight: 6050kgs
  • Max speed: 20km/h
  • Min turning radius: 8.5m
  • Range: more than 500km
  • Max climbing: 16%(loaded)
  • Brake distance: less than 3.5m(initial speed 10km/h)
  • Engine: Cummins ISF3.8S5141
  • Transmission: Fast manual
  • Oil tank: 80L
Get a Quote

Introduction

Nature reserves and wetlands face unique operational constraints: protecting fragile ecosystems while accommodating visitors who want comfort regardless of weather. Open vehicles can expose guests to rain, wind, or cold, reducing ridership during off-peak seasons.

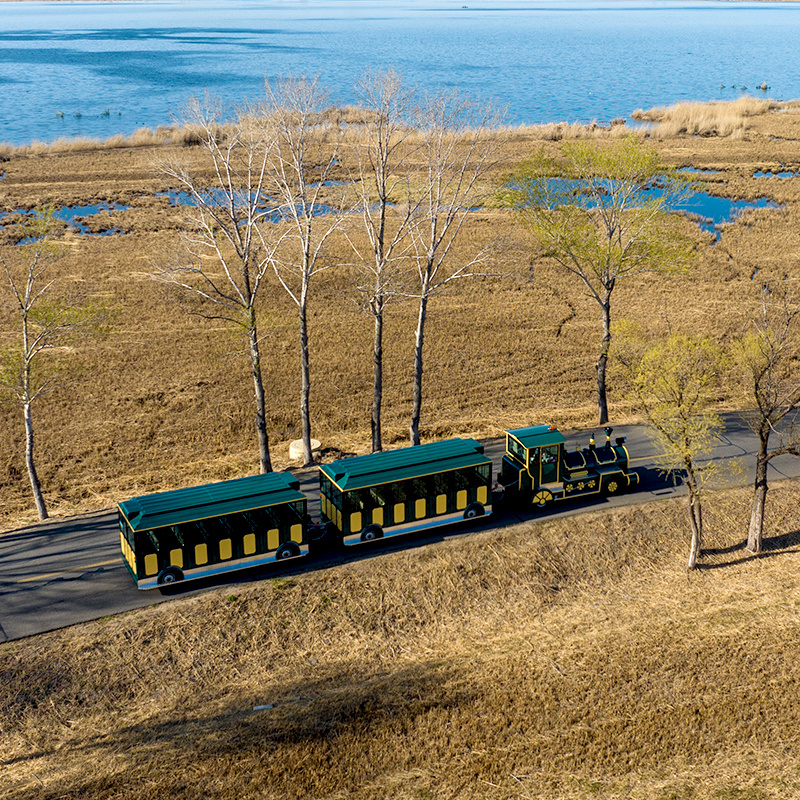

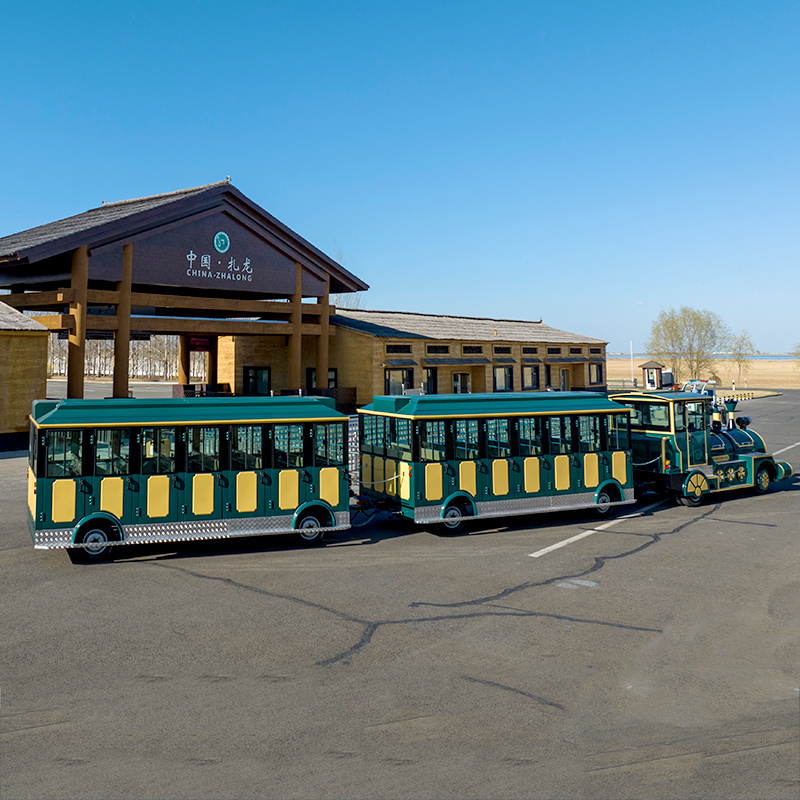

The ALGQ-CL-72 solves this with a fully enclosed cabin design. This 72‑seat diesel‑powered trackless train features weather‑proof glazing, climate control, and a quiet interior that minimizes disturbance to wildlife. Custom engineered for Zhalong Natural Reserve, it operates effectively in sensitive wetland environments where noise and emissions must be strictly controlled.

Why choose this model?

  • Fully enclosed cabin – All‑weather comfort for visitors, extending your operational season

  • 72‑passenger capacity – Reduces the number of vehicle trips, lowering cumulative environmental impact

  • Diesel reliability – Consistent performance even in remote locations without charging infrastructure

  • Wildlife‑sensitive design – Reduced noise output and sealed systems to protect natural habitats

  • Full OEM customization – Adjust cabin layout, seating, climate control, and accessibility features

  • In‑house quality control – Phased inspections from raw materials to dynamic road tests

  • Global delivery support – Modular packaging, installation guides, and after‑sales documentation

Our custom diesel trains have been delivered to scenic areas in Europe and nature reserves in Asia. The ALGQ-CL-72 balances visitor comfort with environmental responsibility.

Looking for an all‑weather train that respects your natural setting? Contact us for a design consultation – your environment, our solution.



Locomotive Technical Parameters
Product Type Metal Locomotive Overall Dimensions 5120*2140*2500
(L*W*H)
Passenger Capacity 2 persons Max Driving Speed 20km/h (Full Load)
Locomotive Parameters Front/Rear Track 1500mm Front/Rear Overhang 1160mm/1280mm
Wheelbase 2800mm Total Weight Approx. 2440kg
Turning Radius ≤7.5m Starting Battery Model 110Ah with Low-Temperature Starting Device
Transmission Fast Mechanical Manual Plug-in 5-Speed Gearbox
Air Compressor Original Naturally Aspirated Air Compressor, Capacity 168ml
Driver's Cab Fully enclosed around, cab equipped with refrigeration air conditioner.
Power Parameters Engine Cummins ISF3.8S5141 Fuel Engine
Displacement 3.8L
Rated Power 105kw Emission Standard Euro V
Max Torque 450Nm/1200-2200rpm Fuel Type Diesel
Max Driving Gradient 4%, Design Gradient 7%
Exhaust Exhaust Gas Treatment SCR System Truly Meets Euro V Emission Standard
System
Chassis C-type Longitudinal Beam High-Strength Chassis System Suspension Steel Plate Spring
Transmission Mode 4*2 Single-Wheel Drive with Constant Velocity Joint Steering Mode Full Hydraulic Recirculating Ball Power Steering Device
Service Brake Front & Rear Dual-Circuit Air-Pressure Drum Brake, Parking Brake Device
Chassis System Parking Brake Manual Air Central Brake, Components Comply with TUV Standards
Traction Mode Self-Balancing Traction Rod, Heavy-Duty Rotatable Connector
Steering System 2-Wheel or 4-Wheel Steering System for Carriage Can Be Customized
Tires Tubeless Tires, Locomotive Tire Model: 650-16, Carriage Tire Model: 600-14 (Tire specifications of each carriage are
unified)
Lights Locomotive equipped with headlamps, turn signals, brake lights, warning lights, etc.
Meter Inductive Fuel Gauge, Water Temperature Gauge, Hour Meter, Oil Indicator, Turn Signal Indicator, Power Generation Indicator.
Audio System Special MP6 Player for Passenger Cars (supports music & video playback), SD/TF card/USB compatible; digital radio, fully electronic digital tuning, FM radio with 18 preset stations and auto scan & storage; extra large pure blue LCD display; gold-plated RCA audio output; USB/SD dustproof function; automotive-grade flexible buttons, 4×50W output power.
Electrical System Monitoring System 5 sets of monitoring system installed (equipped with special 500G SSD HD probe for large passenger cars, storage up to about 10 days)
Display Screen 19-inch HD display screen installed in each carriage
Voice Announcer Vehicle equipped with voice stop announcer
Carriage Technical Parameters
Model AL-35 Metal Carriage (Open Type) 5400×2300×2520
Overall Dimensions
Type European Antique Train Style (L*W*H) Excluding traction rod & rearview
mirror
Carriage Parameters Passenger Capacity 5 persons*7 rows= 35 persons Max Driving Speed 20km/h (Full Load)
Front/Rear Track 1400mm Floor Height from Ground 640 mm (height from ground)
Wheelbase 3700mm Two-Step Height 360mm (height from ground)
Body Color Customized according to customer requirements Empty Weight 1500kg (excluding passengers)
Suspension Damping Mode Leaf Spring Non-Independent Suspension
Other Brake Mode Each carriage is equipped with independent hydraulic combined dual brake device and automatic parking function in emergency, all trains with independent hydraulic operation device
Body Outer Panel All-metal body, sheet metal stamping parts, full automotive production process
Ceiling Steel frame structure
Floor All-aluminum corrugated anti-slip new floor
Seats High-grade artificial leather + high-resilience PU
Whole Vehicle Anti-corrosion Process Electrophoretic anti-corrosion process for the whole body, 360° all-round anti-oxidation, rust prevention and corrosion protection inside and outside the body.
Seat Belts Two-point seat belts installed on every seat to ensure the safety of each passenger
Safety Protection Equipment Safety Armrests Safety armrests for each row of seats to prevent passengers from leaning forward and getting injured due to emergency braking.
Emergency Exit Alert Emergency exit alert buttons for each row in the carriage for convenient passenger alighting or emergency handling.
Safety Signs & Markers Safety signs and markers in each carriage to remind passengers to pay attention to safety and reduce potential hazards.
Remarks

Notes:

1. One set of vehicle tools.
2. Vehicle color can be customized according to customer requirements.
3. One 3-ton horizontal jack for the whole vehicle.
4. Our company can make reasonable configuration and customized production according to customers' actual usage requirements.
5. One-year warranty for the whole vehicle.
6. One set of registration documents for the whole vehicle.
7. 28 safety chains for the whole vehicle.
8. One set of safety user manual and certificate for the whole vehicle.

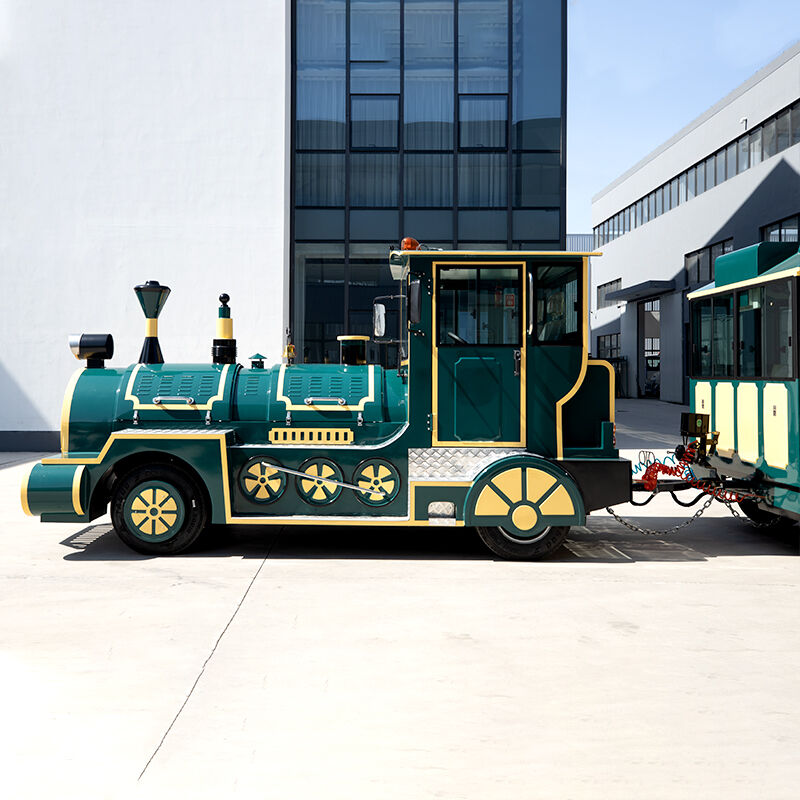

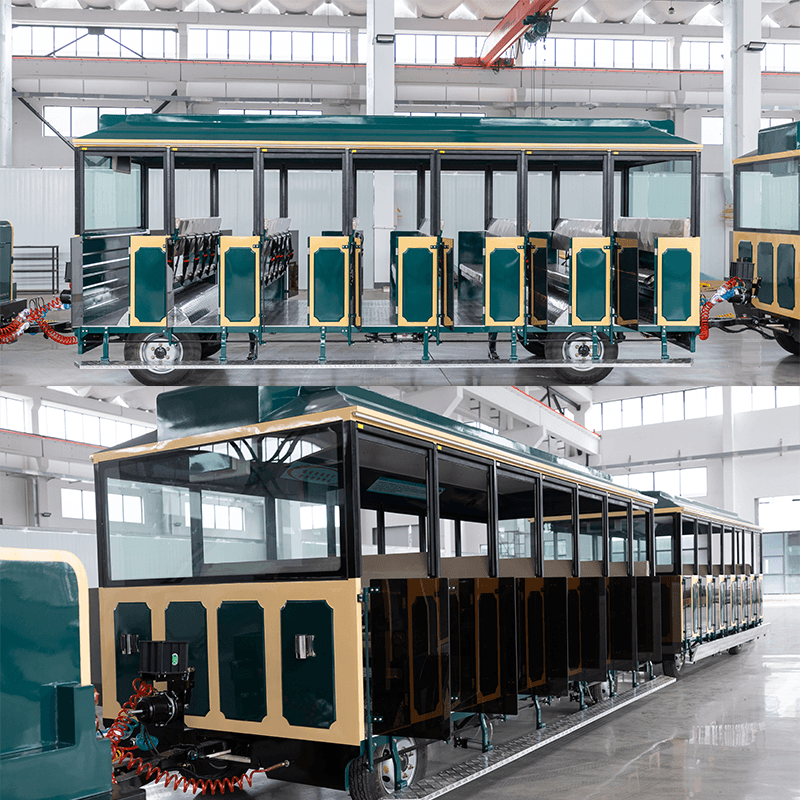

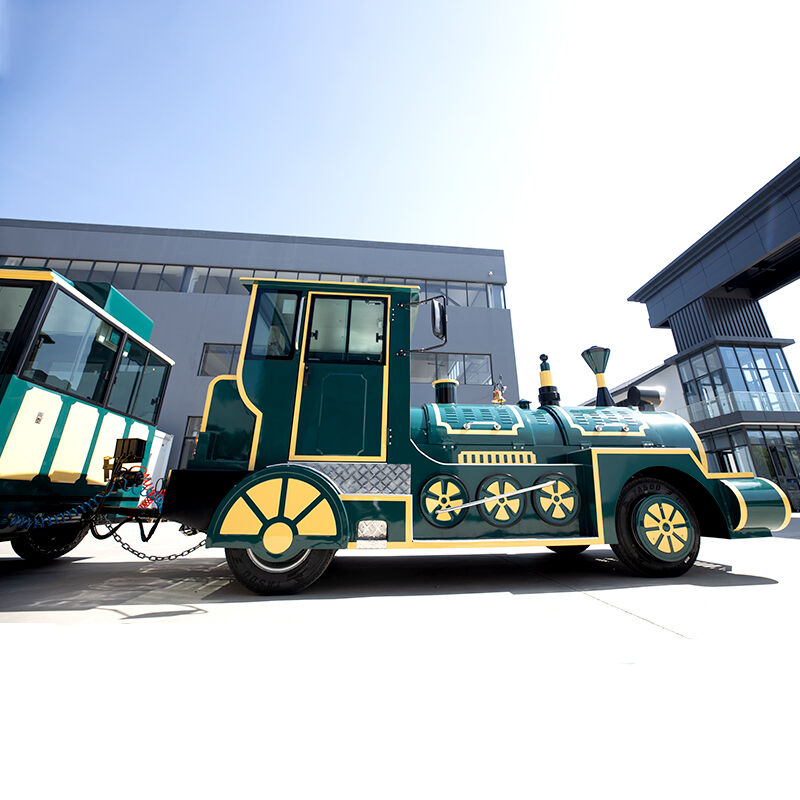

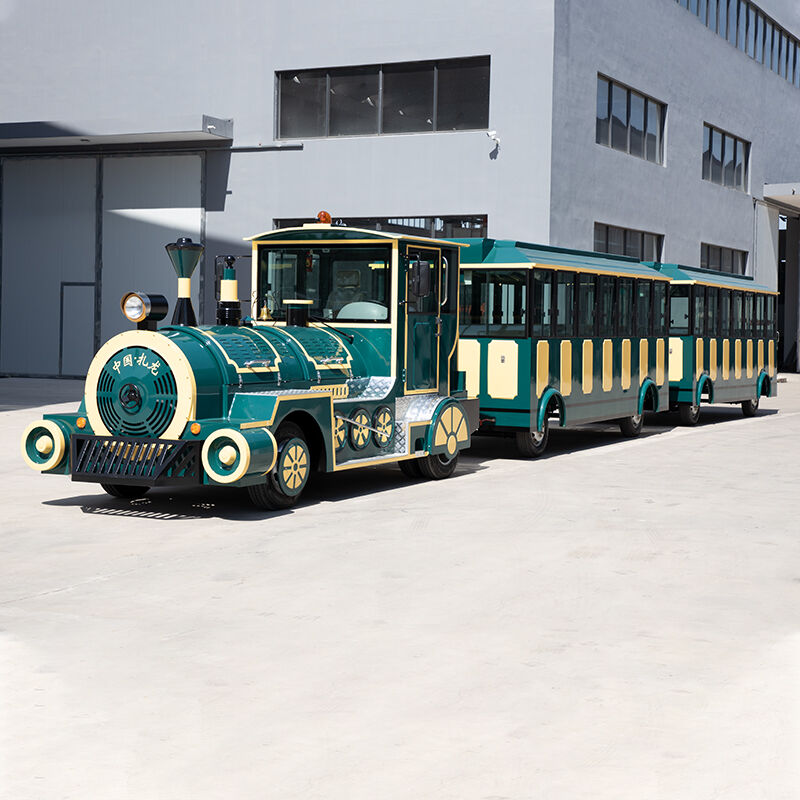

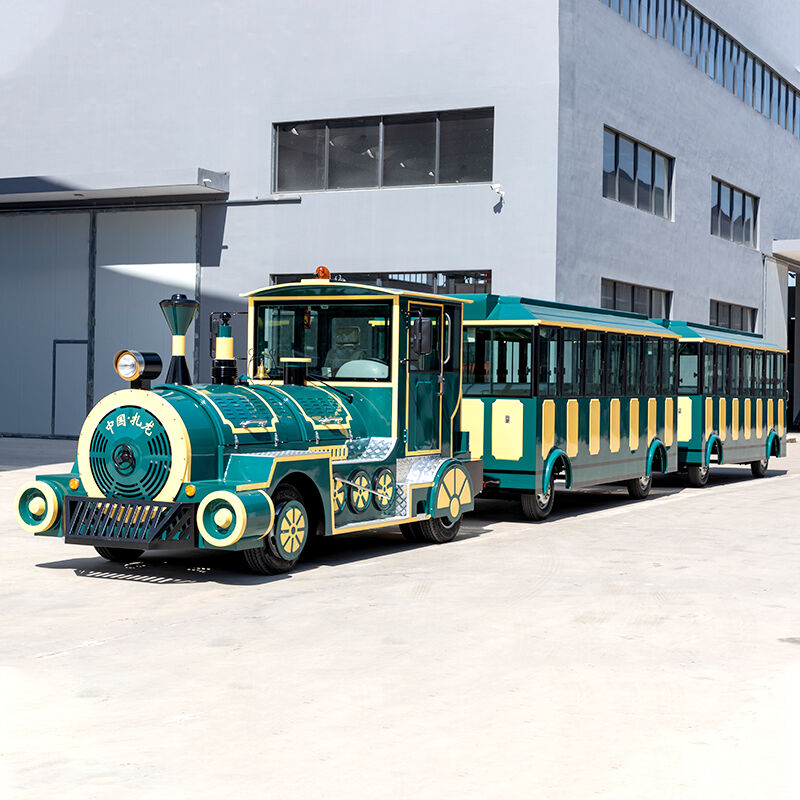

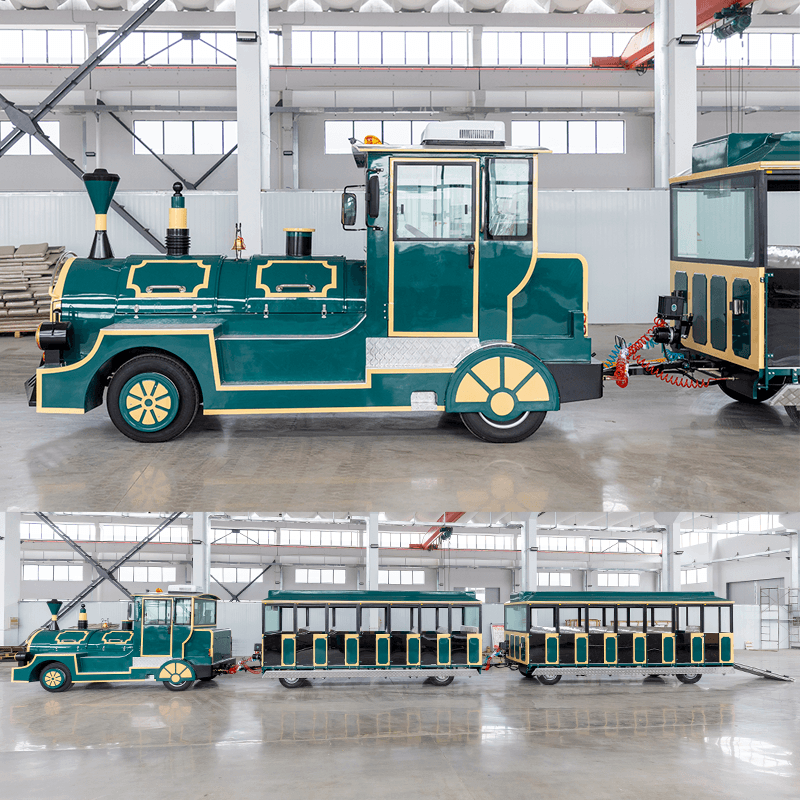

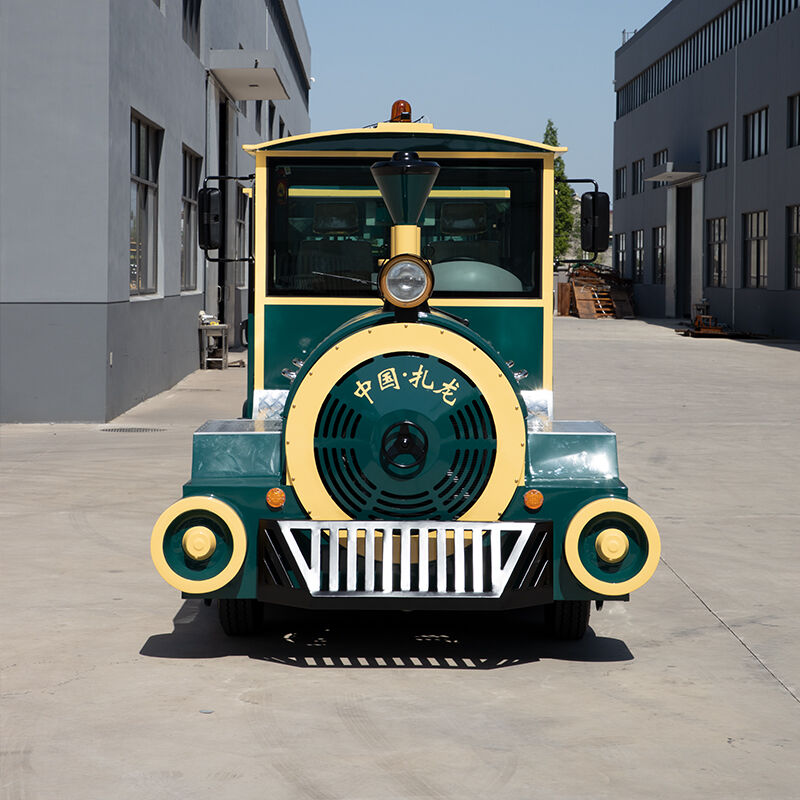

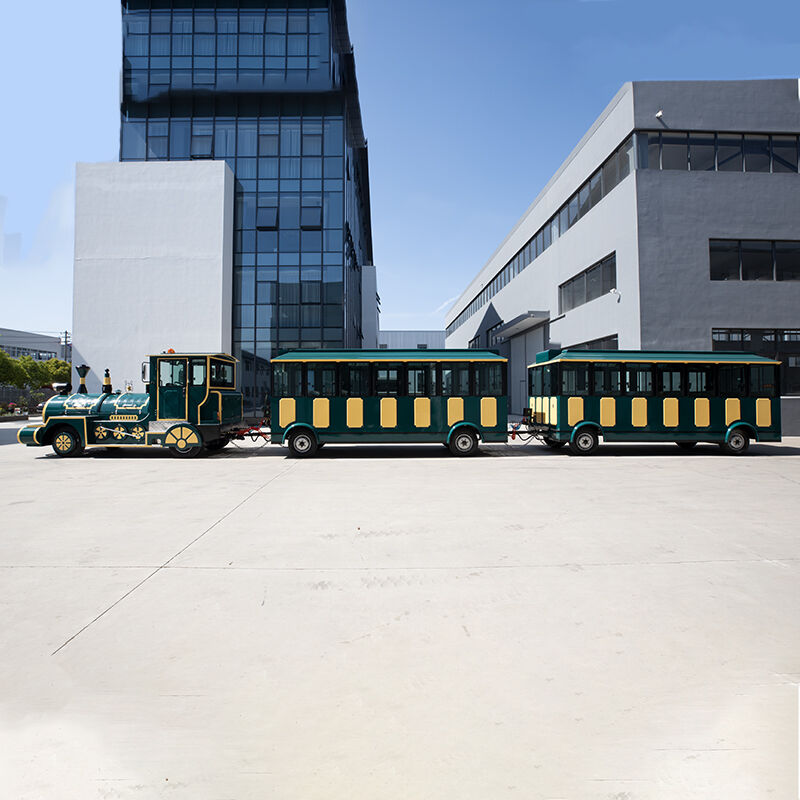

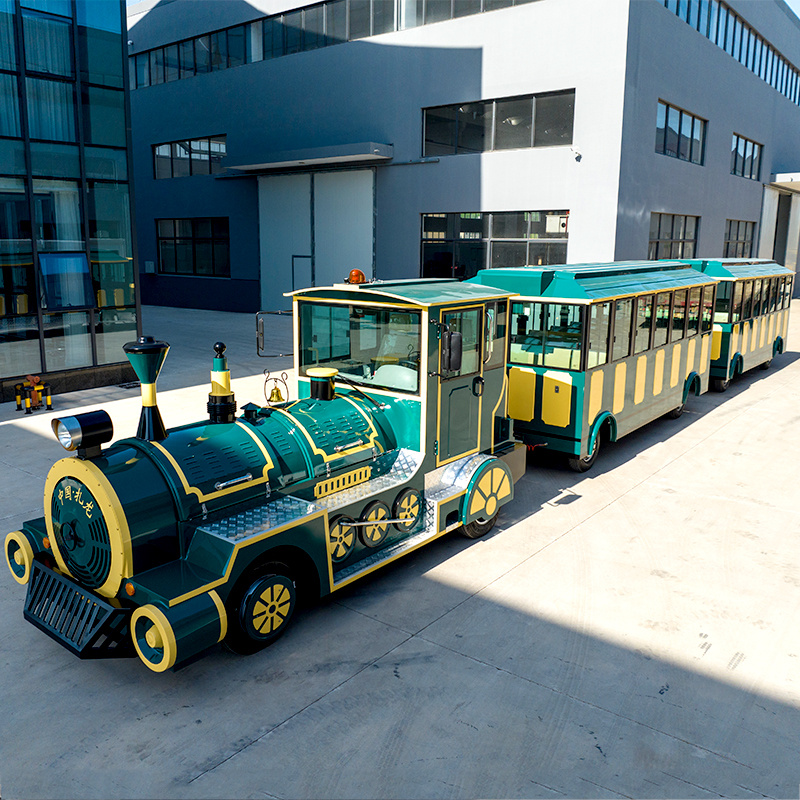

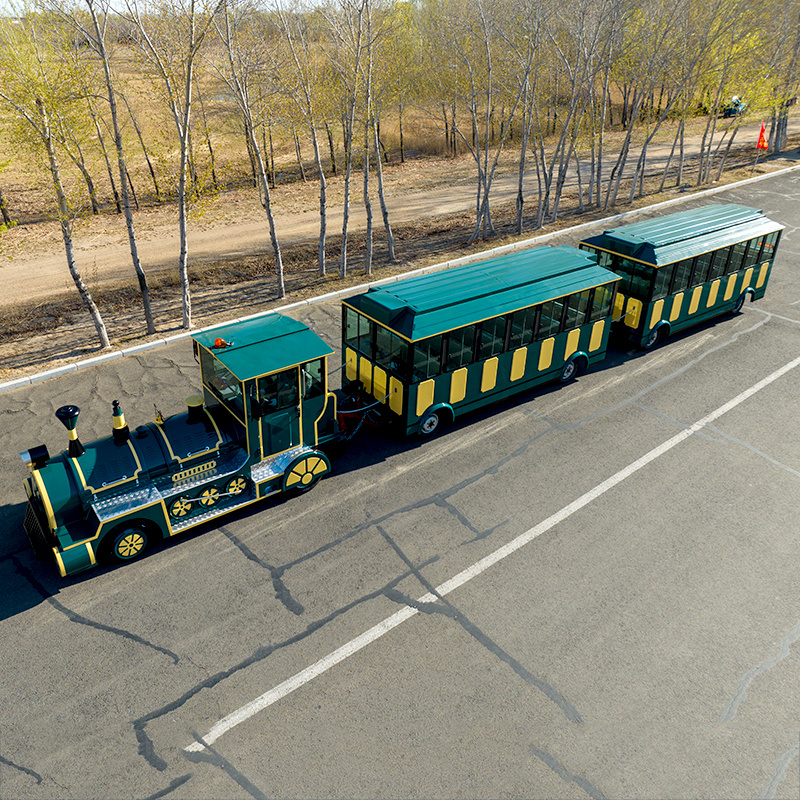

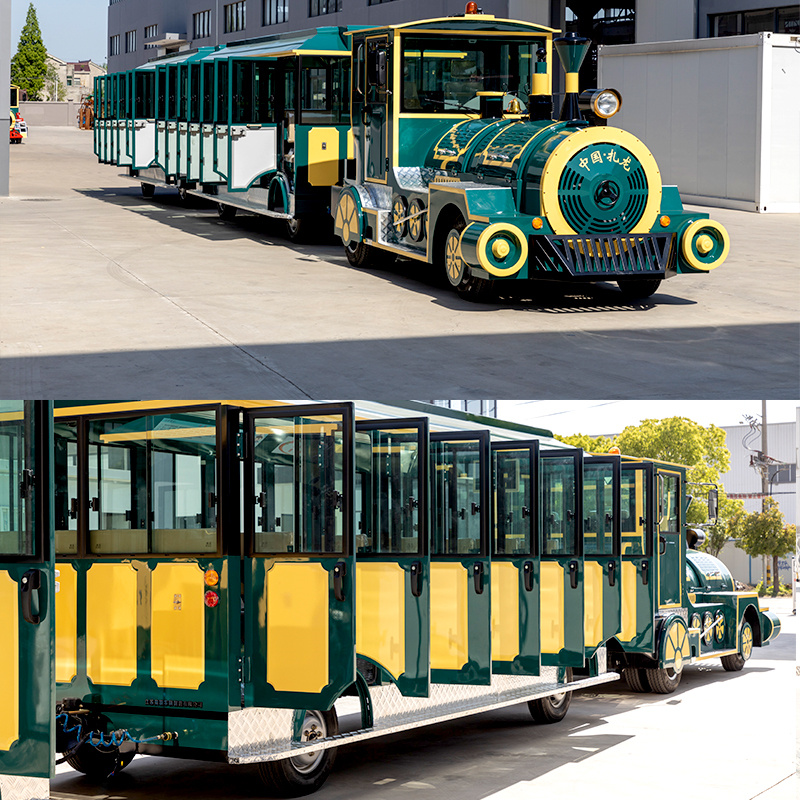

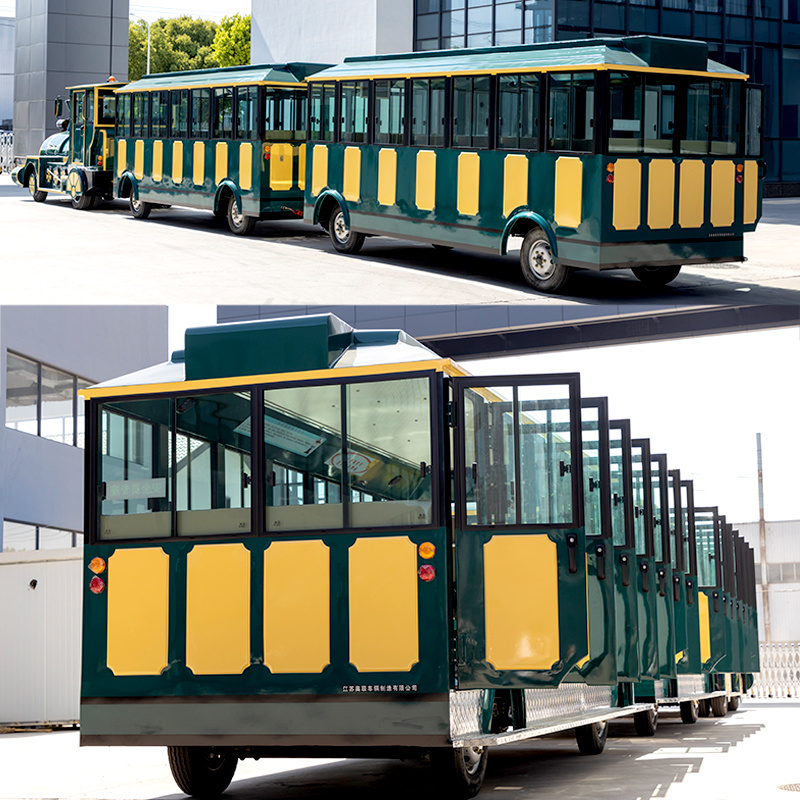

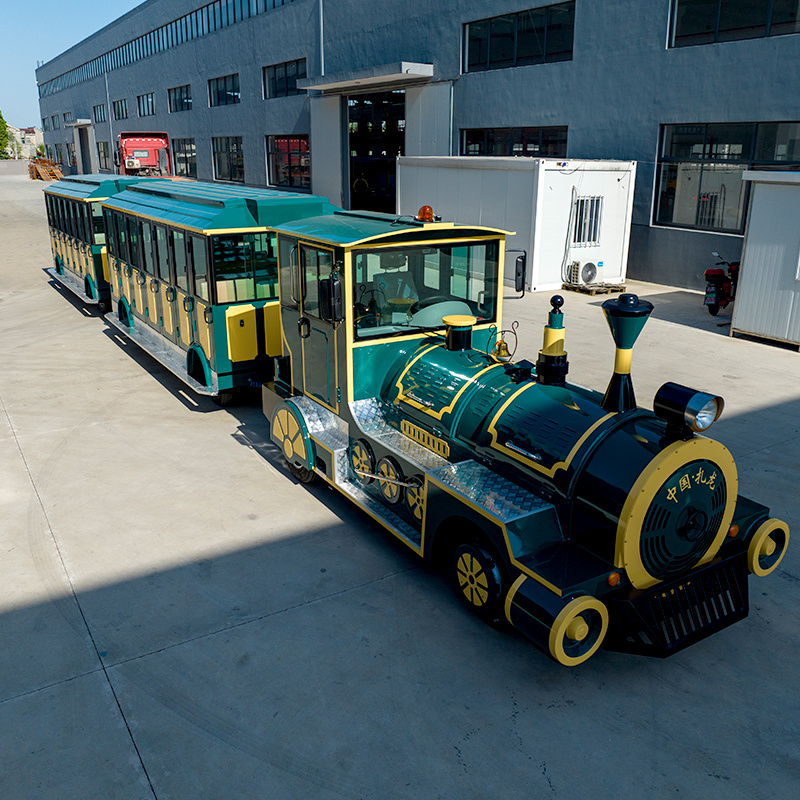

Real Shots & Craftsmanship Details

72座全封闭柴油车.jpg2I1A5425.jpg2I1A5476.jpgmic主图6(f75adda4d2).pngmic主图3(8e67b33144).png2I1A5418.jpg2I1A5461.jpg
